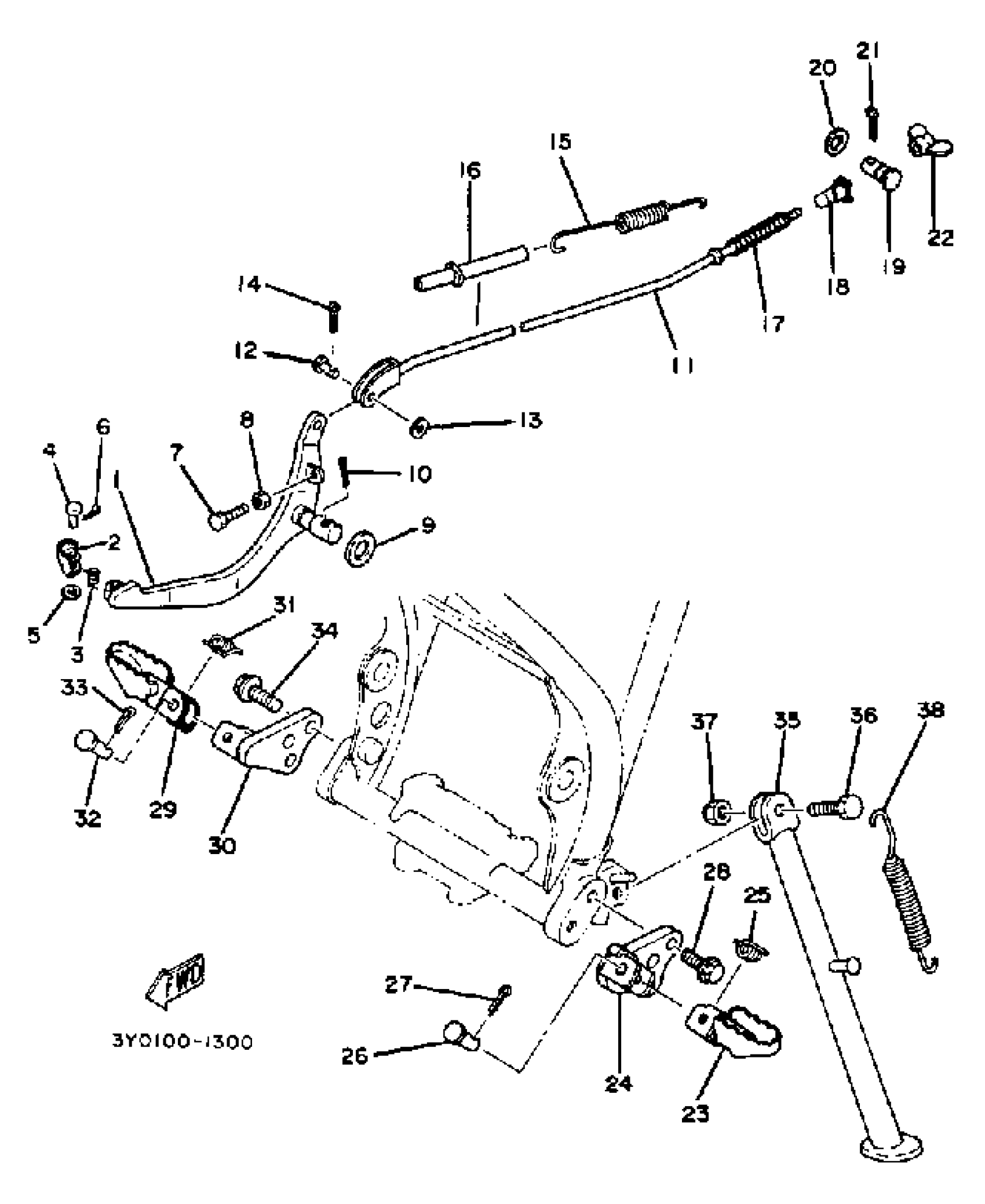

Yamaha TT250J (TT250) 1982 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

3Y3-27211-00-90

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

PIN, COTTER

91490-20025-00

$1.99

7

BOLT (3Y2)

90101-06478-00

$4.15

8

NUT(650)

95380-06700-00

$8.49

9

WASHER PLATE 148272190000

90201-14215-00

$10.49

10

PIN COTTER

91490-30025-00

$3.99

11

ROD, BRAKE

3Y1-27231-00-00

Unavailable

12

PIN, CLEVIS (24X)

90240-06103-00

$7.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

PIN, COTTER

91490-20025-00

$1.99

15

SPRING, TENSION

90506-18289-00

$14.99

16

COVER, SPRING

1M1-27244-00-00

Unavailable

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

PIN, CLEVIS

1W2-27237-00-00

Unavailable

19

PIN, CLEVIS

1W2-27237-00-00

Unavailable

20

WASHER, PLATE (583)

90201-12631-00

Unavailable

21

PIN, COTTER(6L5)

91490-25030-00

Unavailable

22

NUT (25K)

90179-06411-00

Unavailable

23

FOOTREST 1

22W-27411-01-90

Unavailable

24

BRACKET, FOOTREST 1

3Y1-27412-00-R4

Unavailable

25

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

26

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

29

FOOTREST 2

22W-27421-01-90

Unavailable

30

BRACKET, FOOTREST 2

3Y1-27422-00-R4

Unavailable

31

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

32

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

33

PIN, COTTER

91490-25020-00

Unavailable

34

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

35

STAND, SIDE

3Y0-27311-00-33

Unavailable

36

BOLT 122273170100

90109-08032-00

Unavailable

37

NUT

90185-08055-00

Unavailable

38

SPRING (460)

90507-29009-00

Unavailable
