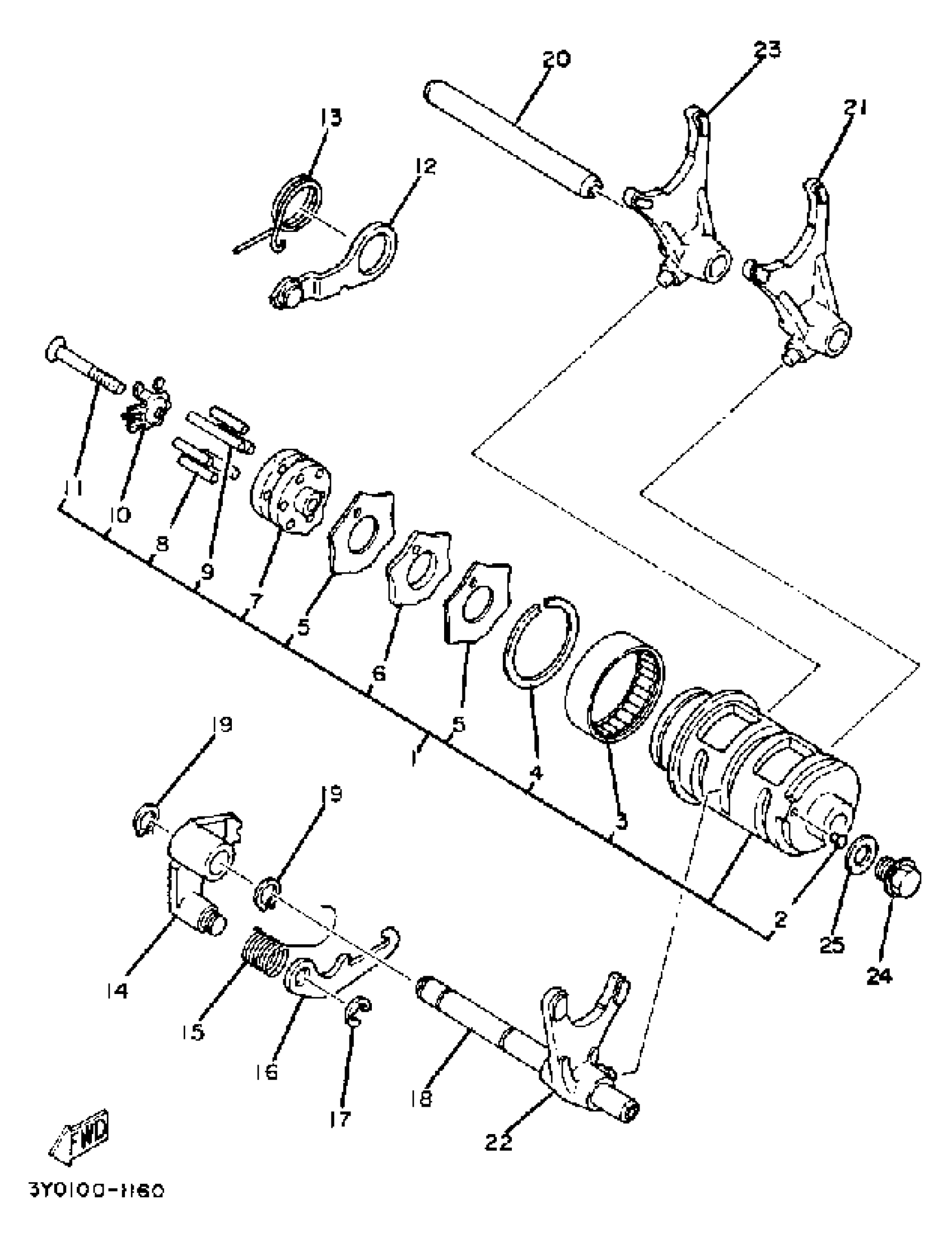

Yamaha TT250J (TT250) 1982 SHIFT CAM - FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

4DN-18540-00-00

Unavailable

2

POINT,NEUTRAL (150610)

136-18542-00-00

$6.99

3

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

$33.99

4

CIRCLIP (371)

93440-34025-00

$7.49

5

GUIDE, PLATE STOPPER

3Y1-18161-00-00

Unavailable

6

PLATE, STOPPER

3Y1-18141-00-00

$6.99

7

SEGMENT

3Y1-18185-01-00

Unavailable

8

PIN, DOWEL (363)

93604-18100-00

$3.55

9

PIN, DOWEL (3Y1)

93604-29151-00

$7.49

10

PLATE, SIDE

2K9-18561-00-00

$6.99

11

SCREW, FLAT

98707-05035-00

$8.49

12

STOPPER LEVER ASSY

3Y1-18140-00-00

$30.99

13

SPRING, TORSION

90508-26434-00

Unavailable

14

LEVER, SHIFT 2

3Y1-18122-00-00

Unavailable

15

SPRING, TORSION (3Y1)

90508-12430-00

$7.49

16

LEVER, CHANGE 3

2K7-18151-00-00

Unavailable

17

CIRCLIP

99080-07600-00

Unavailable

18

BAR, SHIFT FORK GUIDE 1

4DN-18531-00-00

Unavailable

19

CIRCLIP(10W)

99009-10400-00

Unavailable

20

BAR, SHIFT FORK GUIDE 2

4DN-18535-00-00

Unavailable

21

FORK, SHIFT 1

4DN-18511-00-00

Unavailable

22

FORK, SHIFT 2

4DN-18512-00-00

Unavailable

23

FORK, SHIFT 3

4DN-18513-00-00

Unavailable

24

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

25

GASKET (5R6)

90430-10171-00

Unavailable
