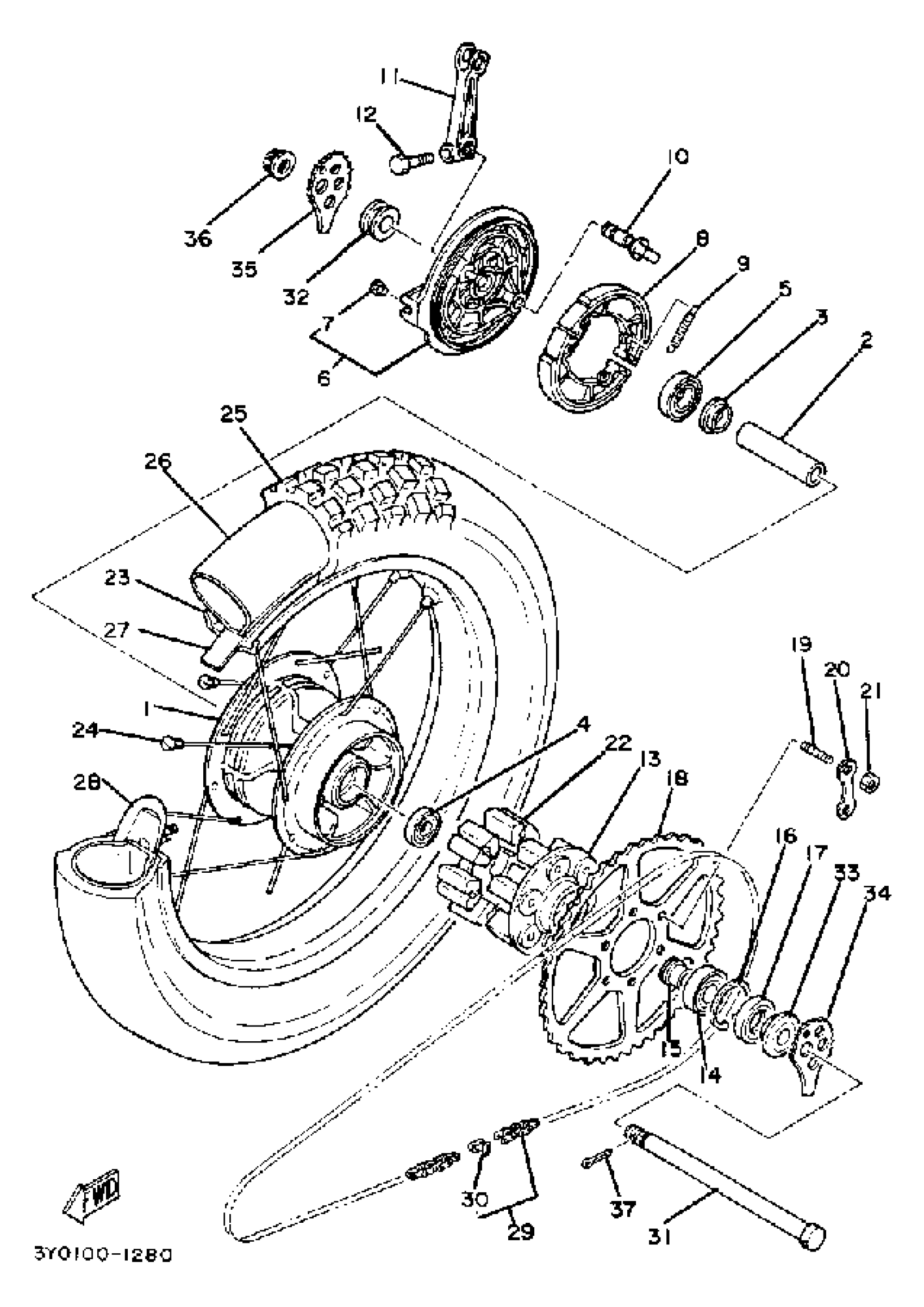

Yamaha TT250J (TT250) 1982 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

3Y1-25311-00-98

Unavailable

2

SPACER

90560-17311-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

BRAKE SHOE PLATE ASSEMBLY

3Y1-25026-00-98

Unavailable

7

GROMMET (397)

90480-10068-00

$8.49

8

BRAKE SHOE KIT

3KG-W253E-00-00

Unavailable

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

4GL-25351-00-00

$68.99

11

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

CLUTCH, HUB

3Y1-25366-00-98

Unavailable

14

BEARING(1YW)

93306-20461-00

$39.99

15

COLLAR, WHEEL

3Y1-25377-00-00

Unavailable

16

CIRCLIP(48Y)

99009-47500-00

Unavailable

17

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

18

SPROCKET, DRIVEN (47T)

30X-25447-51-00

Unavailable

18

SPROCKET, DRIVN 49T

3Y1-25449-10-00

Unavailable

18

SPROCKET DRVN 51T

3Y1-25451-10-00

Unavailable

18

SPROCKET, DRVN, 53T

3Y1-25453-10-00

Unavailable

19

BOLT, STUD (483)

90116-08218-00

Unavailable

20

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

21

NUT (3Y2)

90170-08258-00

Unavailable

22

DAMPER

3Y1-25364-00-00

Unavailable

23

RIM 2.15X17

(94421-17247-00)

Unavailable

24

SPOKE SET, REAR

3Y1-25304-00-00

Unavailable

25

IRC 510X17MXGS45Z1

(94151-17601-00)

Unavailable

26

TUBE

(94251-17163-00)

Unavailable

27

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

27

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

28

SPACER, BEAD

3Y1-25394-00-00

Unavailable

29

520D5-100L DID (94515-20100)

9Y585-20099-00

Unavailable

30

JOINT, CHAIN

94681-68001-00

Unavailable

31

AXLE,WHEEL

150-25381-01-00

Unavailable

32

COLLAR(3SX)

90387-170X9-00

Unavailable

33

COLLAR, WHEEL

3Y1-25383-00-00

Unavailable

34

PULLER, CHAIN 1

3Y1-25388-01-00

Unavailable

35

PULLER, CHAIN 1

3Y1-25388-01-00

Unavailable

36

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

37

PIN, COTTER

91490-30030-00

Unavailable
