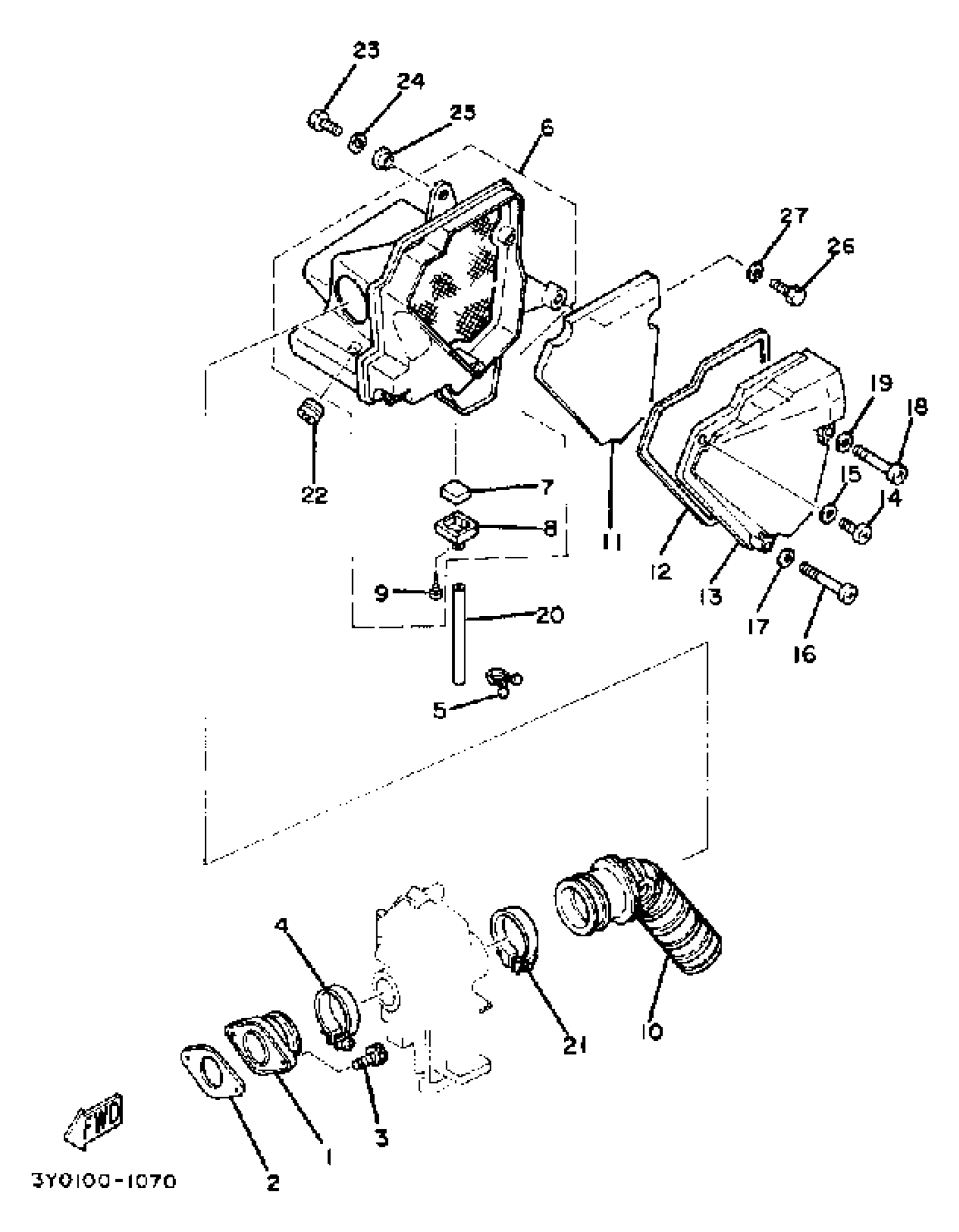

Yamaha TT250J (TT250) 1982 INTAKE Diagram
#
Description
Price
1
JOINT, CARBURETOR 1
3Y1-13586-00-00
Unavailable
3
BOLT,SOCKET
91317-06020-00
Unavailable
6
AIR CLNR CASE ASSEMBLY
3Y0-14401-00-00
Unavailable
8
PIPE
(3Y1-14419-00-00)
Unavailable
9
YBS83-320 SCREW,PANH.TAPPING
97780-30120-00
Unavailable
10
JOINT, AIR CLNR 1
3Y0-14453-00-00
Unavailable
11
ELEMENT, AIR CLNR
3Y0-14451-00-00
Unavailable
13
CAP, CLEANER CASE 2
3Y0-14422-01-00
Unavailable
16
SCREW, PANHED (GC2)
98580-06555-00
Unavailable
18
SCREW, PAN
98507-06050-00
Unavailable
19
WASHER(6TA)
92907-06600-00
Unavailable
20
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
21
HOSE CLAMP ASSY
90450-54008-00
Unavailable
22
GROMMET
(90480-16265-00)
Unavailable
23
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
COLLAR (3L1)
90387-07717-00
Unavailable
26
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
