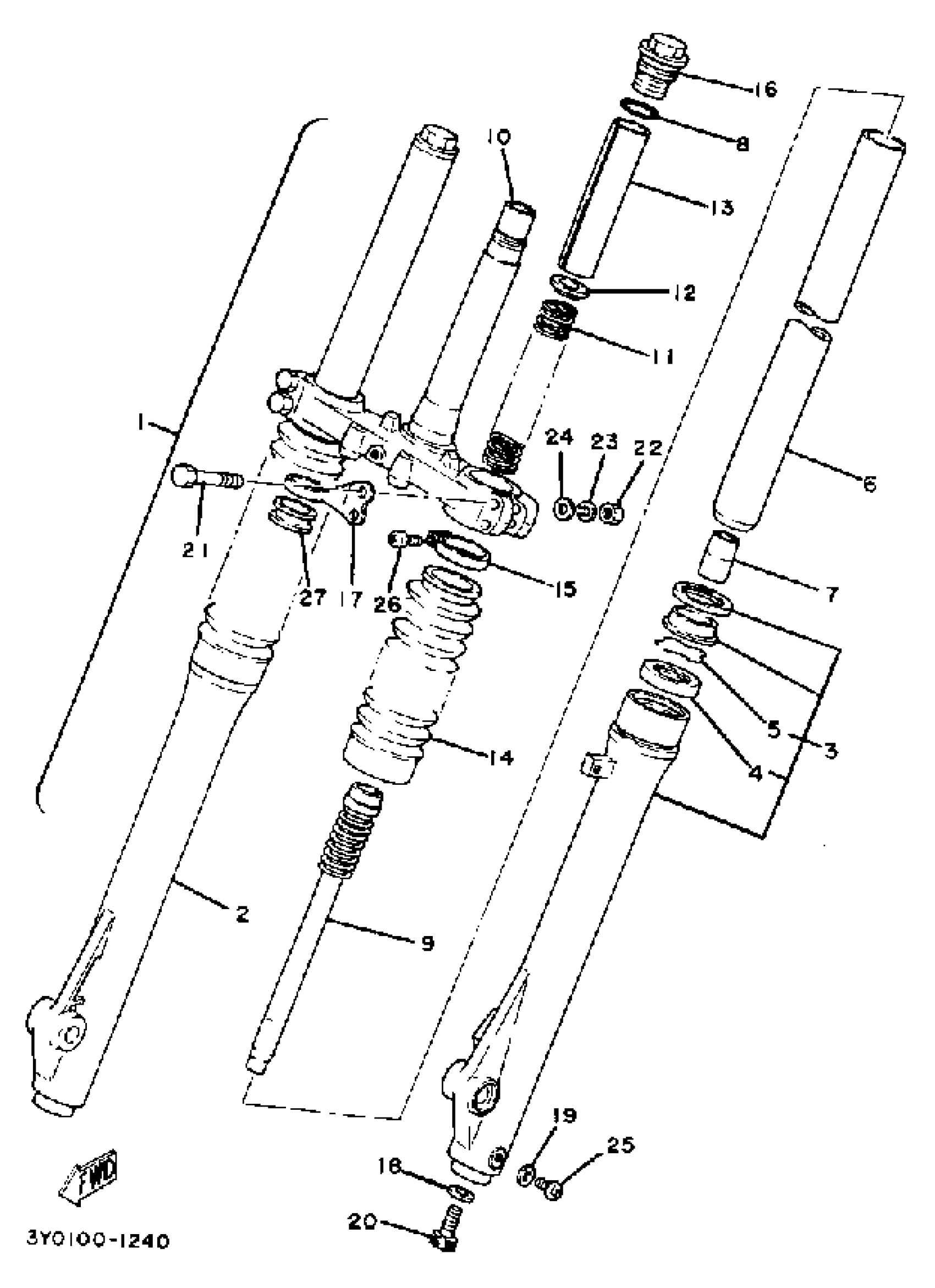

Yamaha TT250J (TT250) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3Y0-23100-00-00)

Unavailable

2

TUBE, OUTER 2

(3Y0-23136-00-38)

Unavailable

3

TUBE, OUTER 1

(3Y0-23126-00-38)

Unavailable

4

OIL SEAL

48Y-23145-00-00

$30.99

5

RING, SNAP

4A1-23156-00-00

$5.49

6

. INNER TUBE 1

3Y0-23110-00-00

Unavailable

7

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

8

O-RING

1W1-23114-L0-00

$9.99

9

CYLINDER, FRTFRK

(3Y0-23170-00-00)

Unavailable

10

UNDER BRACKET

(3Y0-23340-00-38)

Unavailable

11

SPRING, FRONT FORK

(3Y0-23141-00-00)

Unavailable

12

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

13

SPACER

(1W1-23118-L0-00)

Unavailable

14

. BOOT, FRONT FORK

2X3-23191-M0-00

Unavailable

15

BAND, BOOT

341-92090-60-00

$25.99

16

. BOLT, CAP

2X7-23111-00-00

Unavailable

17

. HOLDER, CABLE 1

3Y0-23318-00-00

Unavailable

18

GASKET

509-23158-L0-00

Unavailable

19

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

21

BOLT (1E6)

90101-08340-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

.. WASHER, PLATE

92990-08600-00

Unavailable

25

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

26

SCREW

509-23194-L0-00

Unavailable

27

GUIDE, WIRE

1W1-23389-00-00

Unavailable
