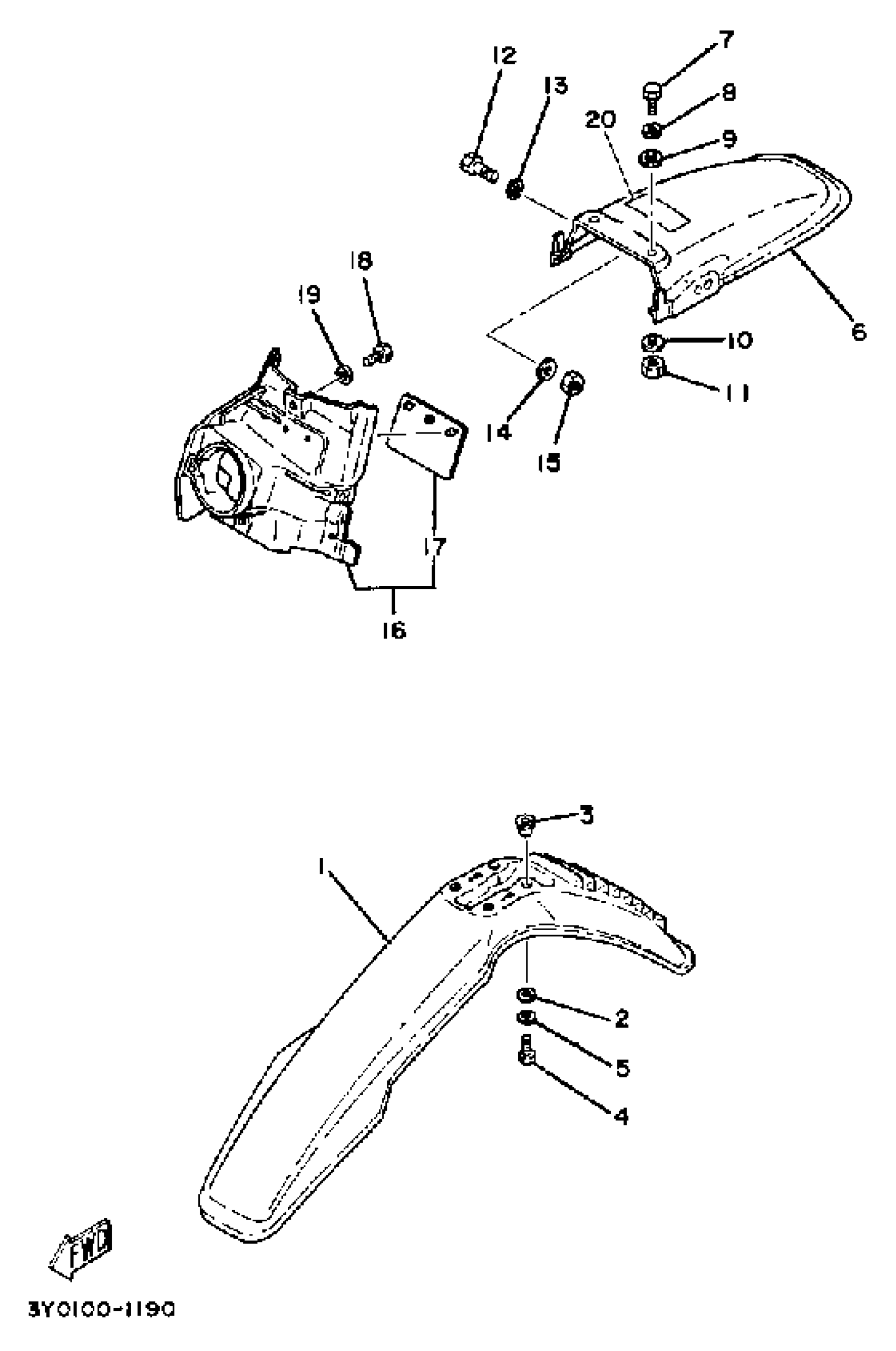

Yamaha TT250J (TT250) 1982 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3Y1-21511-01-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.60

3

COLLAR (3Y2)

90387-07789-00

$9.49

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

FENDER, REAR

3Y0-21611-00-00

$35.99

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

WASHER, PLATE

90201-06380-00

$0.60

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

BOLT, HEXAGON

97013-08020-00

$1.16

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

15

NUT(6L2)

95333-08600-00

$2.49

16

MUD GUARD

3Y1-21620-00-00

Unavailable

17

FLAP

1M1-21621-00-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

19

WASHER, PLATE

90201-06380-00

$0.60

20

LABEL, SAFETY

288-21659-00-00

Unavailable
