1982 Yamaha TT250 (TT250J) Clutch Diagram

← All diagrams

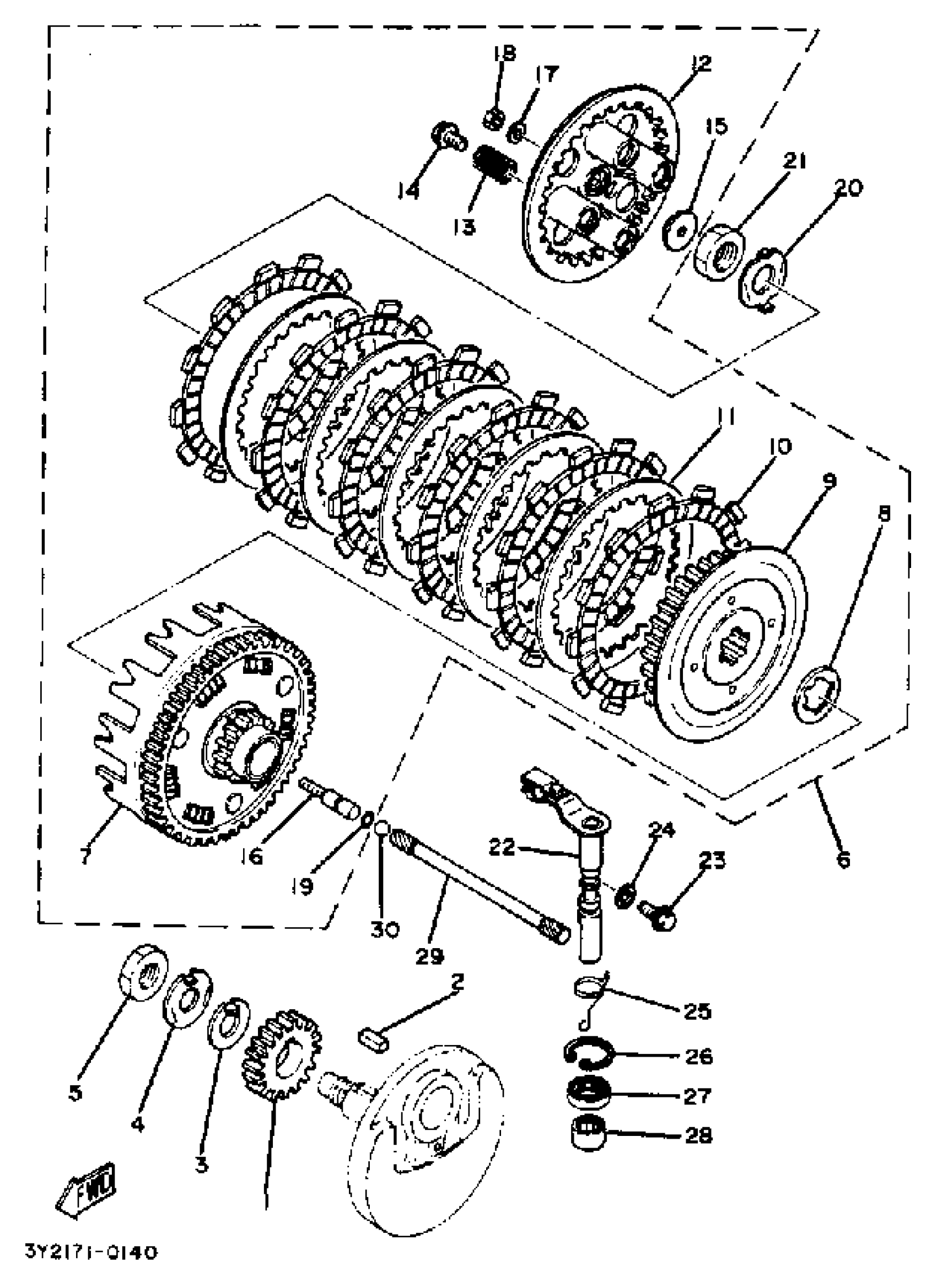

Find the part on the Clutch diagram for your 1982 Yamaha TT250 (TT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha TT250 (TT250J) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

3Y1-16111-01-00

1
Out of stock

2

KEY, STRAIGHT (584)

90282-07023-00

1
Out of stock

3

WASHER, LOCK (3Y1)

90215-16156-00

1
Out of stock

4

WASHER, LOCK (30X)

90215-16222-00

1
Out of stock

5

NUT(24V)

90170-16343-00

1
Out of stock

6

CLUTCH ASSEMBLY

(3Y1-16300-01-00)

1
Out of stock

7

. PRIMARY DRIVEN GEAR COMP (3Y1-16150-01)

3Y1-16150-02-00

1
Out of stock

8

. PLATE, THRUST 1

3Y1-16154-00-00

1
Out of stock

9

BOSS, CLUTCH

3Y1-16371-00-00

—
Out of stock

10

PLATE, FRICTION 1

5Y1-16321-00-00

1
Out of stock

11

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

12

PLATE, PRESSURE 1

3Y1-16351-00-00

1
Out of stock

13

SPRING,COMPRESSION 2561633300

90501-26148-00

1
Out of stock

14

SCREW, WITH WASHER (1W4)

90159-06016-00

1
Out of stock

15

PLATE, PUSH

1W1-16358-01-00

1
Out of stock

16

ROD, PUSH 1

3Y1-16356-01-00

—
Out of stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

18

NUT, HEXAGON

95380-06600-00

1
Out of stock

19

O-RING (26H)

93210-06632-00

—
Out of stock

20

WASHER, LOCK (3Y1)

90215-20159-00

—
Out of stock

21

NUT (34L)

90170-20327-00

—
Out of stock

22

PUSH LEVER ASSY

3Y1-16380-01-00

—
Out of stock

23

SCREW 425163430000

90149-08067-00

—
Out of stock

24

WASHER, PLATE 3411117500

90201-08087-00

—
Out of stock

25

SPRING, TORSION (3Y1)

90508-14433-00

—
Out of stock

26

CIRCLIP (3Y1)

93420-28055-00

—
Out of stock

27

OIL SEAL (3Y1)

93102-14209-00

—
Out of stock

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

—
Out of stock

29

ROD, PUSH 2

3Y1-16357-00-00

1
Out of stock

30

BALL (498)

93511-32027-00

—
Out of stock
