1981 Yamaha TT250 (TT250H) Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

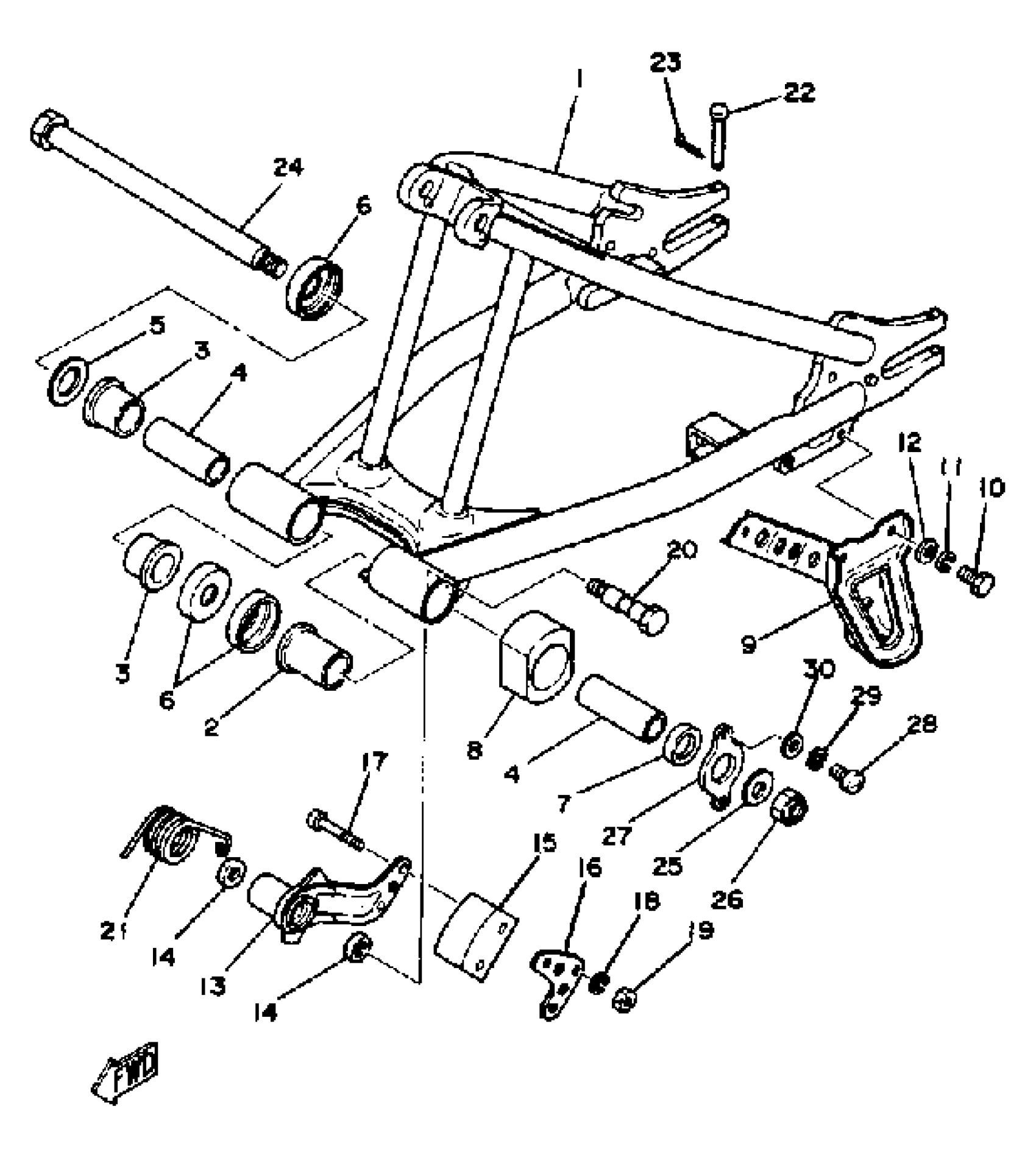

1981 Yamaha TT250 (TT250H) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

3Y0-22110-00-33

1
Out of stock

2

BUSH

3Y1-22184-01-00

1
Out of stock

3

BUSH 1

3Y1-22123-01-00

—
Out of stock

4

BUSH 2

3Y1-22124-01-00

—
Out of stock

5

SHIM,REAR ARM

240-22127-00-00

1
Out of stock

6

COVER, THRUST

322-22128-01-00

1
Out of stock

7

OIL SEAL (20.9X28X4-1W1)

93109-22019-00

1
Out of stock

8

SEAL, GUARD

3Y1-22151-00-00

1
Out of stock

9

CHAIN, GUARD

3Y1-22318-00-00

1
Out of stock

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

11

WASHER, SPRING

92995-06100-00

1
Out of stock

12

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

13

ARM, TENSIONER

3Y1-22179-00-00

1
Out of stock

14

OIL SEAL (2K8)

93109-14021-00

1
Out of stock

15

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

1
Out of stock

16

GUIDE, CHAIN

1W1-22187-00-00

—
Out of stock

17

SCREW, PAN

98507-05040-00

—
Out of stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

—
Out of stock

20

BOLT (1J4)

90109-10483-00

—
Out of stock

21

SPRING, TORSION (1J4)

90508-35350-00

—
Out of stock

22

PIN, CLEVIS

91701-05050-00

1
Out of stock

23

PIN, COTTER

91490-16020-00

1
Out of stock

24

SHAFT, PIVOT

2N6-22141-00-00

—
Out of stock

25

WASHER, PLATE (3X3)

90201-15797-00

—
Out of stock

26

NUT, SELF-LOCKING (1J7)

90185-14070-00

—
Out of stock

27

PLATE

3Y1-21329-00-00

1
Out of stock

28

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

29

WASHER, SPRING

92995-06100-00

1
Out of stock

30

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock
