HANDLEBAR - CABLE

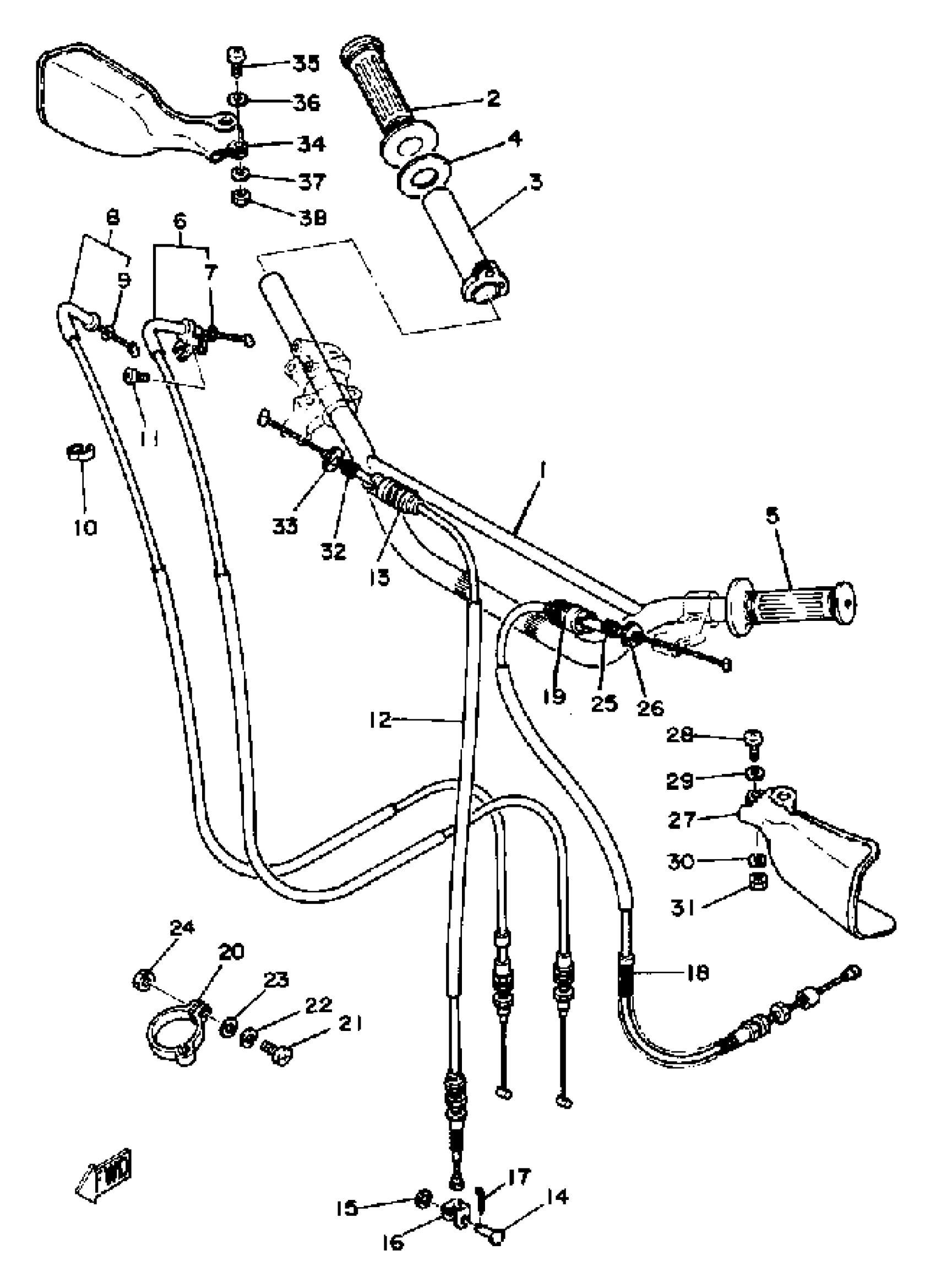

1981 Yamaha TT250 (TT250H) Handlebar - Cable Diagram
Find the part on the Handlebar - Cable diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
GRIP (R.H)
1A0-26242-01-00
3
TUBE, THROTTLE GUIDE
1RF-26243-00-00
5
GRIP, HANDLE (L.H)
1E6-26241-00-00
7
. O-RING
93210-08408-00
9
. O-RING
93210-08408-00
10
CLIP, WIRE 2072639100
90468-15009-00
12
CABLE, BRAKE
3Y0-26341-00-00
15
WASHER, PLATE 1562722600
90201-08083-00
20
BAND
3Y1-26397-00-00
22
YBS67-5 WASHER, SPRING
92990-05100-00
23
WASHER, PLAIN (646)
92990-05600-00
27
GUARD, BRUSH 1
3Y0-26141-00-00
34
GUARD, BRUSH 2
3Y0-26142-00-00
