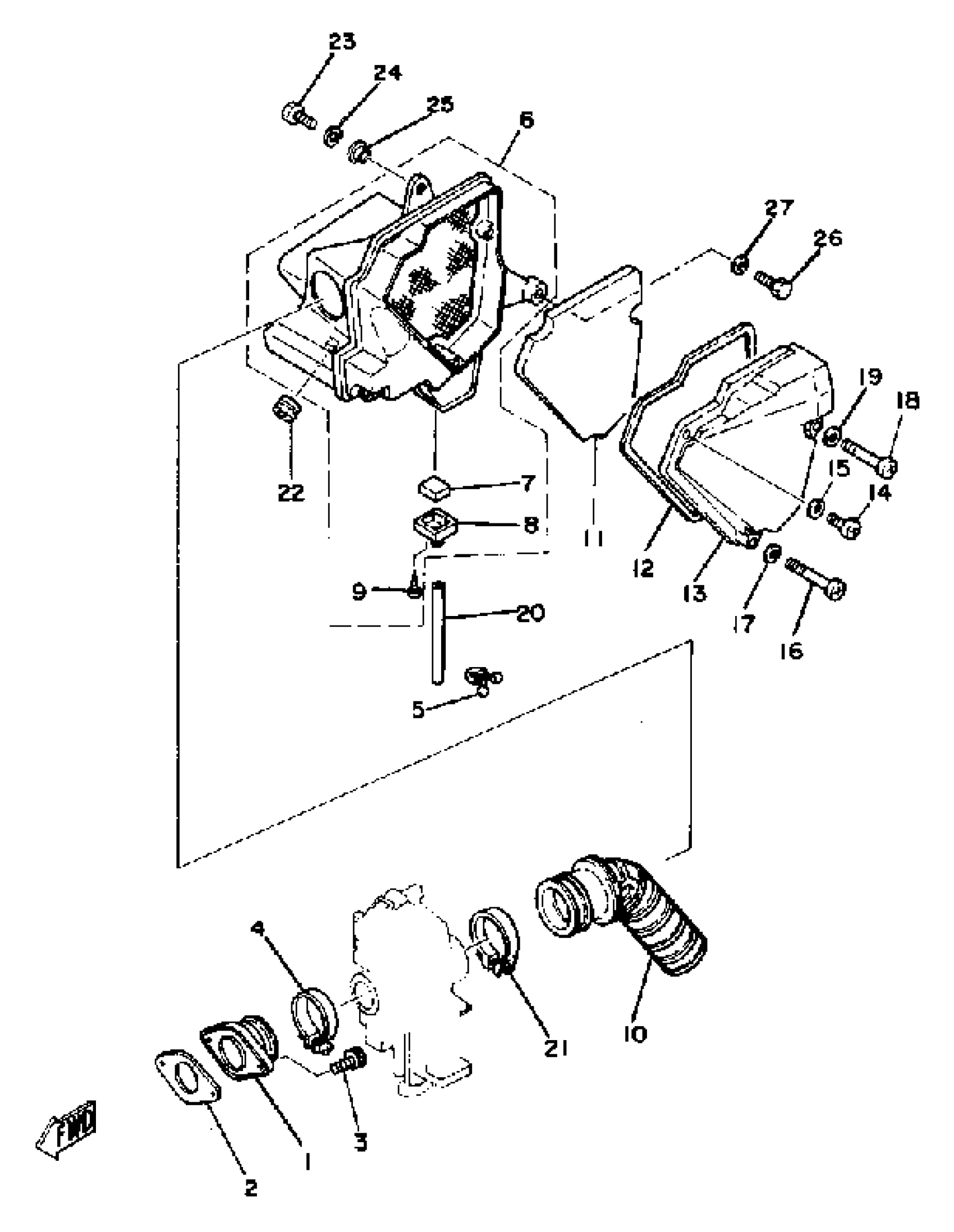

Find the part on the Intake diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TT250 (TT250H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

3Y1-13586-00-00

—

$51.47

In stock

2

GASKET, MANIFOLD

3HT-13556-00-00

1

$9.89

In stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

CLAMP, H0SE (29R)

90460-49248-00

1

$20.77

In stock

5

CLAMP (3Y2)

90464-16039-00

1
Out of stock

6

AIR CLNR CASE ASSEMBLY

3Y0-14401-00-00

1
Out of stock

7

SEAL

36Y-14462-00-00

1
Out of stock

8

PIPE

(3Y1-14419-00-00)

1
Out of stock

9

—

$5.77

In stock

10

JOINT, AIR CLNR 1

3Y0-14453-00-00

1
Out of stock

11

ELEMENT, AIR CLNR

3Y0-14451-00-00

1
Out of stock

12

SEAL

1VJ-14462-00-00

1

$16.08

In stock

13

CAP, CLEANER CASE 2

3Y0-14422-01-00

1
Out of stock

14

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

17

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

18

SCREW, PAN

98507-06050-00

—
Out of stock

19

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

20

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

21

HOSE CLAMP ASSY

90450-54008-00

—
Out of stock

22

GROMMET

(90480-16265-00)

1
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

COLLAR (3L1)

90387-07717-00

—
Out of stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
