1981 Yamaha TT250 (TT250H) Carburetor Diagram

← All diagrams

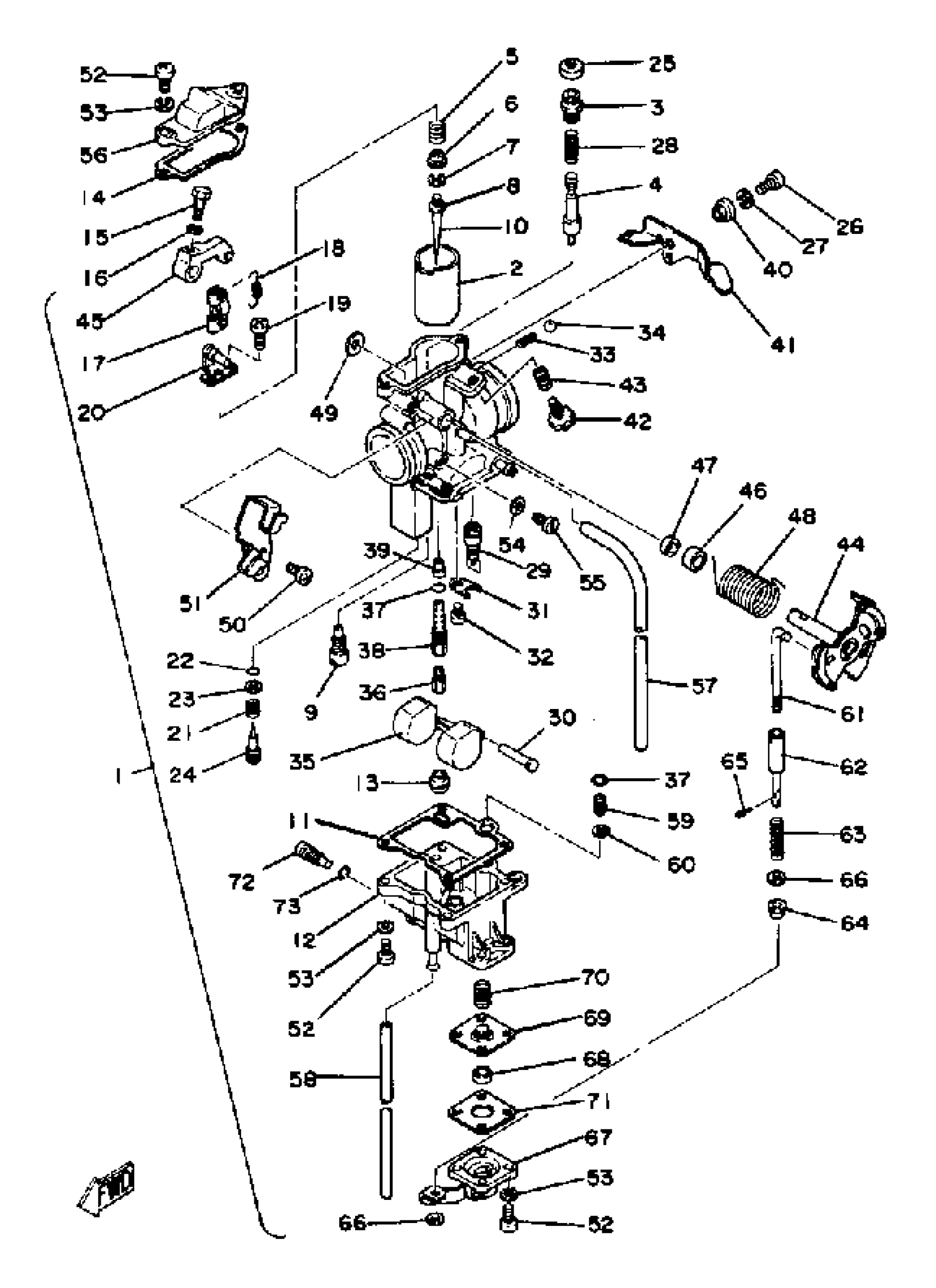

Find the part on the Carburetor diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TT250 (TT250H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

3Y0-14101-00-00

1
Out of stock

2

CARBURETOR ASSEMBLY 1

3Y1-14101-00-00

1
Out of stock

3

CAP, PLUNGER

(3Y1-14174-00-00)

1
Out of stock

4

. PLUNGER, STARTER

3Y1-14171-00-00

1
Out of stock

5

. SPRING

3H1-14589-00-00

1
Out of stock

6

. WASHER

2N6-14227-01-00

1
Out of stock

7

CLIP

3FA-14137-00-00

1

$6.80

In stock

8

. RING

2N6-14918-01-00

1
Out of stock

9

. JET PILOT 175 (3Y1-14142-17-A0)

3Y1-14142-17-00

1
Out of stock

10

NEEDLE

(168-14116-75-00)

1
Out of stock

11

GASKET

3Y1-14184-00-00

—

$39.28

In stock

12

. BODY, FLOAT CHAMBER

3Y1-14981-10-00

1
Out of stock

13

WASHER, MAIN JET

(3Y1-14153-00-00)

1
Out of stock

14

GASKET

3Y1-14536-00-00

—

$46.57

In stock

15

SCREW

(3Y1-14592-00-00)

1
Out of stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

LEVER

(3Y1-14276-00-00)

1
Out of stock

18

SPRING

(3Y1-14275-00-00)

1
Out of stock

19

SCREW

(3Y1-24453-00-00)

1
Out of stock

20

BRACKET 1

(3Y1-14291-00-00)

1
Out of stock

21

. SPRING, AIR ADJUSTING

3F7-14134-00-00

1
Out of stock

22

O-RING, PILOT SCREW

3H1-14147-00-00

—

$7.51

In stock

23

WASHER, PILOT SCREW

3H1-14962-00-00

—

$6.43

In stock

24

. PILOT SCREW SET

24U-14105-00-00

1
Out of stock

25

. COVER, PLUNGER

3A3-14173-00-00

1
Out of stock

26

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

29

NEEDLE VALVE ASSY

2H0-14190-20-00

—

$35.06

In stock

30

PIN, FLOAT

537-14186-00-00

—
Out of stock

31

. PLATE

2H0-14146-00-00

1
Out of stock

32

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

33

SPRING

583-14589-00-00

—

$4.74

In stock

34

BALL

93501-08001-00

—

$0.97

In stock

35

. FLOAT

3H1-14185-00-00

1
Out of stock

36

JET, MAIN #160

137-14143-32-00

—

$8.02

In stock

36

JET, MAIN (#165)

137-14143-33-00

—

$6.31

In stock

36

JET, MAIN #170

137-14143-34-00

—

$6.51

In stock

37

O-RING

583-14561-00-00

—

$4.74

In stock

38

. PIPE

3H1-14148-00-00

1
Out of stock

39

NOZZLE, MAIN

(3Y0-14141-34-00)

1
Out of stock

40

. NUT

583-14594-00-00

1
Out of stock

41

. LEVER STARTER 1

3Y1-14175-00-00

1
Out of stock

42

. THROTTLE SCREW SET

24U-14103-00-00

1
Out of stock

43

. , SPRING, THROTTLE STOP

3F7-14934-00-00

1
Out of stock

44

. SHAFT, THROTTLE LEVER

3Y1-14215-00-00

1
Out of stock

45

BRACKET 2

(3Y1-14292-00-00)

1
Out of stock

46

COLLAR

(3F7-14265-00-00)

1
Out of stock

47

SEAL

2A2-14997-00-00

—
Out of stock

48

. SPRING, THROTTLE VALVE

3Y1-14131-00-00

1
Out of stock

49

WASHER (3H1)

1A8-14953-00-00

—

$3.69

In stock

50

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

51

. BRACKET, THROTTLE

3Y1-14571-00-00

1
Out of stock

52

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

53

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

54

.. WASHER, PLUG SCREW

584-14956-00-00

1
Out of stock

55

. PLUG, SCREW

2F5-14115-00-00

1
Out of stock

56

TOP, MIXING CHAMBER

(3Y1-14158-00-00)

1
Out of stock

57

PIPE

26H-14197-01-00

—

$34.32

In stock

58

HOSE

88R-14987-00-00

1
Out of stock

59

. VALVE, CHECK SEAT

2H0-14272-00-00

1
Out of stock

60

. WASHER, NEEDLE VALVE

2H0-14195-00-00

1
Out of stock

61

. ROD

3Y1-14992-00-00

1
Out of stock

62

. ROD

2H0-14992-00-00

1
Out of stock

63

. SPRING, DIAPHRAGM

3Y1-14933-00-00

1
Out of stock

64

. COLLAR

2H0-14534-00-00

1
Out of stock

65

. PIN, COTTER

91401-10015-00

1
Out of stock

66

. WASHER

2H0-14227-00-00

1
Out of stock

67

LEVER, STARTER

(3Y1-14905-00-00)

1
Out of stock

68

. RING

3Y0-14918-00-00

1
Out of stock

69

DIAPHRAGM ASSY

3Y1-14940-00-00

—

$40.00

In stock

70

. SPRING

3Y1-14589-00-00

1
Out of stock

71

. SEAT, SPRING

3Y1-14936-00-00

1
Out of stock

72

SCREW

2L1-14191-00-00

—
Out of stock

73

O-RING

214-14147-00-00

—
Out of stock
