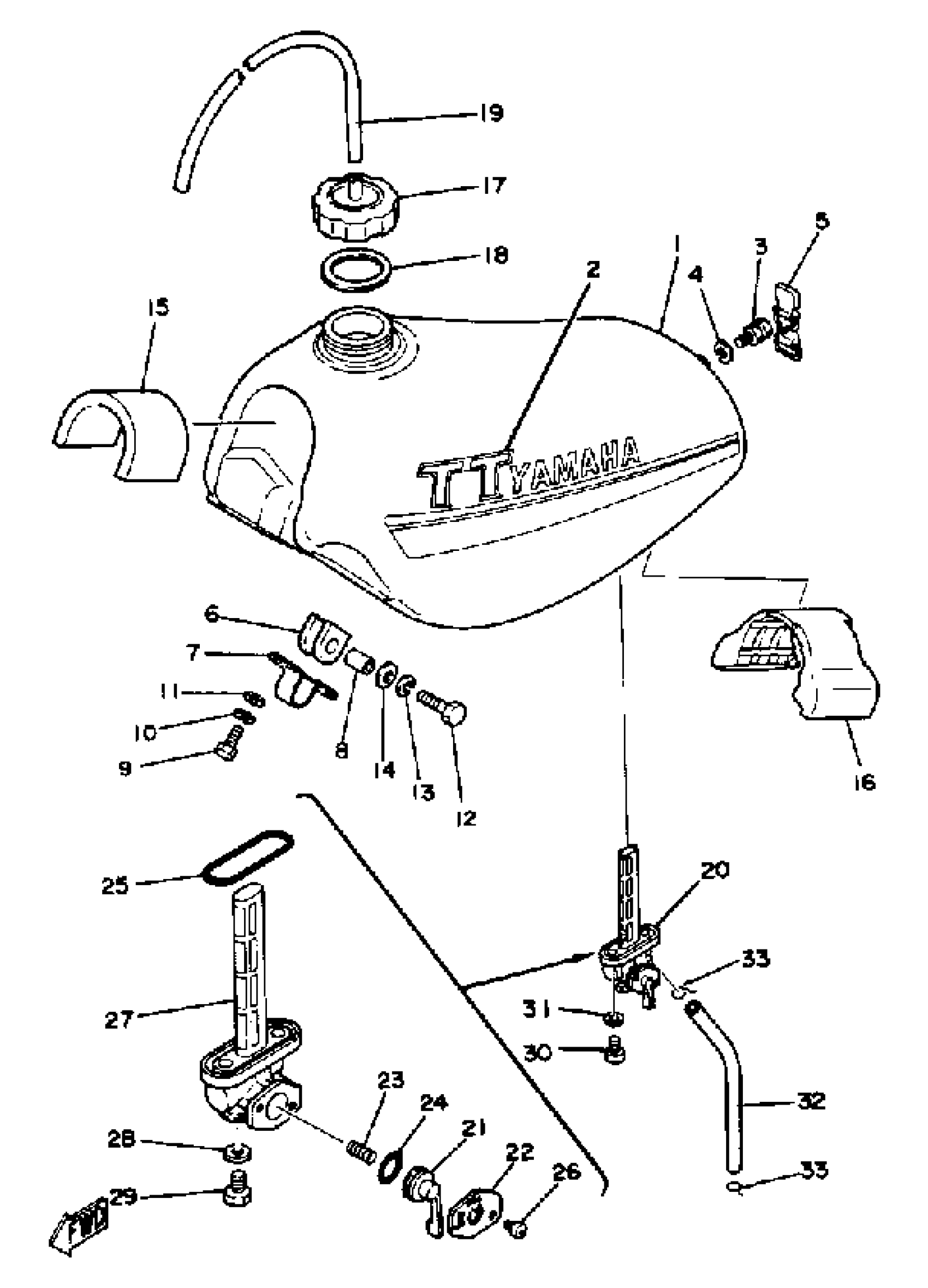

Yamaha TT250H (TT250) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3Y0-24110-00-00

Unavailable

2

GRAPHIC SET

(3Y0-24240-10-00)

Unavailable

3

HOOK TANK FITTING

3Y0-2411L-00-00

Unavailable

4

WASHER, SPRING

92907-06100-00

$4.25

5

BAND, TNK FITTING 1

3Y0-24173-00-00

Unavailable

6

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

7

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

8

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

9

BOLT (661)

97013-06012-00

$5.60

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

BOLT(3RV)

97014-06035-00

$2.75

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE

90201-06086-00

$7.49

15

DAMPER, LOCATING 3

3Y0-24183-00-00

$23.99

16

DAMPER, LOCATING 2

(3Y0-24182-00-00)

Unavailable

17

BODY, CAP

1W1-24611-00-00

Unavailable

18

PACKING, CAP

1W1-24612-00-00

Unavailable

19

HOSE (L600)

90445-083J5-00

Unavailable

20

FUEL COCK ASSY 1

23F-24500-20-00

Unavailable

21

FUEL COCK ASSY 1

23F-24500-20-00

Unavailable

22

PLATE, LVR FITTING

(3Y1-24525-00-00)

Unavailable

23

. SPRING

2W6-24529-00-00

Unavailable

24

O-RING

2N3-24528-00-00

Unavailable

25

O-RING

2W6-24512-00-00

Unavailable

26

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

27

NET, FILTER 1

3Y1-24514-00-00

Unavailable

28

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

29

. PLUG, DRAIN

2G2-24543-00-00

Unavailable

30

SCREW 256241430000

90149-06011-00

Unavailable

31

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

32

HOSE

(90445-10490-00)

Unavailable

33

CLIP

90467-090A2-00

Unavailable
