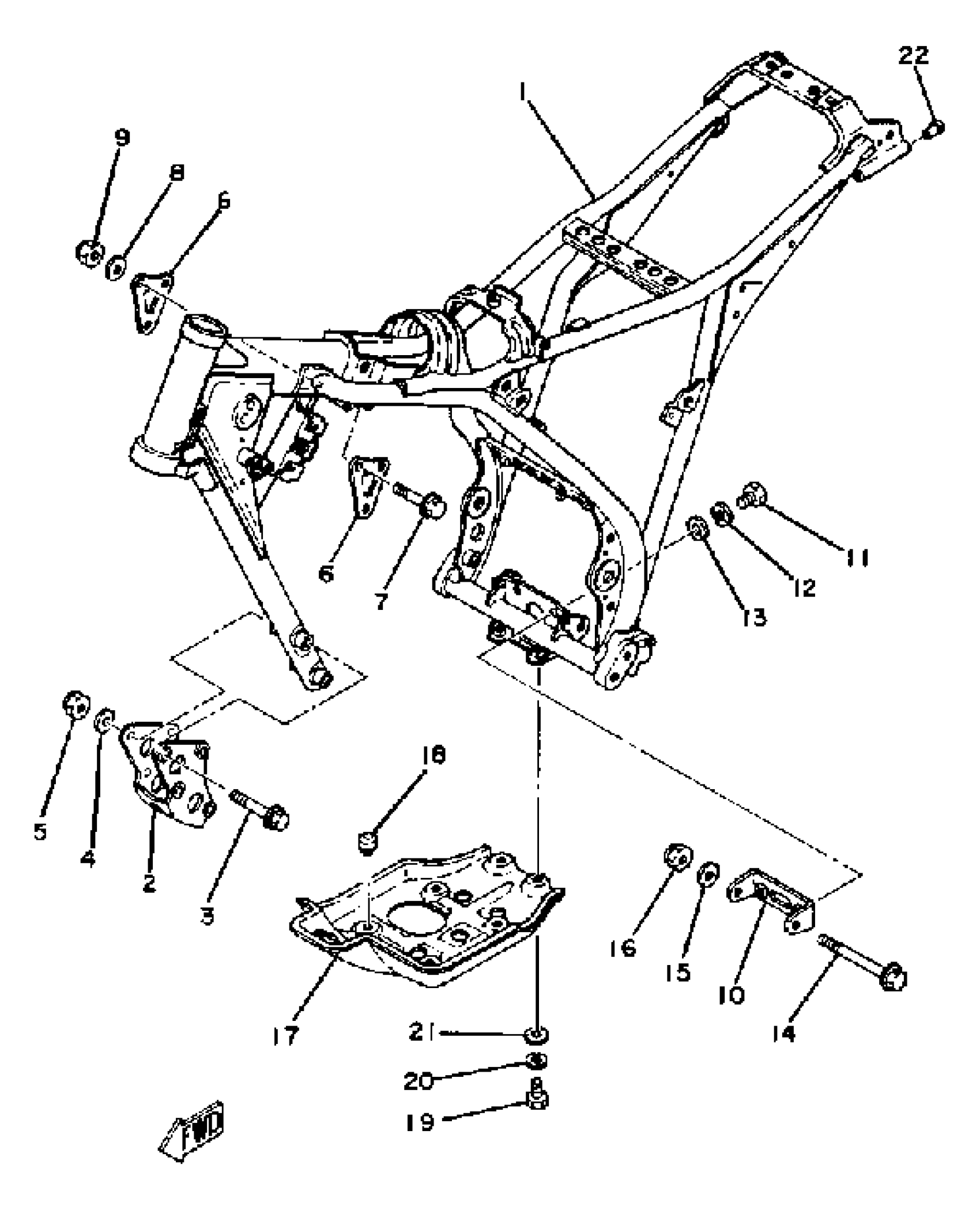

Yamaha TT250H (TT250) 1981 FRAME Diagram
#
Description
Price
1
FRAME COMP. (3Y0)
(99999-01267-00)
Unavailable
2
STAY, ENGINE 3
(3Y1-21316-00-00)
Unavailable
6
STAY, ENGINE 2
3Y1-21315-00-00
Unavailable
10
PLATE, ENGINE ADJUSTING
3Y1-21475-00-00
Unavailable
13
.. WASHER, PLATE
92990-08600-00
Unavailable
17
PROTECTOR, ENGINE
3Y0-21471-00-00
Unavailable
18
STOPPER
3Y1-24768-00-00
Unavailable
19
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
WASHER, PLAIN (646)
92990-06600-00
Unavailable
22
PLUG(EU0)
90605-50201-00
Unavailable
