Description

Price

1

CDI MAGNETO ASSEMBLY

3Y0-85500-90-00

Unavailable

2

ROTOR ASSEMBLY

(3Y0-85550-20-00)

Unavailable

3

. BASE, MAGNETO

3Y1-85509-20-00

Unavailable

4

. COIL SOURCE 2

31G-85512-20-00

Unavailable

5

. COIL, PULSER

3Y1-85580-20-00

Unavailable

6

LEAD WIRE ASSEMBLY

(3Y0-85515-20-00)

Unavailable

7

CLAMP, READ

445-81328-20-00

Unavailable

8

CLAMP, LEAD

(3Y1-85528-20-00)

Unavailable

9

SCREW, PAN HEAD

98580-05020-00

Unavailable

10

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

SCREW PAN HEAD

98580-06020-00

$8.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

OIL SEAL (3Y1)

93102-25226-00

$14.99

15

O-RING (3Y2)

93211-19413-00

$15.99

16

CDI UNIT ASSEMBLY

3Y1-85540-20-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

CLAMP

(90462-08068-00)

Unavailable

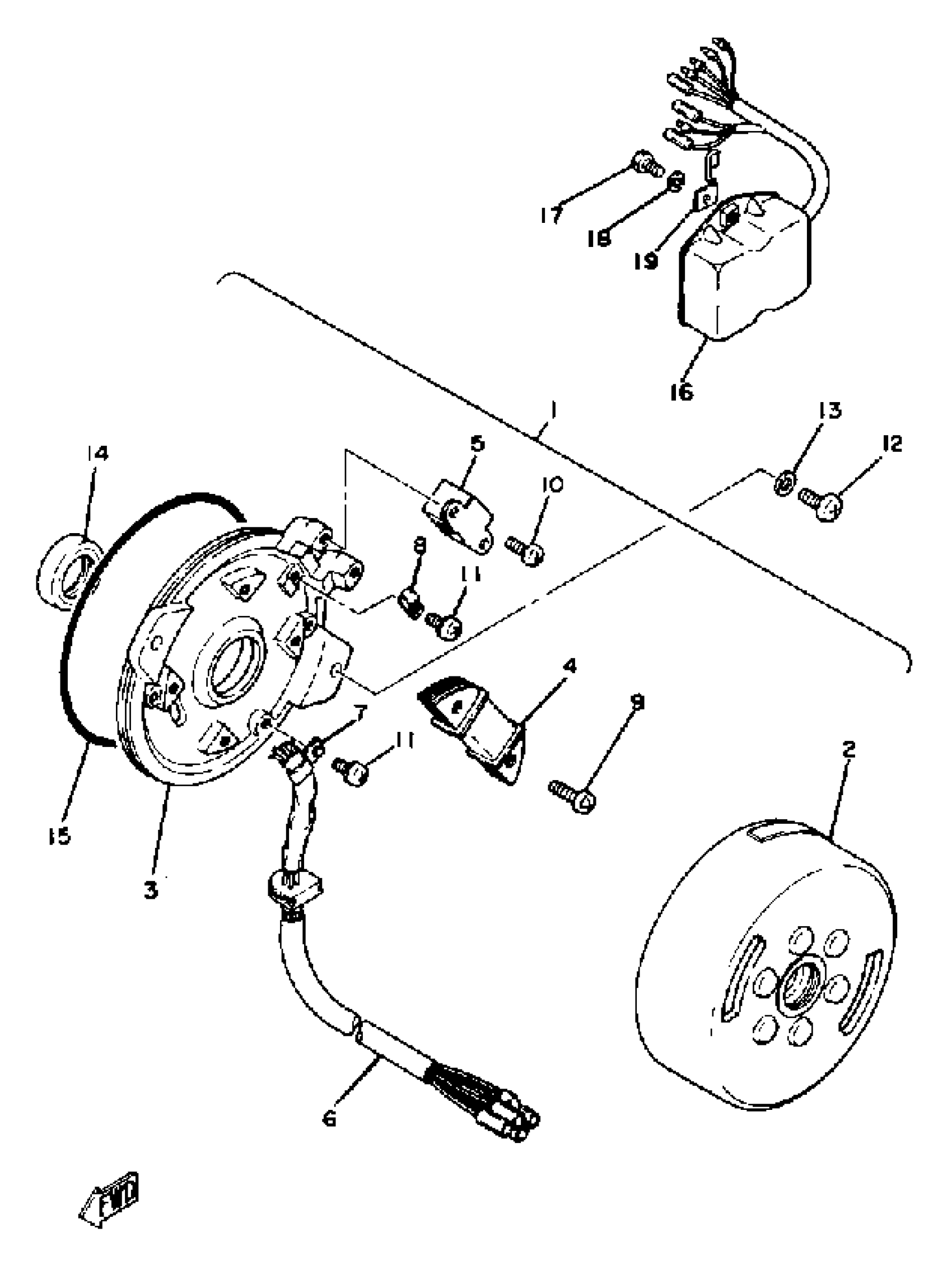

Yamaha TT250H (TT250) 1981 C - D - I MAGNETO Diagram

CDI MAGNETO ASSEMBLY

ROTOR ASSEMBLY

. BASE, MAGNETO

. COIL SOURCE 2

. COIL, PULSER

LEAD WIRE ASSEMBLY

CLAMP, READ

CLAMP, LEAD

SCREW, PAN HEAD

SCREW,PAN HEAD (646)

SCREW, PAN HEAD(3XP)

SCREW PAN HEAD

YBS66-6 WASHER, PLAIN

OIL SEAL (3Y1)

O-RING (3Y2)

CDI UNIT ASSEMBLY

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

CLAMP
