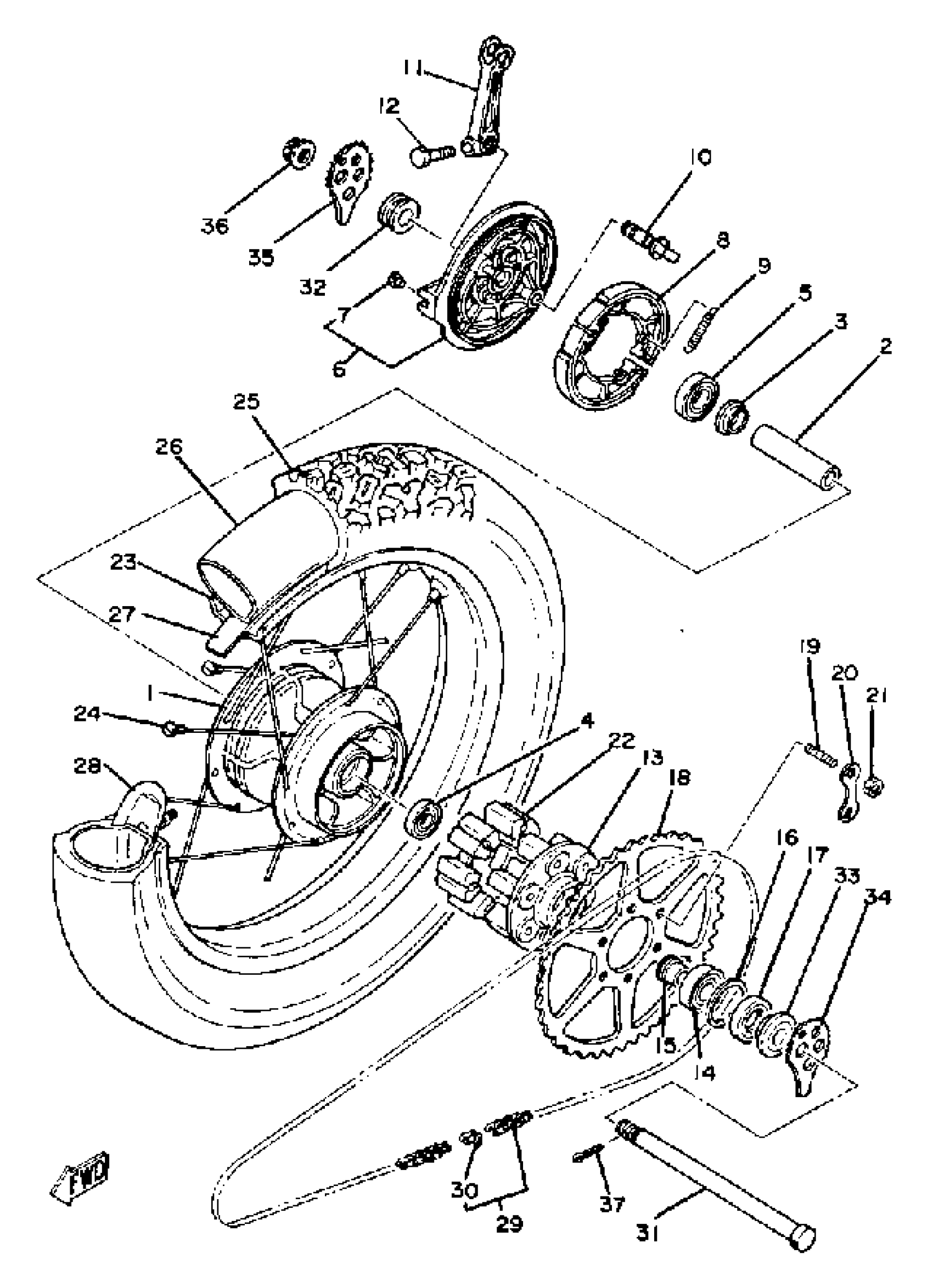

Yamaha TT250G (TT250) 1980 REAR WHEEL Diagram

HUB, REAR

3Y1-25311-00-98

Unavailable

SPACER

90560-17311-00

Unavailable

FLANGE, SPACER

146-25315-00-00

$7.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRAKE SHOE PLATE ASSEMBLY

3Y1-25026-00-98

Unavailable

GROMMET (397)

90480-10068-00

$8.49

BRAKE SHOE KIT

3KG-W253E-00-00

Unavailable

SPRING (5T9)

90506-17328-00

Unavailable

CAMSHAFT

4GL-25351-00-00

$68.99

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

BOLT, HEXAGON (462)

90101-06291-00

$8.49

CLUTCH, HUB

3Y1-25366-00-98

Unavailable

BEARING(1YW)

93306-20461-00

$39.99

COLLAR, WHEEL

3Y1-25377-00-00

Unavailable

CIRCLIP(48Y)

99009-47500-00

Unavailable

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

SPROCKET, DRIVEN (47T)

30X-25447-51-00

Unavailable

SPROCKET, DRIVN 49T

3Y1-25449-10-00

Unavailable

SPROCKET DRVN 51T

3Y1-25451-10-00

Unavailable

SPROCKET, DRVN, 53T

3Y1-25453-10-00

Unavailable

BOLT, STUD (483)

90116-08218-00

Unavailable

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

NUT (3Y2)

90170-08258-00

Unavailable

DAMPER

3Y1-25364-00-00

Unavailable

RIM 2.15X17

(94421-17247-00)

Unavailable

SPOKE SET, REAR

3Y1-25304-00-00

Unavailable

IRC 510X17MXGS45Z1

(94151-17601-00)

Unavailable

TUBE

(94251-17163-00)

Unavailable

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

SPACER, BEAD

2X5-25394-00-00

Unavailable

520D5-100L DID (94515-20100)

9Y585-20099-00

Unavailable

JOINT, CHAIN

94681-68001-00

Unavailable

AXLE,WHEEL

150-25381-01-00

Unavailable

COLLAR(3SX)

90387-170X9-00

Unavailable

COLLAR, WHEEL

3Y1-25383-00-00

Unavailable

PULLER, CHAIN 1

3Y1-25388-01-00

Unavailable

PULLER, CHAIN 2

3Y1-25389-00-00

Unavailable

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable
