Description

Price

1

HUB, FRONT

1K7-25111-10-98

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

BEARING

93306-20205-00

$38.99

6

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

7

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

Unavailable

8

BRAKE SHOE KIT

322-W253A-10-00

$29.99

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

23X-25151-00-00

Unavailable

11

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

12

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

13

RIM 1.60X21

94416-21234-00

Unavailable

14

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

15

90/90-21 M2EA-TT

94109-212F8-00

Unavailable

16

TUBE, FRONT (2A6)

94227-21123-00

Unavailable

16

TUBE

94230-21126-00

Unavailable

17

BAND, RIM (2A6)

94330-21084-00

Unavailable

17

BAND, RIM

(94330-21088-00)

Unavailable

18

SPACER, BEAD

1T1-25194-00-00

Unavailable

19

AXLE, WHEEL

1W1-25181-01-00

Unavailable

20

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

21

PIN, COTTER

91490-30030-00

Unavailable

22

COLLAR (1W1)

90387-15600-00

Unavailable

23

COVER, HUB DUST

322-25118-00-00

Unavailable

24

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

25

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

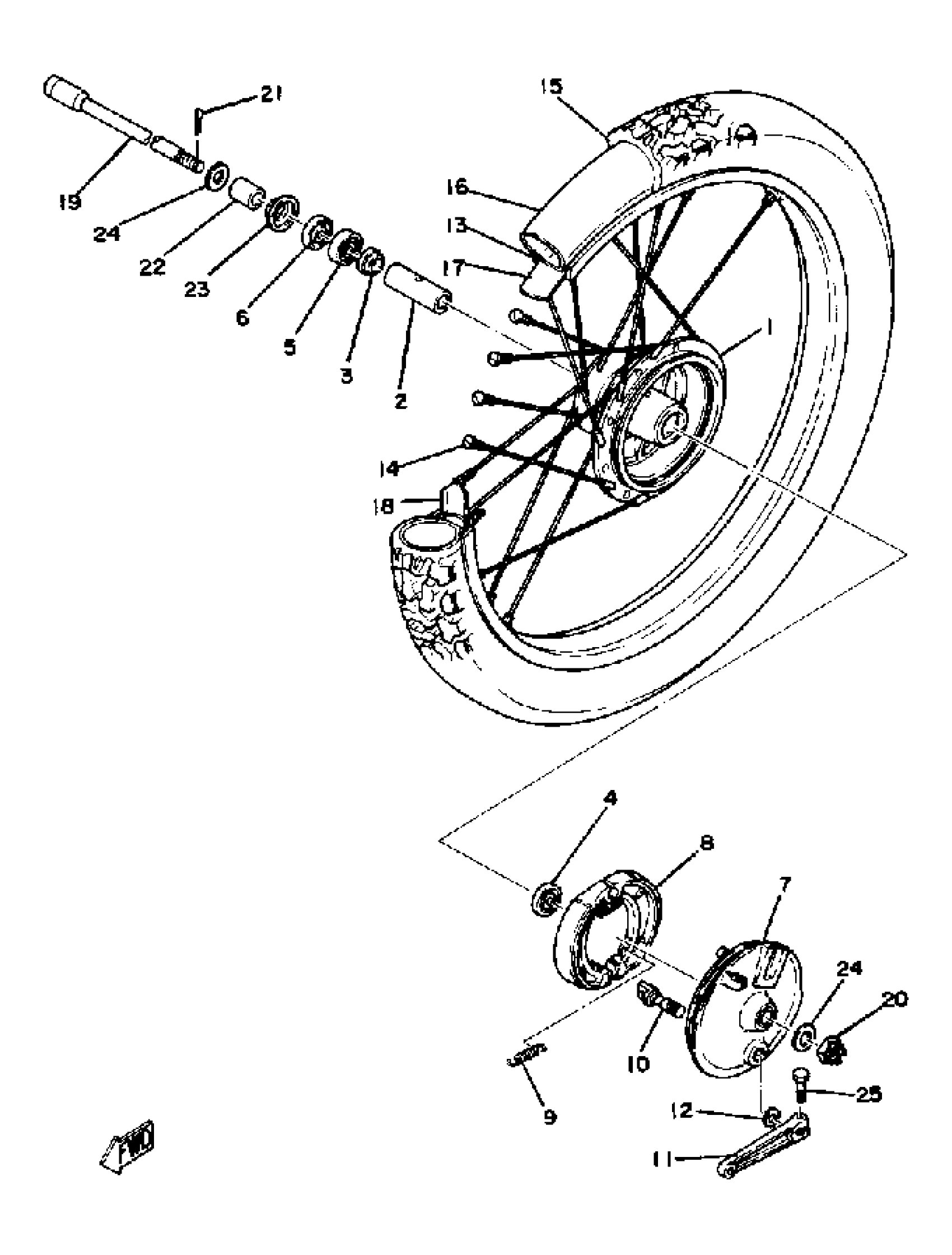

Yamaha TT250G (TT250) 1980 FRONT WHEEL Diagram

HUB, FRONT

SPACER

FLANGE, SPACER

BEARING(3DL)

BEARING

OIL SEAL (20X35X7-136)

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

BRAKE SHOE KIT

SPRING (5T9)

CAMSHAFT

LEVER, CAMSHAFT 1

SEAL, CAMSHAFT

RIM 1.60X21

SPOKE SET, FRONT

90/90-21 M2EA-TT

TUBE, FRONT (2A6)

TUBE

BAND, RIM (2A6)

BAND, RIM

SPACER, BEAD

AXLE, WHEEL

NUT, CASTLE(2UJ)

PIN, COTTER

COLLAR (1W1)

COVER, HUB DUST

WASHER, PLATE (3Y2)

BOLT, HEXAGON (462)
