Description

Price

1

MUFFLER L

3Y0-14711-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

3Y1-14628-00-00

Unavailable

3

SCREW, BINDING

98907-06008-00

$8.49

4

WASHER, PLATE(3MB)

90202-05187-00

$1.38

5

WASHER, WAVE(3RW)

90206-06090-00

$8.49

6

PROTECTOR, MUFF 1

3Y0-14718-01-00

Unavailable

7

SCREW, BINDING

98907-06008-00

$8.49

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

DAMPER, MUFFLER

(3Y0-14737-00-00)

Unavailable

10

PIPE, OUTLET

(3Y0-14752-00-98)

Unavailable

11

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

16

WASHER (853)

90201-08326-00

Unavailable

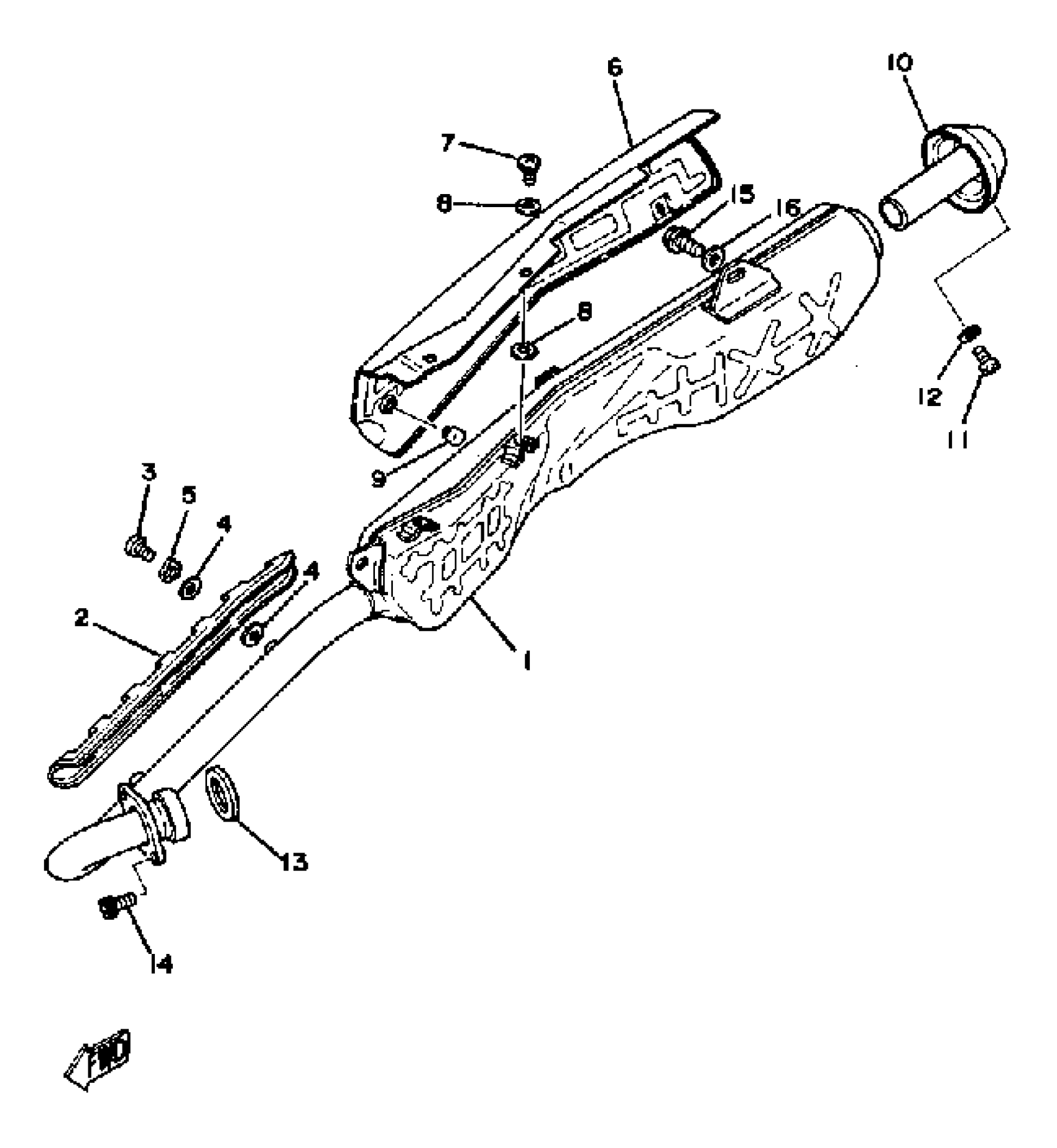

Yamaha TT250G (TT250) 1980 EXHAUST Diagram

MUFFLER L

PROTECTOR, EXHAUST PIPE

SCREW, BINDING

WASHER, PLATE(3MB)

WASHER, WAVE(3RW)

PROTECTOR, MUFF 1

SCREW, BINDING

WASHER, PLATE(3MB)

DAMPER, MUFFLER

PIPE, OUTLET

SCREW, PAN HEAD(6A3)

WASHER, SPRING

GASKET, EXHAUST PIPE

BOLT,SOCKET

BOLT, FLANGE(JN5)

WASHER (853)
