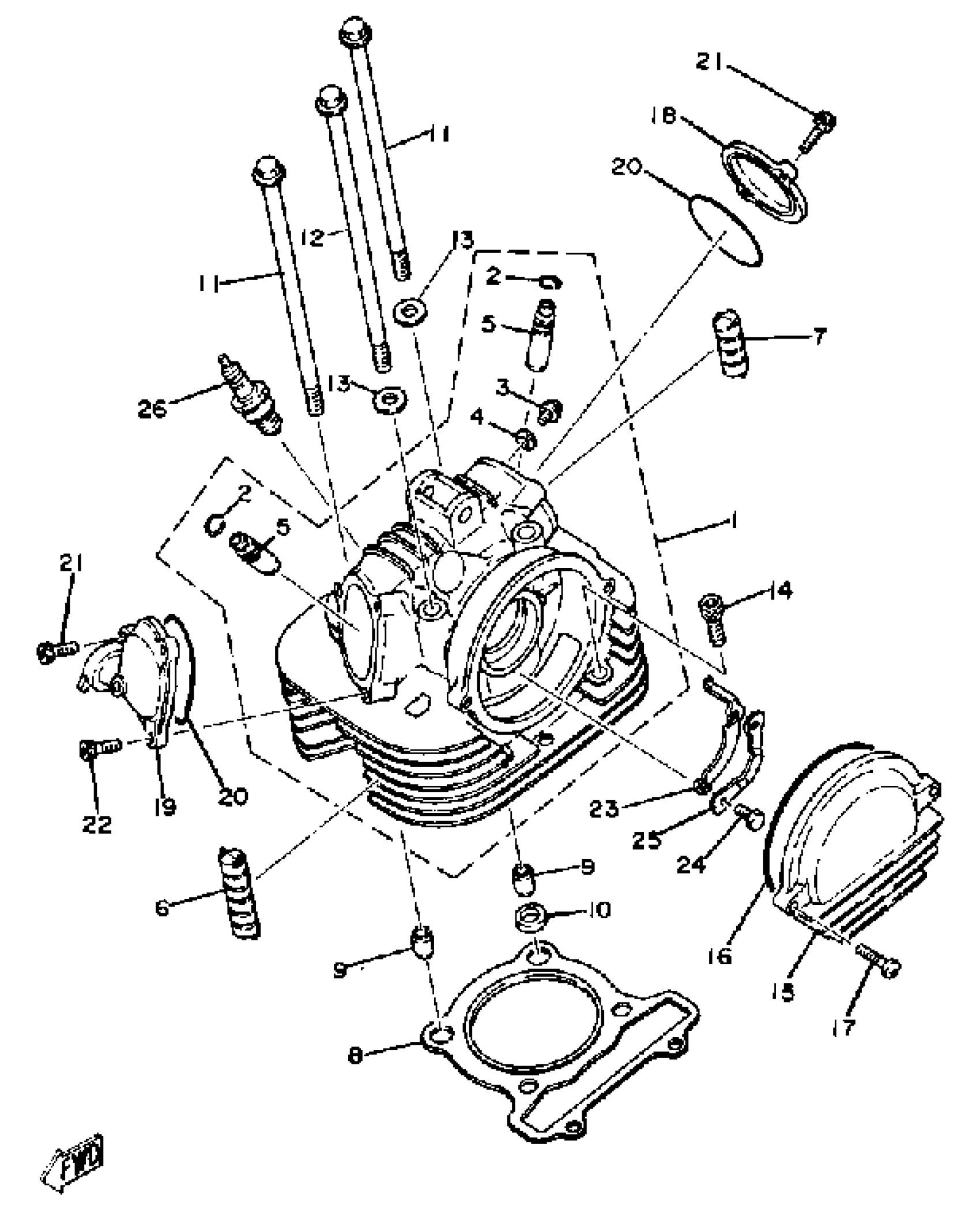

Yamaha TT250G (TT250) 1980 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3Y1-11110-00-00

Unavailable

2

CIRCLIP (1L9)

93440-12052-00

$2.44

3

SCREW

90153-06029-00

$10.49

4

GASKET 256113960000

90430-06014-00

Unavailable

5

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$58.99

6

ABSORBER

583-11127-00-00

$7.99

7

ABSORBER

583-11127-00-00

$7.99

8

GASKET, CYLINDER HEAD

3Y1-11181-09-00

$46.99

9

PIN, DOWEL

99530-14016-00

$3.80

10

GASKET (1L9)

90430-14131-00

$8.49

11

BOLT, FLANGE

90105-10213-00

$16.99

12

BOLT, WASHER BASED (3Y1)

90105-10139-00

Unavailable

13

WASHER PLATE 341839090000

90201-10128-00

$4.82

14

BOLT, SOCKET

91317-08050-00

$8.49

15

COVER, CYLINDER HEAD SIDE 1

3Y1-11185-00-00

Unavailable

16

O-RING (15A)

93211-06635-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

COVER, CYLINDER HEAD SIDE 2

3Y1-11186-10-00

Unavailable

19

COVER, CYLINDER HEAD SIDE 3

3Y1-11187-00-00

Unavailable

20

O-RING

93210-57634-00

Unavailable

21

BOLT,SOCKET

91317-06020-00

Unavailable

22

BOLT

90109-06556-00

Unavailable

23

PLATE

3Y1-1111F-00-00

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, LOCK (3Y1)

90215-06162-00

Unavailable

26

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable
