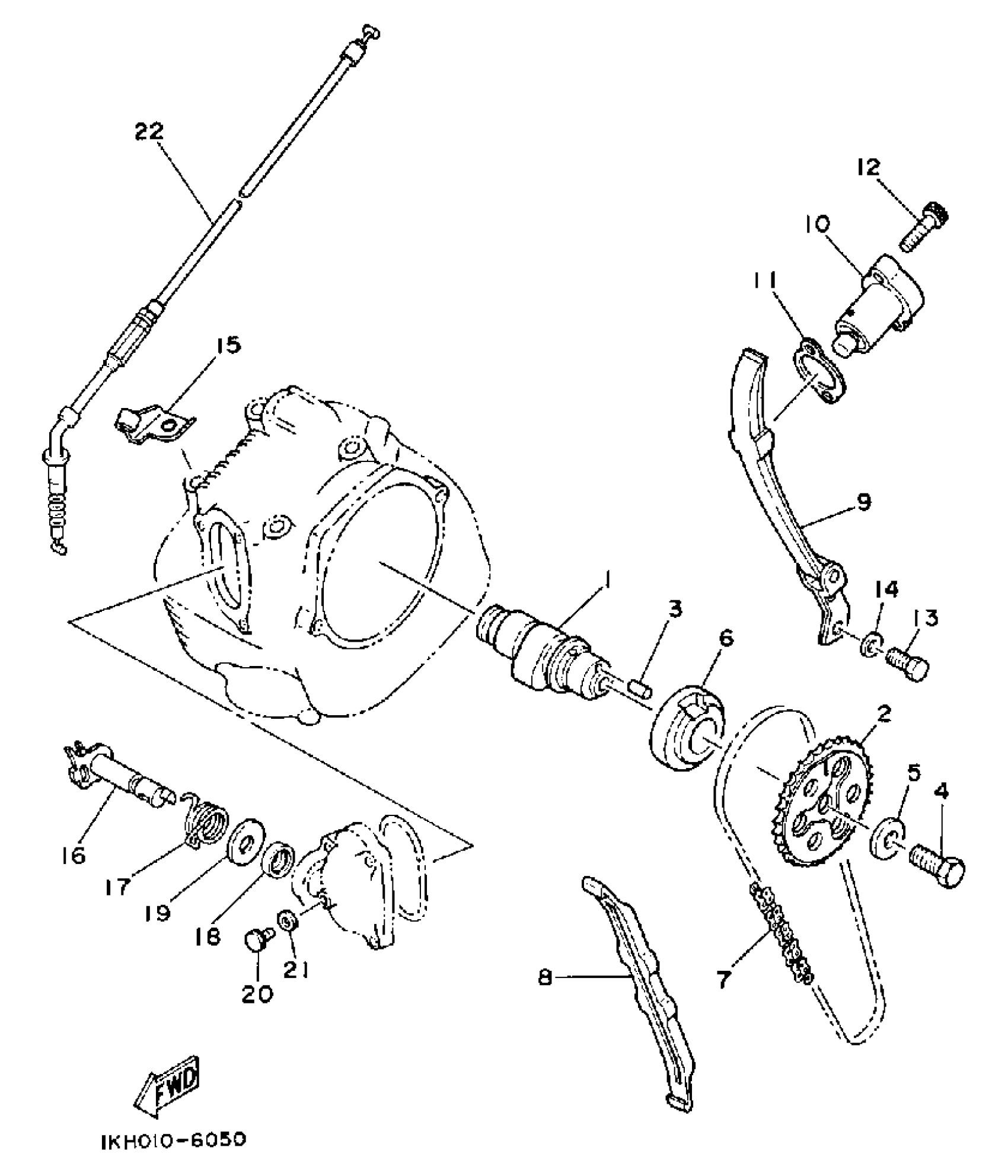

Yamaha TT225T (TT225) 1987 CAMSHAFT-CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

1KH-12171-01-00

$135.79

2

SPROCKET, CAM CHAIN

1KH-12176-00-00

Unavailable

3

PIN,DOWEL (603)

93604-10011-00

$5.00

4

BOLT (583)

90101-10303-00

$5.94

5

WASHER, PLATE (3L6)

90201-10774-00

$5.94

6

COLLAR (15A)

90387-255F3-00

$37.82

7

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$62.03

8

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

9

GUIDE, STOPPER 2

5N0-12241-01-00

$49.49

10

TENSIONER ASSY, CAM CHAIN

2LN-12210-10-00

$113.45

11

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.45

12

BOLT,SOCKET

91317-06025-00

$1.95

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

14

WASHER, PLAIN (646)

92990-06600-00

$2.43

15

BRACKET, DCOMP

(1KH-12283-00-00)

Unavailable

16

CAM, DCOMP

1KH-12288-00-00

Unavailable

17

SPRING, TORSION

90508-12704-00

Unavailable

18

SEAL, OIL (30X)

93102-12321-00

Unavailable

19

WASHER

90201-12588-00

Unavailable

20

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

21

GASKET 256113960000

90430-06014-00

Unavailable

22

CABLE, DCOMP

1KH-12292-00-00

Unavailable
