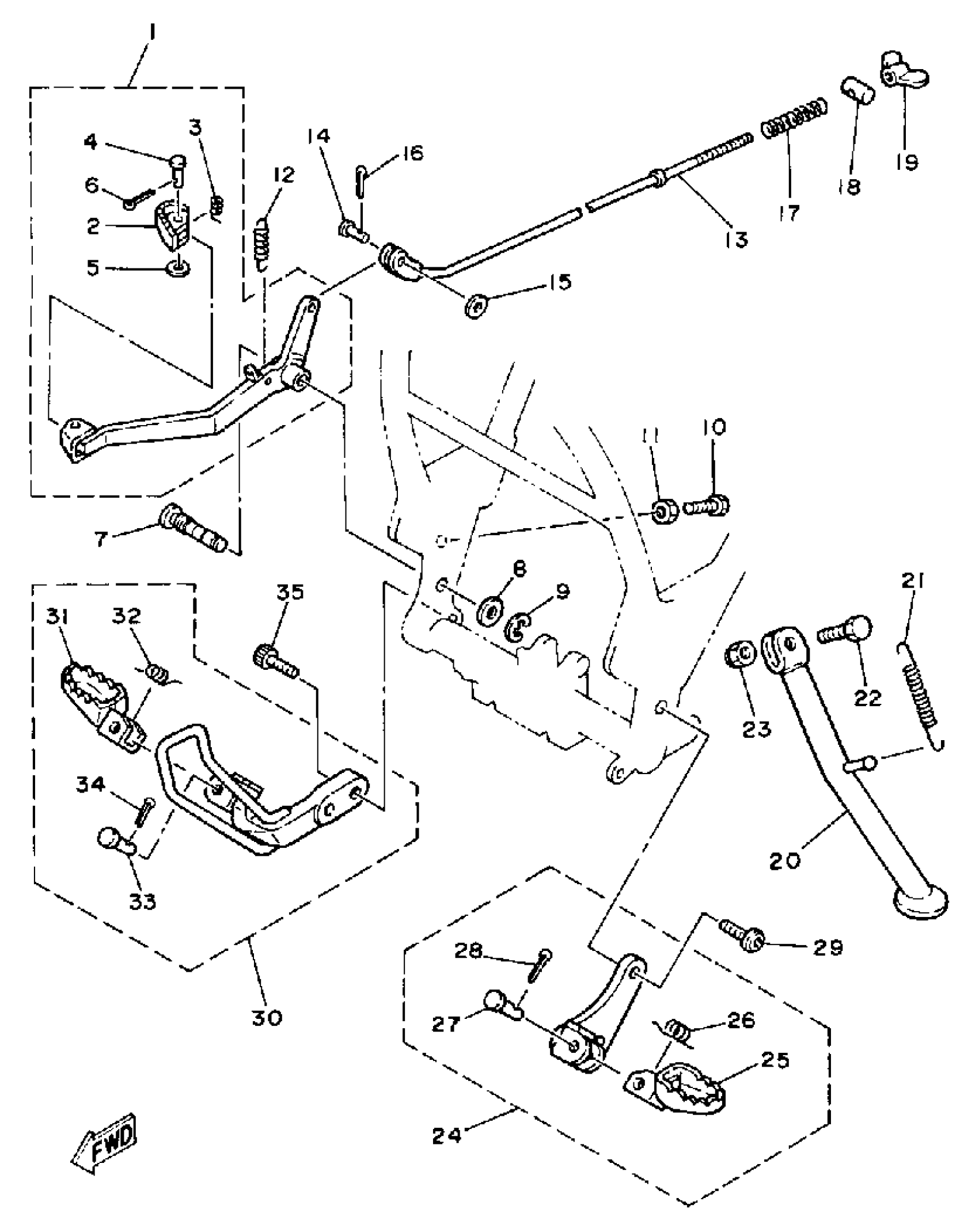

Yamaha TT225S (TT225) 1986 STAND-FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1RH-27200-00-00

Unavailable

2

PEDAL, BRAKE

3R8-27242-00-00

Unavailable

3

SPRING, TORSION

90508-14429-00

Unavailable

4

PIN, CLEVIS

91702-06028-00

$7.49

5

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

6

PIN, COTTER

91490-20025-00

$1.99

7

SHAFT, BRAKE PEDAL

1KH-27212-01-00

$24.99

8

WASHER, PLATE (525)

90201-12541-00

$7.49

9

CIRCLIP (4V2)

93430-09038-00

$9.49

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

NUT(650)

95380-06700-00

$8.49

12

SPRING, TENSION (23X)

90506-18305-00

$10.49

13

ROD, BRAKE

1RH-27231-00-00

Unavailable

14

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

PIN, COTTER

91490-25020-00

Unavailable

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable

19

NUT (25K)

90179-06411-00

Unavailable

20

STAND, SIDE

1KH-27311-02-00

Unavailable

21

SPRING (460)

90507-29009-00

Unavailable

22

BOLT

90109-10473-00

Unavailable

23

NUT, U

90185-10037-00

Unavailable

24

FRT FOOTREST ASSEMBLY LASSEMBLY (LEFT)

1RH-27410-00-90

Unavailable

25

FOOTREST 1

22W-27411-01-90

Unavailable

26

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

27

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

SCREW, SPECL SHAPE

90149-10226-00

Unavailable

30

FRT FOOTREST ASSEMBLY RASSEMBLY (RIGHT)

1RH-27420-00-90

Unavailable

31

FOOTREST 2

22W-27421-01-90

Unavailable

32

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

33

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

34

PIN, COTTER

91490-25020-00

Unavailable

35

BOLT, SOCKET

91317-10020-00

Unavailable
