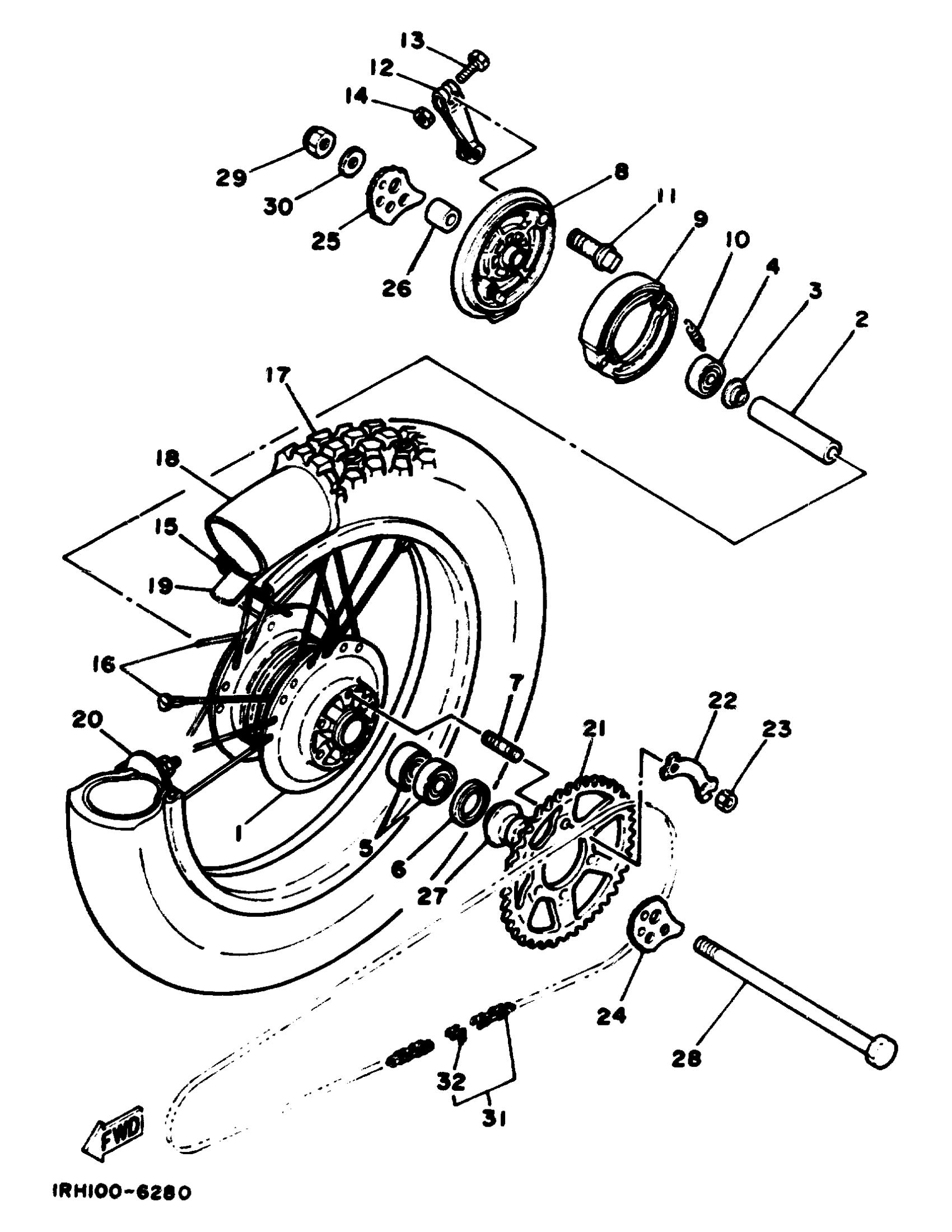

Yamaha TT225S (TT225) 1986 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

15A-25311-00-98

Unavailable

2

SPACER

90560-15313-00

$46.99

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

BEARING

93306-20205-00

$38.99

6

OIL SEAL (22X35X5)

93104-22018-00

$11.49

7

BOLT, STUD (483)

90116-08218-00

$8.49

8

PLATE, BRAKE SHOE

15A-25321-04-98

Unavailable

9

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

10

SPRING, TENSION

90506-15260-00

$8.49

11

CAMSHAFT

5U7-25351-00-00

Unavailable

12

LEVER, CAMSHAFT

29M-25355-00-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

RIM 1.85

94418-18337-00

Unavailable

16

SPOKE SET, REAR

23J-25304-00-00

Unavailable

17

350-18 4PR.M22 BS

94135-183J2-00

Unavailable

18

TUBE (3R9)

94241-18153-00

Unavailable

19

BAND, RIM (2J4)

94340-18086-00

Unavailable

20

SPACER, BEAD

3Y1-25394-00-00

Unavailable

21

SPROCKET, DRVN 50T

1KH-25450-50-00

Unavailable

22

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

23

NUT (3Y2)

90170-08258-00

Unavailable

24

PULLER, CHAIN 1

5H0-25388-00-00

Unavailable

25

PULLER, CHAIN 2

5MP-25389-00-00

Unavailable

26

COLLAR(1KH)

90387-151R1-00

Unavailable

27

COLLAR, WHEEL

1KH-25383-01-00

Unavailable

28

AXLE, WHEEL

99999-04097-00

Unavailable

29

NUT, SELF-LOCKING(3FC)

90185-14150-00

Unavailable

30

WASHER PLATE (3L6)

90201-14740-00

Unavailable

31

CHAIN (D.I.D. 428VS-124VL)

94581-33124-00

Unavailable

32

JOINT, CHAIN (DID428V2-FJ,1KH)

94681-33011-00

Unavailable
