1986 Yamaha TT225 (TT225S) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1986 Yamaha TT225 (TT225S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

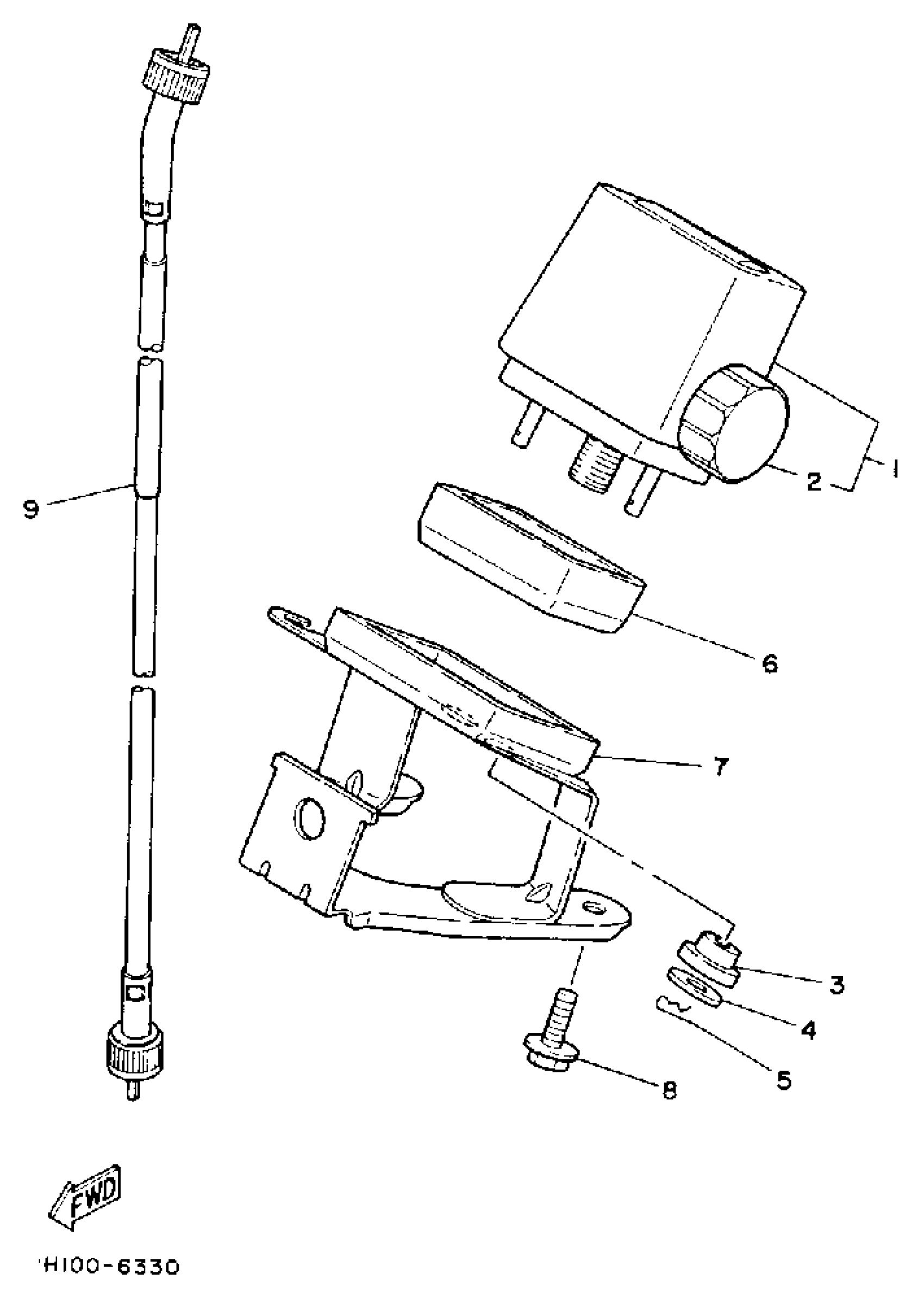

1986 Yamaha TT225 (TT225S) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRIP METER COMP.

4V5-83505-60-00

1
Out of stock

1

TRIP METER CMPLT

4V5-83505-F0-00

1
Out of stock

2

. KNOB, TRIP METER

4V5-83578-00-00

1
Out of stock

3

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

4

WASHER, SPECIAL

4X8-83524-00-00

1

$6.46

In stock

5

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

6

DAMPER

4V5-83513-00-00

1
Out of stock

7

BRACKET, METER

1RH-83519-00-00

1
Out of stock

8

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

9

SPEEDOMETER CABLE ASSY

1RH-83550-02-00

1
Out of stock
