1986 Yamaha TT225 (TT225S) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1986 Yamaha TT225 (TT225S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

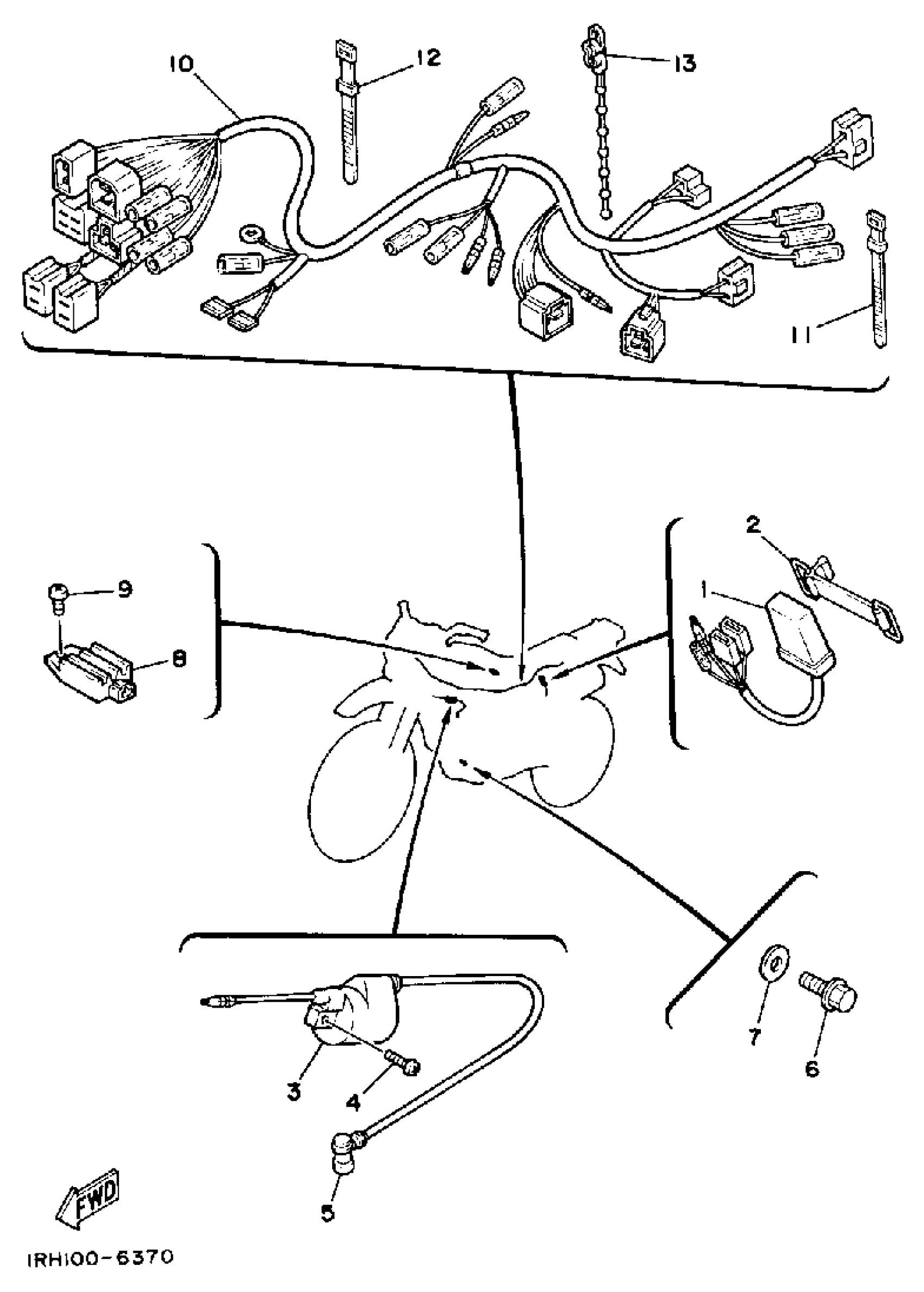

1986 Yamaha TT225 (TT225S) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

1KH-85540-M0-00

1
Out of stock

2

BAND, BATTERY

3TJ-82131-00-00

1

$19.40

In stock

3

IGNITION COIL ASSY

4RP-82310-26-00

1
Out of stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

PLUG CAP ASSY

4BP-82370-01-00

1

$30.96

In stock

6

1

$8.44

In stock

7

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

8

RECTIFIER/REG ASSY

1RH-81960-A0-00

1
Out of stock

9

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

10

WIRE HARNESS ASSEMBLY

(1RH-82590-00-00)

1
Out of stock

11

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

12

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

13

CLAMP

90464-20031-00

1

$2.62

In stock
