Description

Price

1

HOLDER, LEVER 1

1RG-82911-00-00

Unavailable

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

23X-83912-02-00

$27.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

7

WASHER(3SX)

92907-05100-00

$8.49

8

LEVER 2

55Y-83922-02-00

$37.99

9

BOLT(48Y)

90109-062A8-00

$7.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

SCREW (2L0)

90149-06131-00

$8.49

12

NUT HEXAGON 306839270000

90170-06010-00

$8.49

13

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

14

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

15

BAND, SWITCH CORD

437-83936-11-00

$4.63

16

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

Unavailable

17

LEVER, DECOMPRESSION

583-83981-00-00

Unavailable

18

COLLAR, LEVER 1

5BE-83913-00-00

Unavailable

19

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

20

NUT, U

95617-05100-00

Unavailable

21

HOLDER, lever upper 1

1NL-82912-00-00

Unavailable

22

HOLDER, lever lower 1

1NL-82913-00-00

Unavailable

23

STOPPER

1KH-26257-00-00

Unavailable

24

SCREW, PAN

98507-06010-00

Unavailable

25

WASHER(6TA)

92907-06600-00

Unavailable

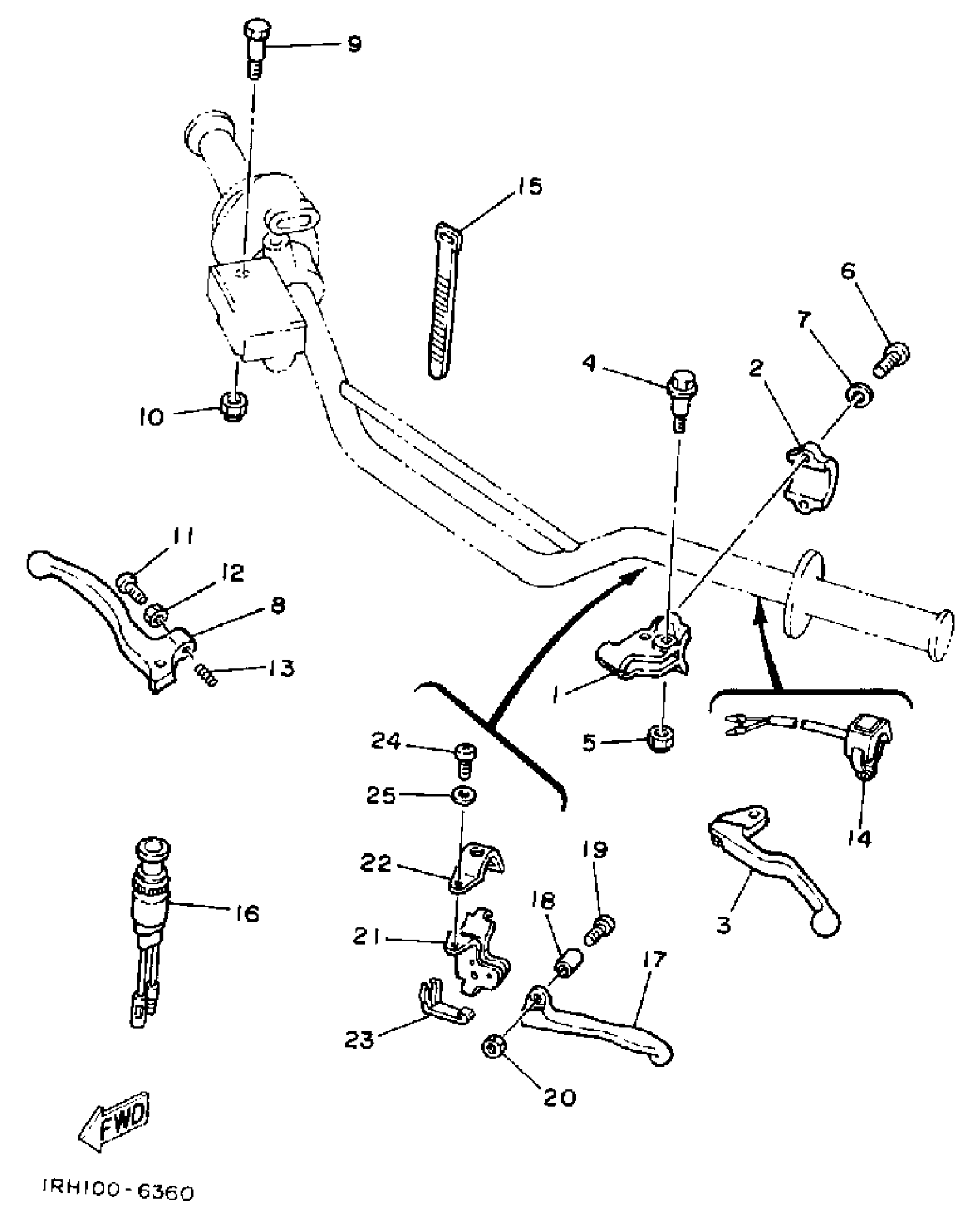

Yamaha TT225S (TT225) 1986 HANDLE SWITCH-LEVER Diagram

HOLDER, LEVER 1

H0LDER, LEVER L0WER 1

LEVER 1

BOLT (2YK1)

NUT, SELF-LOCKING

SCREW, PAN HEAD(4MY)

WASHER(3SX)

LEVER 2

BOLT(48Y)

NUT, SELF-LOCKING

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

SWITCH, HANDLE 1

BAND, SWITCH CORD

LIGHT SWITCH ASSEMBLY

LEVER, DECOMPRESSION

COLLAR, LEVER 1

SCREW, PAN HEAD(4MY)

NUT, U

HOLDER, lever upper 1

HOLDER, lever lower 1

STOPPER

SCREW, PAN

WASHER(6TA)
