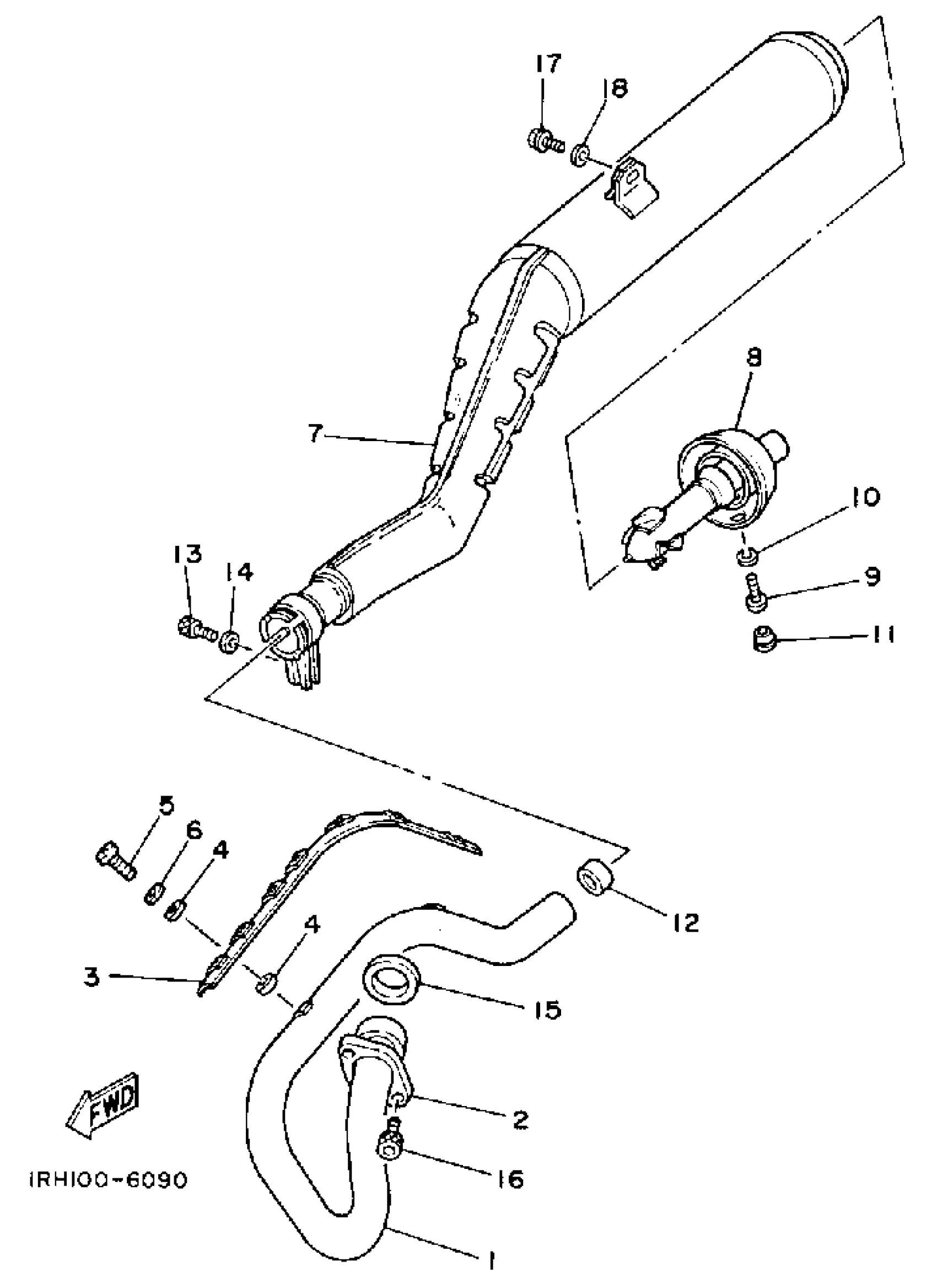

Yamaha TT225S (TT225) 1986 EXHAUST Diagram

PIPE, EXHAUST L

1KH-14611-01-00

Unavailable

NUT, RING

5H0-14612-01-00

$16.49

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

$1.38

SCREW, TAPPING (30X)

90164-06017-00

$8.49

WASHER, WAVE(3RW)

90206-06090-00

$8.49

MUFFLER L

1RH-14711-00-00

Unavailable

PIPE, OUTLET

1RH-14752-01-00

$141.99

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

GROMMET (420)

90480-14153-00

$9.49

GASKET, MUFFLER

3YF-14714-00-00

$36.99

BOLT, SOCKET

91317-08025-00

$8.49

WASHER(6TA)

92907-08600-00

$3.03

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

BOLT,SOCKET

91317-06020-00

Unavailable

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

WASHER (853)

90201-08326-00

Unavailable
