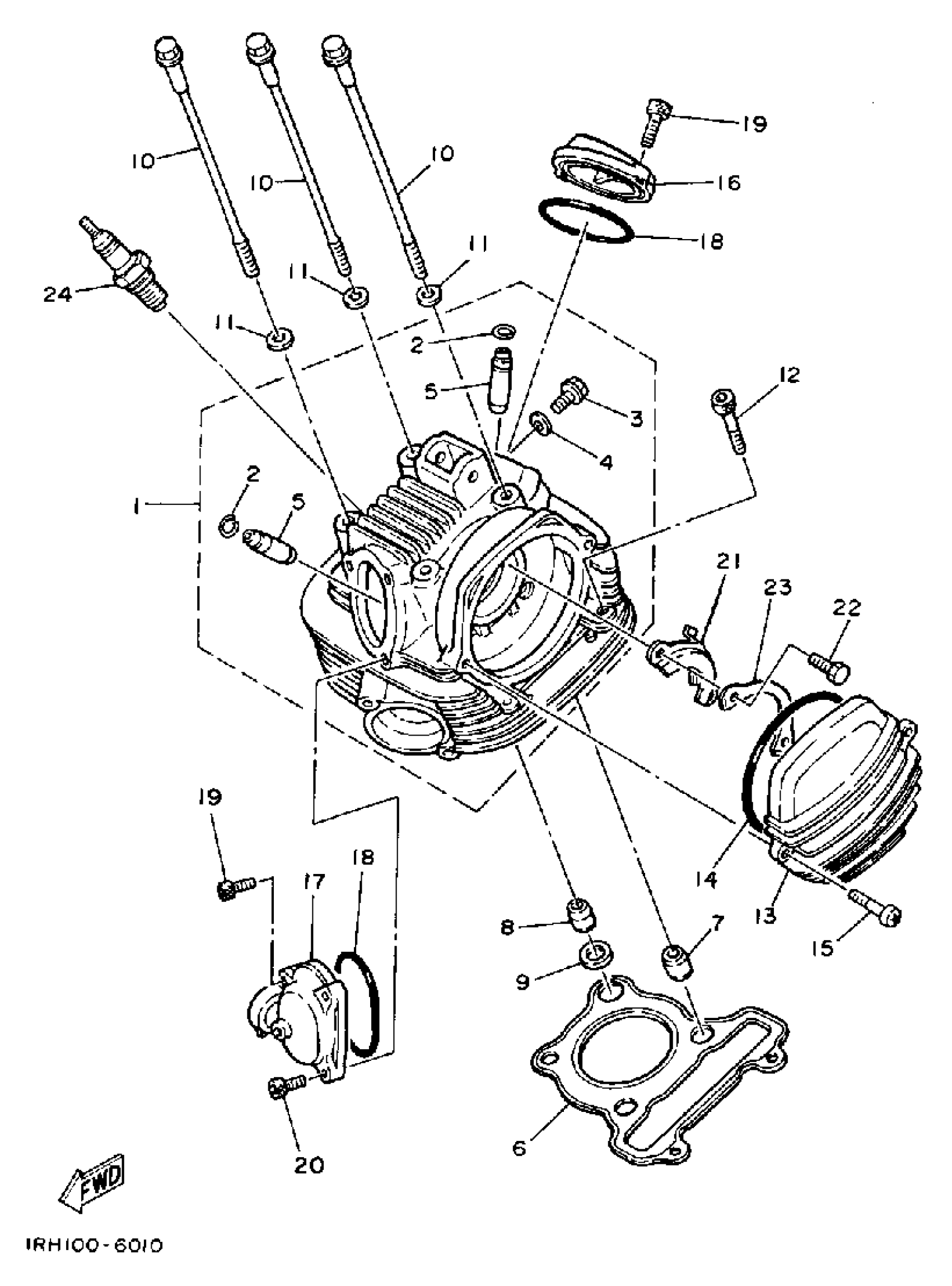

Yamaha TT225S (TT225) 1986 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

15A-11110-04-00

$667.15

2

CIRCLIP (4G0)

93440-10085-00

$5.75

3

SCREW

90153-06029-00

$7.94

4

GASKET 256113960000

90430-06014-00

Unavailable

5

GUIDE, INTAKE VALVE

5H0-11133-11-00

$57.70

6

GASKET, CYLINDER HEAD 1

59V-11181-00-00

$31.08

7

PIN, DOWEL

99530-14016-00

$2.98

8

PIN, DOWEL

99530-12016-00

$3.85

9

GASKET (29U)

90430-12186-00

$12.22

10

BOLT, FLANGE

90105-08160-00

$5.96

11

WASHER, PLATE

90201-080L7-00

$3.19

12

BOLT, SOCKET

91317-08045-00

Unavailable

13

COVER, CYLINDER HEAD SIDE 1

15A-11185-00-00

$61.42

14

O-RING (5H0)

93211-05471-00

$10.85

15

SCREW, PAN

98517-06020-00

$1.79

16

COVER, CYLINDER HEAD SIDE 2

15A-11186-00-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 3

21V-11187-01-00

Unavailable

18

O-RING

93210-57634-00

Unavailable

19

BOLT,SOCKET

91317-06018-00

Unavailable

20

BOLT,SOCKET

91317-06018-00

Unavailable

21

PLATE

5H0-1111F-00-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, LOCK (5H0)

90215-06184-00

Unavailable

24

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

$3.77
