Partiron

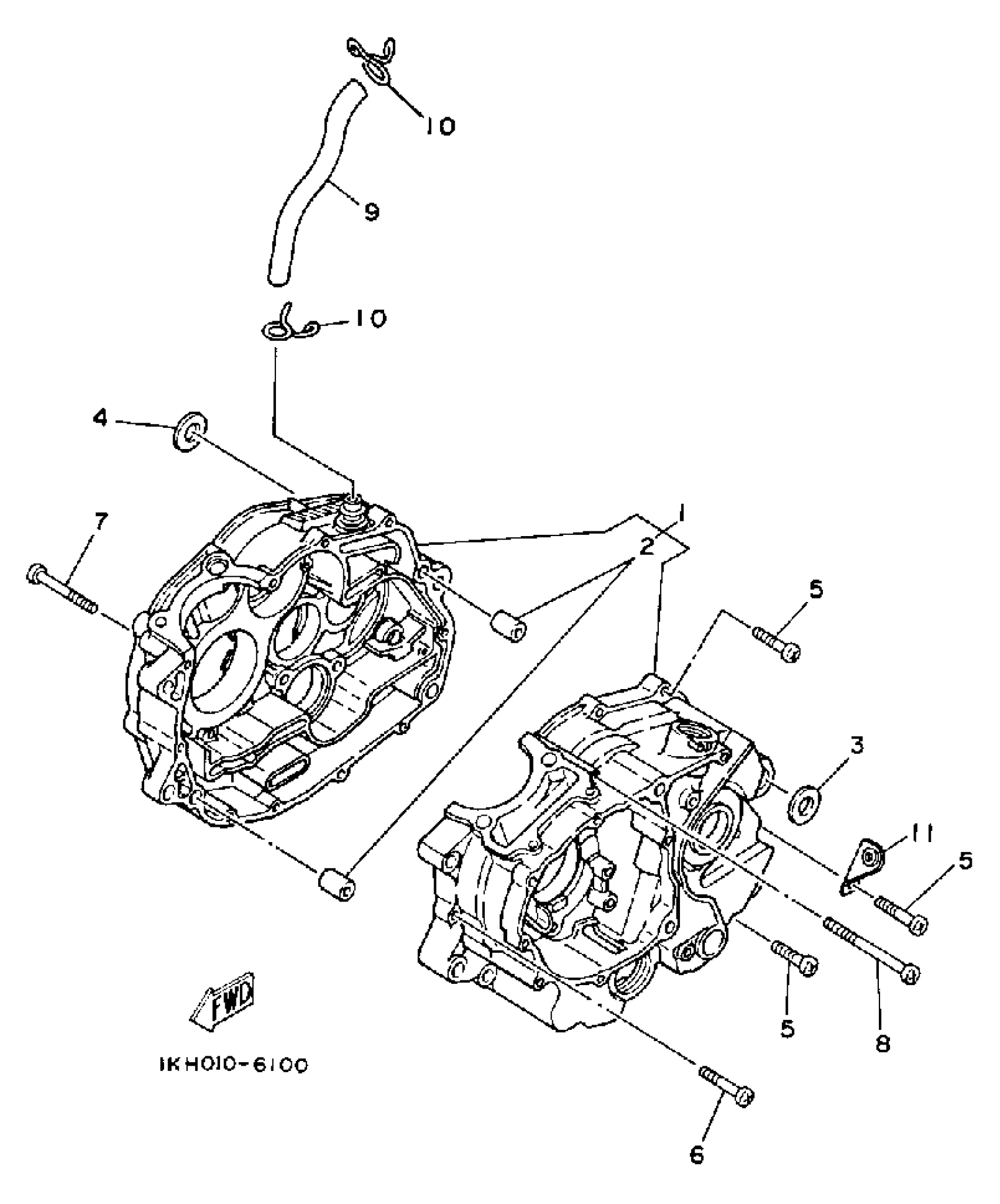

Yamaha TT225S (TT225) 1986 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

99999-03014-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

COLLAR (15A)

90387-125F1-00

$3.85

4

COLLAR (15A)

90387-125F1-00

$3.85

5

SCREW, PAN

98517-06030-00

$2.88

6

SCREW, PAN

98507-06040-00

$2.08

7

SCREW, PAN

98507-06080-00

$5.15

8

SCREW, PAN

98507-06085-00

$4.82

9

PIPE, BREATHER 1

1KH-11166-01-00

$31.23

10

CLIP (371)

90467-14015-00

$7.03

11

CLAMP (15A)

90465-08200-00

$3.92
