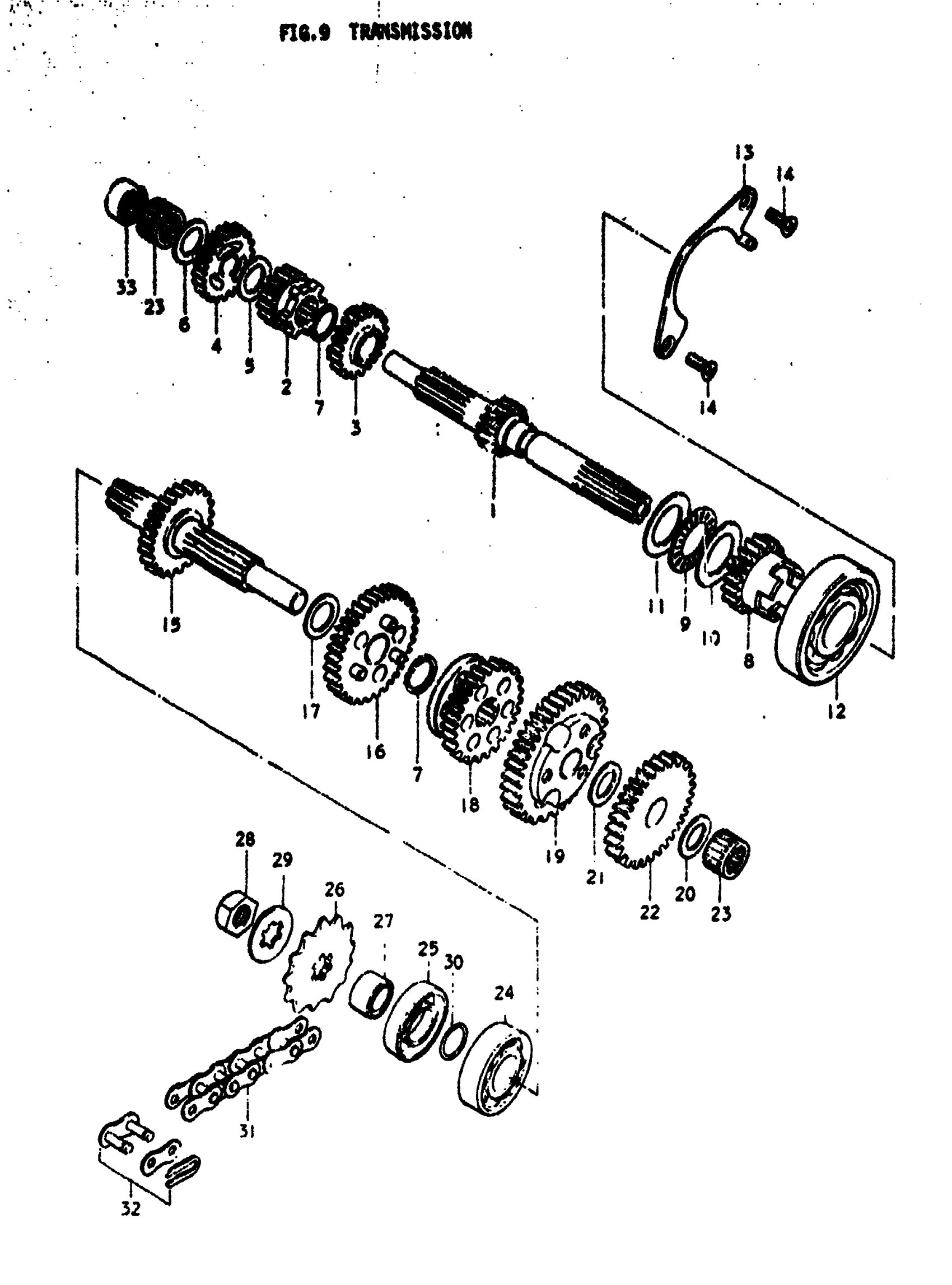

Suzuki TS75 (1977) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER This part replaces 24121-03100.

24121-03101

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 24221-03002.

24221-03003

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 24231-03001.

24231-03002

Unavailable

4

GEAR, 4TH DRIVE

24241-26100

Unavailable

5

WASHER DRIVE GEAR INNER

09160-12015

Unavailable

6

WASHER DRIVE GEAR OUTER

08211-12261

$2.50

7

CIRCLIP, 3RD DRIVE GEAR

09380-17001

$1.98

8

NO DESCRIPTION AVAILABLE This part replaces 26280-03002.

26280-03003

Unavailable

9

BEARING, KICK STARTER DRIVEN G

09263-20002

Unavailable

10

WASHER

09160-20005

Unavailable

11

WASHER

09160-20007

Unavailable

12

BEARING This part replaces 09262-30002.

09262-30003

Unavailable

13

RETAINER, COUNTERSHAFT BEARING

24741-25600

Unavailable

14

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

15

DRIVESHAFT

24131-03101

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 24320-03000.

24320-26300

Unavailable

17

WASHER, 2ND DRIVEN

08211-17241

$2.54

18

GEAR, 3RD DRIVEN | M; ~F.NO.RS75-17650 This part replaces 24331-03000.

24331-03001

Unavailable

18

GEAR, 3RD DRIVEN

24331-03001

Unavailable

19

GEAR,1ST DRIVEN This part replaces 24310-03002.

24310-03003

Unavailable

20

THRUST WASHER, OUTER

08211-12261

$2.50

21

WASHER, INNER

09160-12015

Unavailable

22

GEAR, KICK STARTER IDIE

26260-03002

Unavailable

23

BEARING, TRANSMISSION SHAFT

09263-12001

Unavailable

24

BEARING, DRIVESHAFT

08113-63030

$23.65

25

OIL SEAL

09283-21001

$12.70

26

SPROCKET, ENGINE | NT:15, STD

27511-26000

Unavailable

26

SPROCKET, ENGINE | NT:13, OPT

27511-19000

$14.98

26

SPROCKET, ENGINE | NT:10; OPT

27511-19700

Unavailable

27

SPACER | B

09180-17088

Unavailable

28

NUT | B

09140-16002

$3.16

29

LOCK WASHER | B

09167-16001

$1.87

30

O RING | B

09280-17001

$1.49

31

CHAIN ASSY,DRIV | B; Includes Item(s) 32 This part replaces 27600-05011.

27600-01012-130

Unavailable

32

JOINT (DID) | B This part replaces 27620-01011.

27620-01012

$6.87

33

SEAL OIL(5.5X16 | B This part replaces 09285-05004.

09285-05007

$4.47
