1977 Suzuki TS75 Rear Fender Diagram

← All diagrams

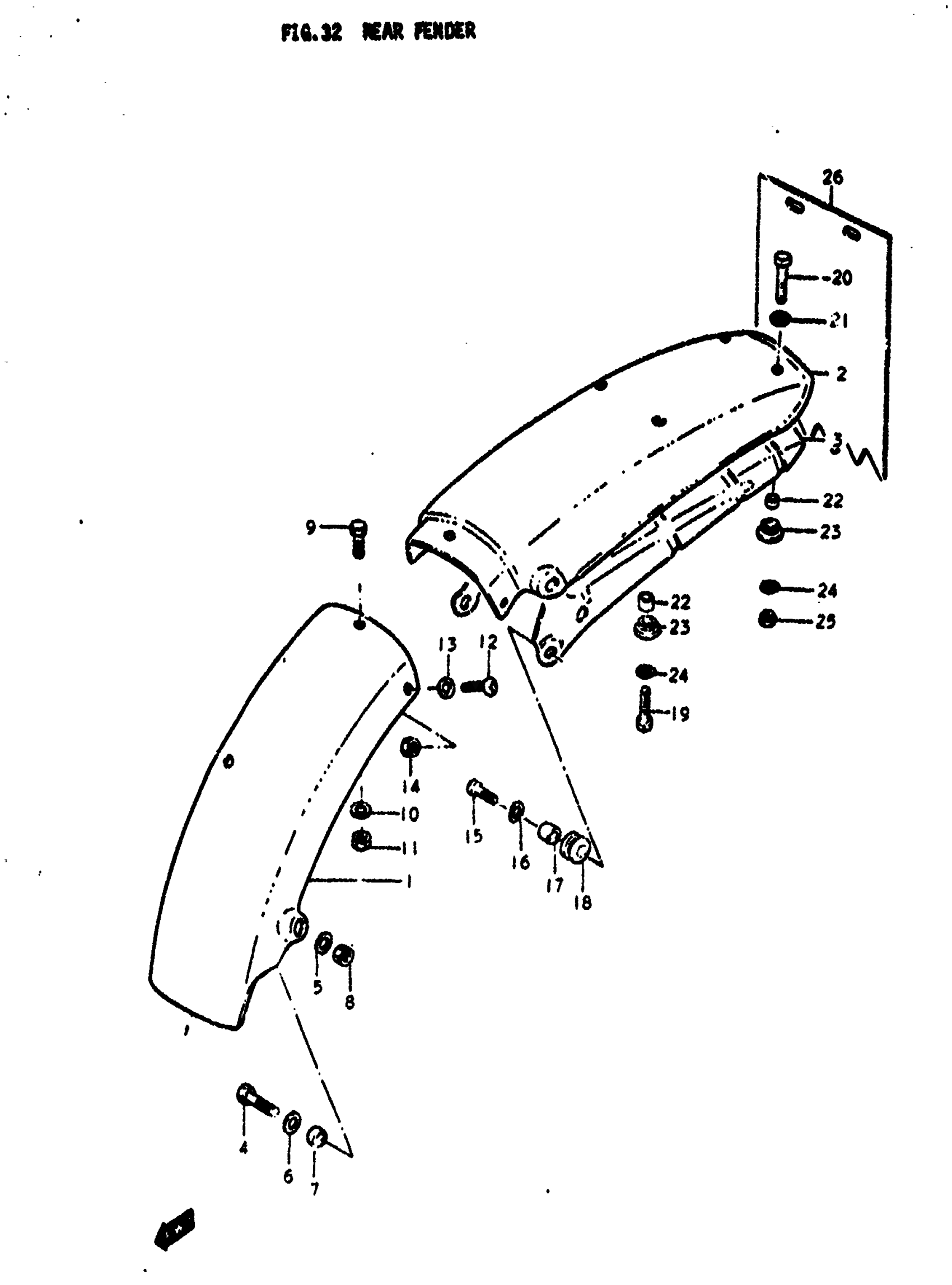

Find the part on the Rear Fender diagram for your 1977 Suzuki TS75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS75 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 63112-26001.

63112-26003-019

—
Out of stock

2

NO DESCRIPTION AVAILABLE | M This part replaces 63113-26001-714.

63113-26001-737

1
Out of stock

2

NO DESCRIPTION AVAILABLE | A This part replaces 63113-26001-293.

63113-26001-737

1
Out of stock

2

NO DESCRIPTION AVAILABLE | B This part replaces 63113-26001-797.

63113-26001-737

1
Out of stock

3

REINFORCEMENT, REAR FENDER

63120-26000

1
Out of stock

4

2

$2.10

In stock

5

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

6

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

7

SPACER | 7.6x10x5

09180-07007

2
Out of stock

8

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

9

BOLT | 6x14 This part replaces 09100-06026.

09100-06067

1
Out of stock

10

WASHER | 6.5x16x1.2

09160-06019

1
Out of stock

11

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

12

SCREW This part replaces 02141-05127.

02142-05127

2
Out of stock

13

WASHER This part replaces 08322-11058.

08322-01057

2
Out of stock

14

NUT This part replaces 08311-11058.

08310-00057

2
Out of stock

15

BOLT This part replaces 09100-06026.

09100-06067

2
Out of stock

16

2

$2.28

In stock

17

SPACER | 6.1x9x7.5

09180-06038

2
Out of stock

18

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

19

BOLT, REAR | 6x18

09100-06064

2
Out of stock

20

BOLT This part replaces 01112-06208.

01500-06207

2
Out of stock

21

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

22

SPACER | 7.6x10x7

09180-07011

4
Out of stock

23

CUSHION

09320-09006

4
Out of stock

24

4

$2.28

In stock

25

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

26

FLAP, REAR FENDER MUD | OPT

63331-26000

1
Out of stock
