Partiron

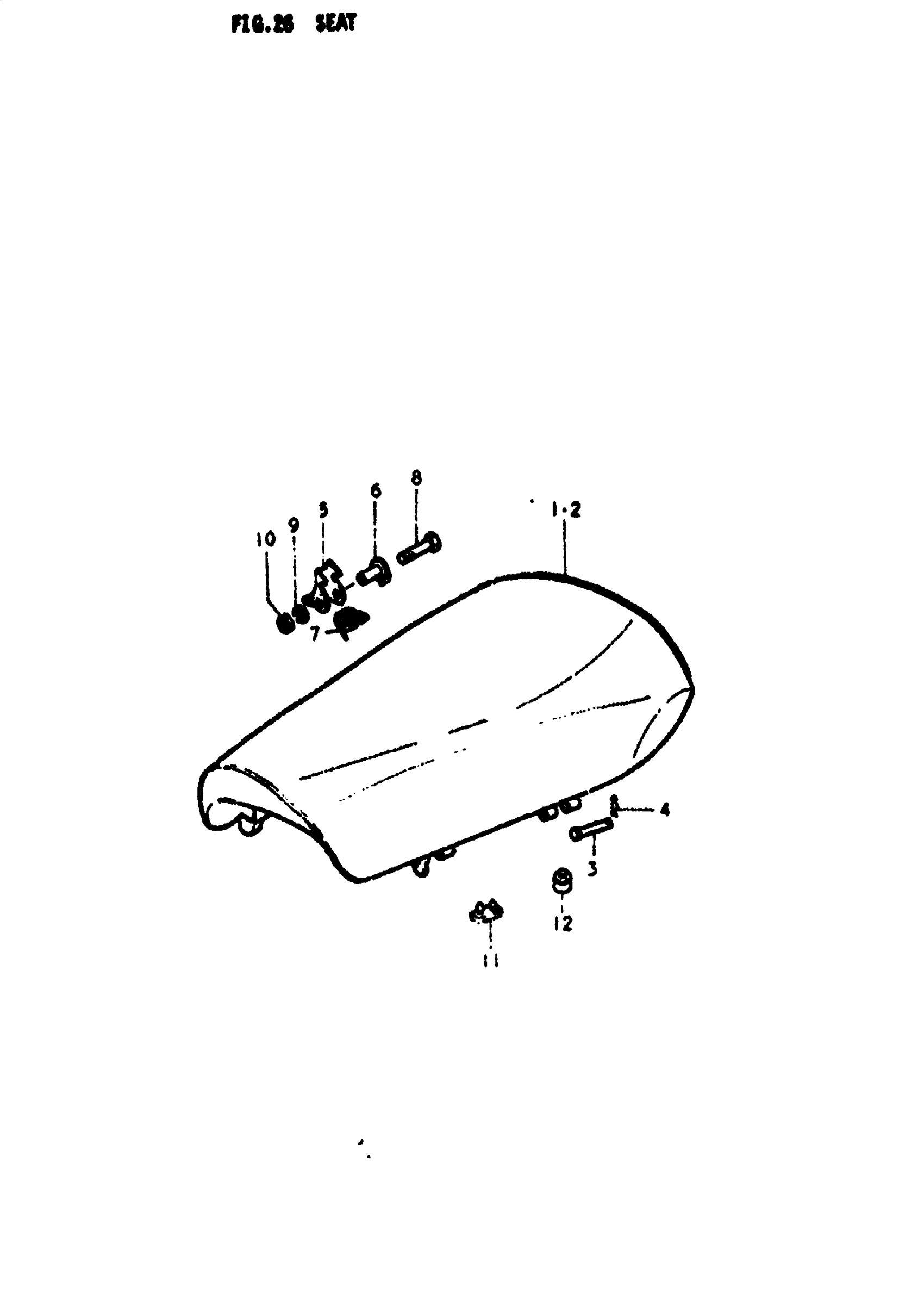

Suzuki TS75 (1977) SEAT Diagram

#

Description
Price

1

SEAT ASSY | M This part replaces 45100-26101-403.

45100-26600-865

Unavailable

2

SEAT ASSY | A This part replaces 45100-26600-403.

45100-26600-865

Unavailable

2

SEAT ASSY | B

45100-26600-865

Unavailable

3

PIN, SEAT SUPPORT

09200-06018

$2.08

4

CLIP

09385-06001

$3.37

5

CLAMP, SEAT

45211-26001

Unavailable

6

BOSS, SEAT CLAMP

45210-26001

Unavailable

7

SPRING

09448-17007

Unavailable

8

BOLT This part replaces 01122-08408.

01500-0840A

$2.62

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

10

NUT This part replaces 08312-11088.

08310-00087

$1.83

11

CUSHION, SEAT A

09321-08006

$2.80

12

CUSHION, SEAT B

09321-10001

$2.69
