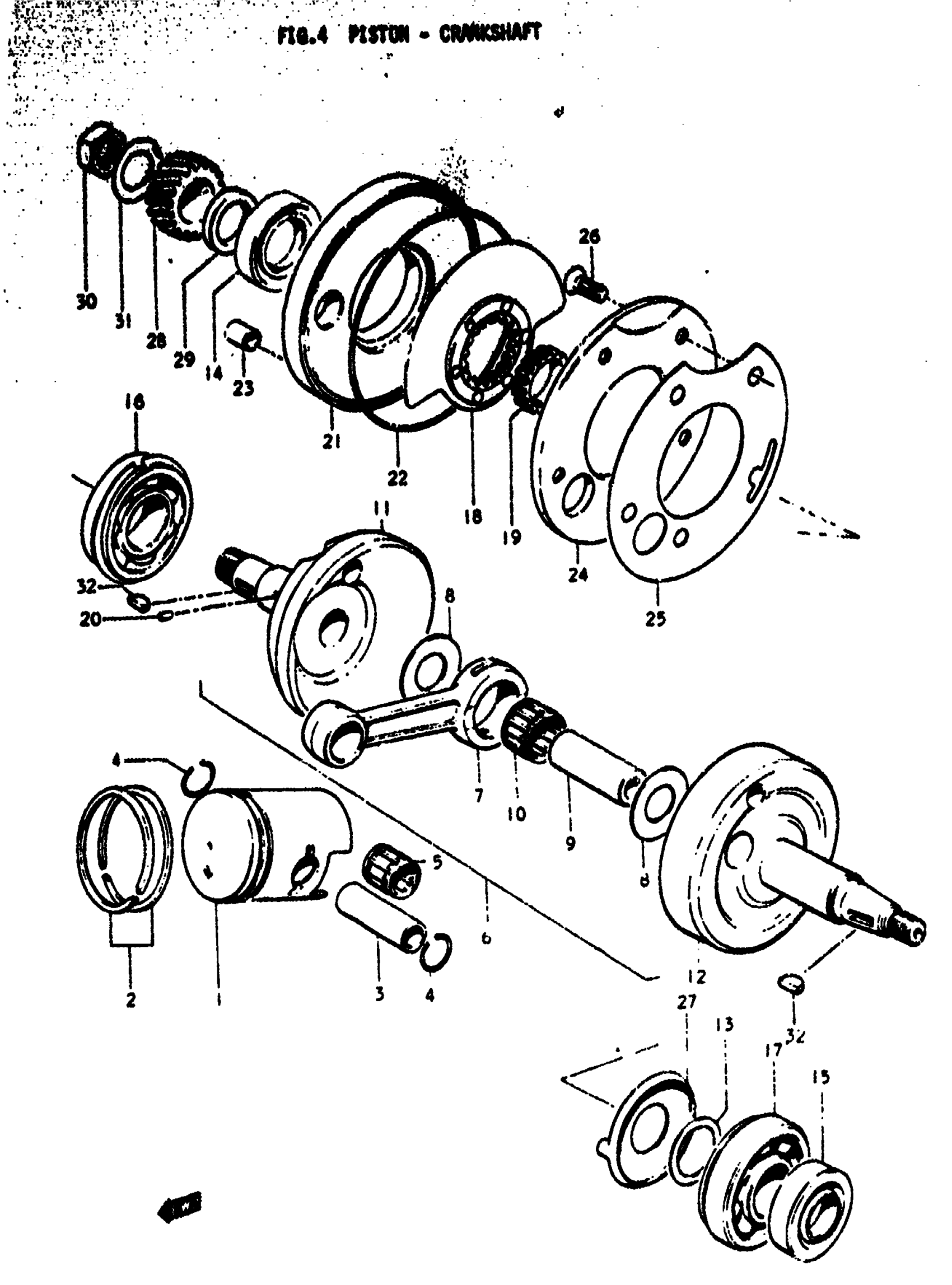

Suzuki TS75 (1977) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

PISTON This part replaces 12110-26101.

12110-26102-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | OS:0.25 OPT This part replaces 12110-26120.

12100-26100-025

Unavailable

1

PISTON SET | OS:0.5 OPT This part replaces 12110-26110.

12100-26100-050

$109.18

2

RING, PISTON ST This part replaces 12100-25870.

12140-35410

$30.53

2

NO DESCRIPTION AVAILABLE | OS:0.25 OPT This part replaces 12140-25780.

12140-26100-025

Unavailable

2

PISTON RING 0S | OS:0.5 OPT This part replaces 12140-25790.

12140-35410-050

$38.95

3

PIN, PISTON

12151-09204

$10.17

4

SNAP RING

09381-12001

$1.49

5

BEARING (12X16X16) | 12x16x16 This part replaces 09263-12003.

09263-12023

$10.19

6

CRANKSHAFT SET | Includes Item(s) 7 - 12

12200-26100

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 12161-05000.

12161-05001

Unavailable

8

THRUST WASHER | FROM 09160-19002

09160-19001

$3.27

9

PIN, CRANK

12211-05000

Unavailable

10

BEARING This part replaces 09263-19007.

09263-19009

$16.75

11

CRANKSHAFT, RH

12221-05002

Unavailable

12

CRANKSHAFT, LH

12261-05001

Unavailable

13

SHIM (20X28X0.5) | 20x28x0.5 This part replaces 08221-20285.

09181-20158

$3.03

14

SEAL,OIL,25X44X | 25x44x7 This part replaces 09283-25009.

09283-25107

$6.02

15

OIL SEAL, RH | 25x37x7 This part replaces 09283-20011.

09283-20034

$5.18

16

BEARING | 20x52x15

09262-20015

$34.92

17

BEARING | 20x52x14

09262-20005

Unavailable

18

PLATE, VALVE | M; TO 12410-05010

12410-05002

Unavailable

18

PLATE, VALVE | A,B

12410-05010

Unavailable

19

GUIDE, VALVE

12421-05210

Unavailable

20

PIN This part replaces 06211-03052.

04221-03059

$1.72

21

NO DESCRIPTION AVAILABLE This part replaces 12450-26000.

12450-05002

Unavailable

22

O RING | ID:101.4, D:2.4

09280-00002

Unavailable

23

DOWEL PIN

04211-09129

$1.65

24

NO DESCRIPTION AVAILABLE This part replaces 12460-05001.

12461-05002

Unavailable

25

GASKET

12471-05001

Unavailable

26

SCREW This part replaces 02122-06168.

02122-06167

$1.49

27

PLATE, OIL GUIDE

12511-05000

Unavailable

28

GEAR, PRIMARY DRIVE | NT:19

21111-03001

Unavailable

29

SPACER | 20x25x10

09180-20006

Unavailable

30

NUT

09140-14002

$3.40

31

WASHER | 14.5x28x0.8

09166-14008

Unavailable

32

KEY

08341-31039

$1.89
