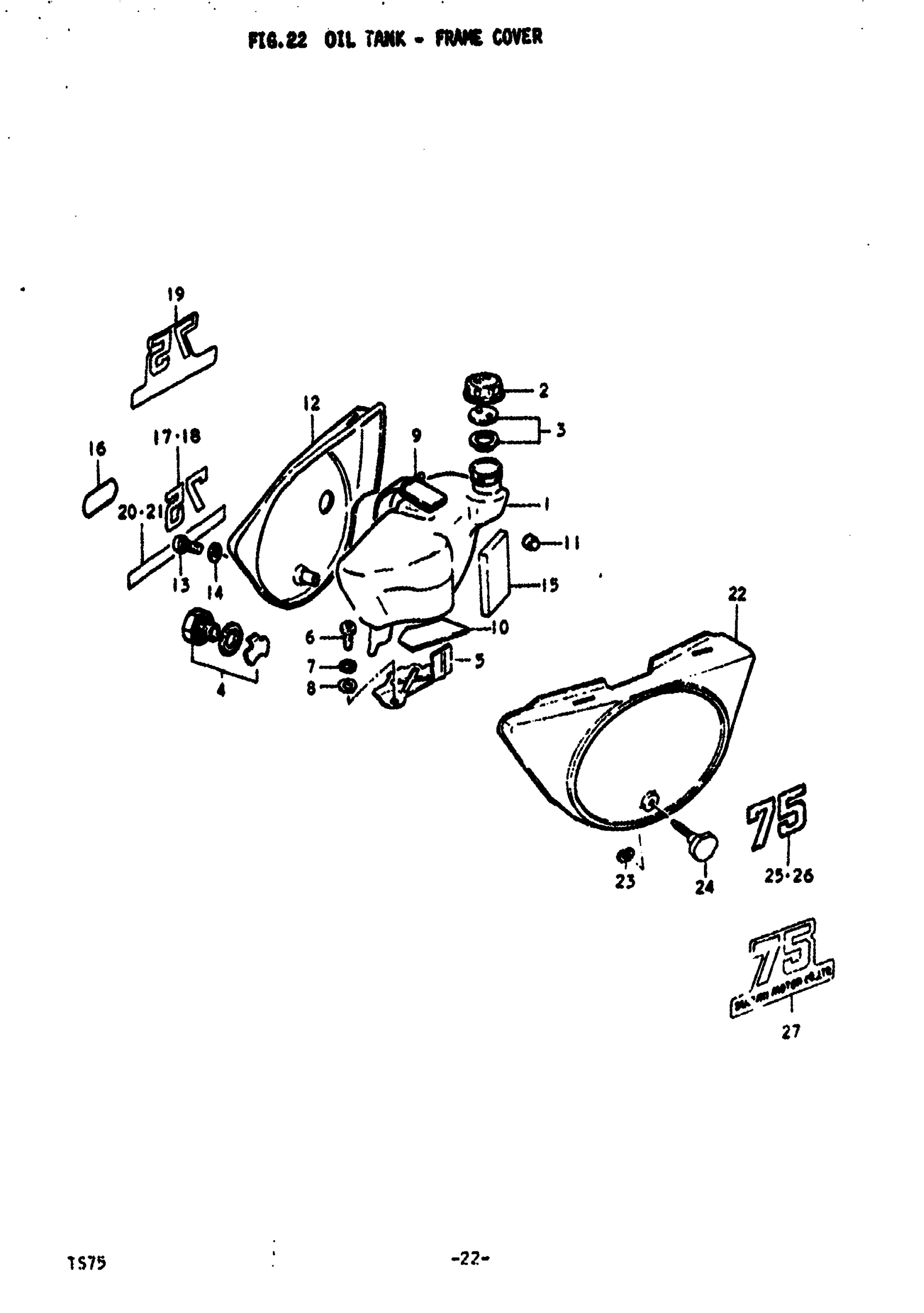

Suzuki TS75 (1977) OIL TANK - FRAME COVER Diagram

#

Description
Price

1

TANK, OIL

44611-26100

Unavailable

2

CAP, OIL TANK | TO 44651-05002 This part replaces 44651-05001.

44651-05003

$5.05

3

GASKET SET | FROM 44600-35820 This part replaces 44600-35821.

44600-30833

$5.42

4

OIL LEVEL INSPE This part replaces 44600-31830.

44600-31832

$11.07

5

HOLDER, OIL TANK | M; TO 44820-26001 This part replaces 44820-26000.

44820-26001

Unavailable

5

HOLDER, OIL TANK | A,B

44820-26001

Unavailable

6

BOLT This part replaces 01112-06128.

01500-06127

$1.97

7

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

BAND, OIL TANK

09462-00040

$5.76

10

CUSHION, OIL TANK

44831-25000

Unavailable

11

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

12

COVER, FRAME RH

47111-26100

Unavailable

13

SCREW

02112-06307

$1.97

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

33651-37000

$4.48

16

EMBLEM CCI

68171-26000

$3.59

17

EMBLEM, 75 | M

68131-26300-60A

Unavailable

18

EMBLEM, 75 | A

68131-26600-60A

Unavailable

19

EMBLEM, 75 | B

68131-26630-538

Unavailable

20

LABEL, COMPANY NAME | M

68363-26200

Unavailable

21

LABEL, COMPANY NAME | A

68363-26300

Unavailable

22

COVER, FRAME LH

47211-26100

Unavailable

23

STOP, FRAME COVER KNOB

09152-05101

Unavailable

24

KNOB, FRAME COVER | FROM 47130-26100

47130-26101

Unavailable

25

EMBLEM, 75 | M

68131-26300-60A

Unavailable

26

EMBLEM, 75 | A

68131-26600-60A

Unavailable

27

EMBLEM, 75 | B

68131-26630-538

Unavailable
