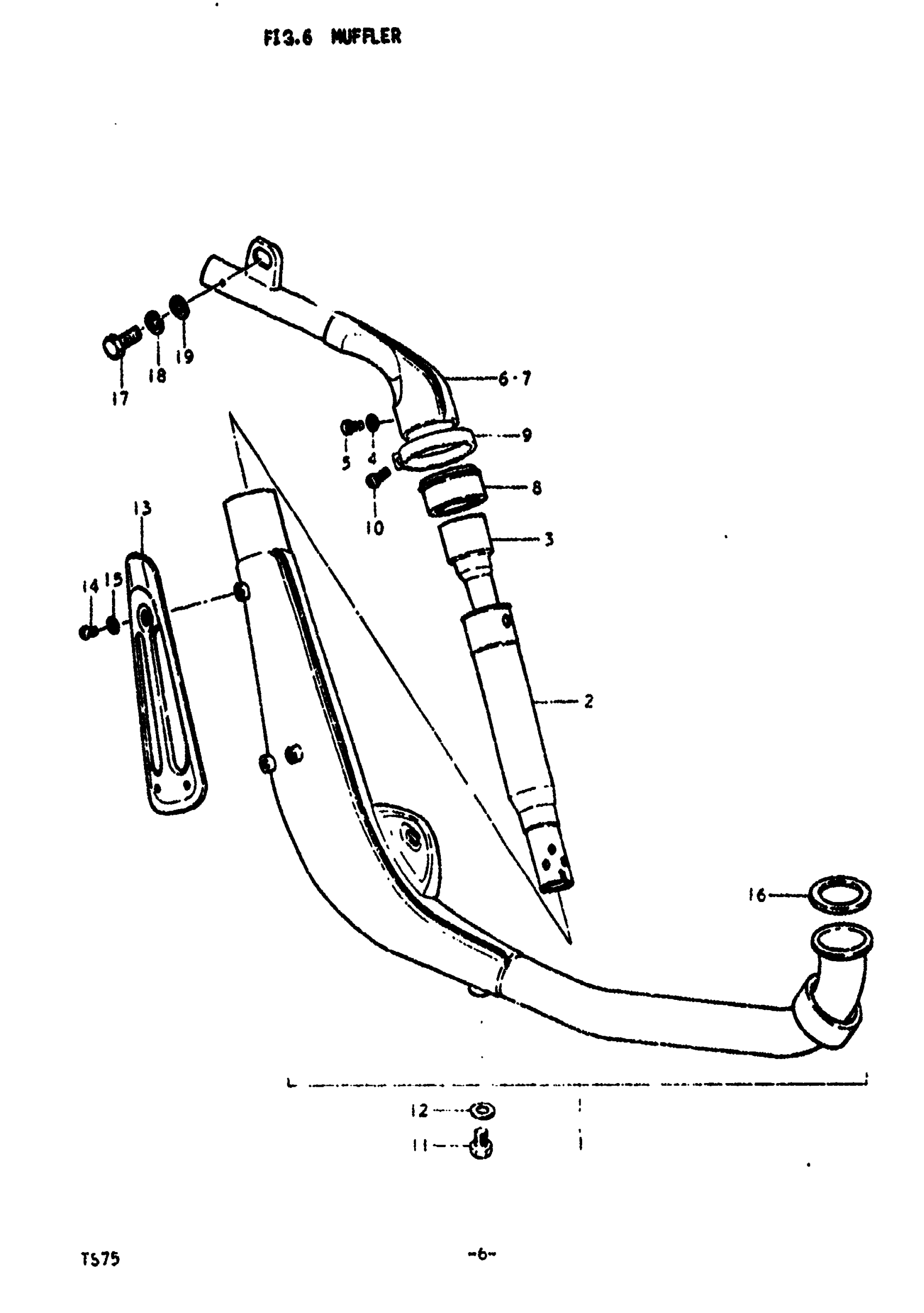

Suzuki TS75 (1977) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 14301-26101.

14301-26101-H01

Unavailable

2

BODY, ARRESTOR

14810-26101

Unavailable

3

TUBE, CLEAN OUT

14850-26100

Unavailable

4

GASKET, SPARK ARRESTOR

09168-06006

Unavailable

5

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.92

6

PIPE, MUFFLER TAIL | M,A

14630-26100

Unavailable

7

PIPE, MUFFLER TAIL | B

14630-26600

Unavailable

8

GASKET, MUFFLER TAIL PIPE

14634-25300

Unavailable

9

CLAMP, TAIL PIPE

09402-52601

Unavailable

10

SCREW This part replaces 02112-06258.

02112-06257

$1.78

11

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

12

GASKET | 10x14.2x2

09168-10002

$2.13

13

COVER, MUFFLER

14781-26100

Unavailable

14

SCREW This part replaces 02111-06087.

02112-06087

$1.49

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

.GASKET,EXHAUST This part replaces 14181-05010.

14181-18C00

$7.22

17

BOLT This part replaces 01122-10208.

01500-1020B

$3.16

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

WASHER This part replaces 08322-21108.

08322-01107

$2.15
