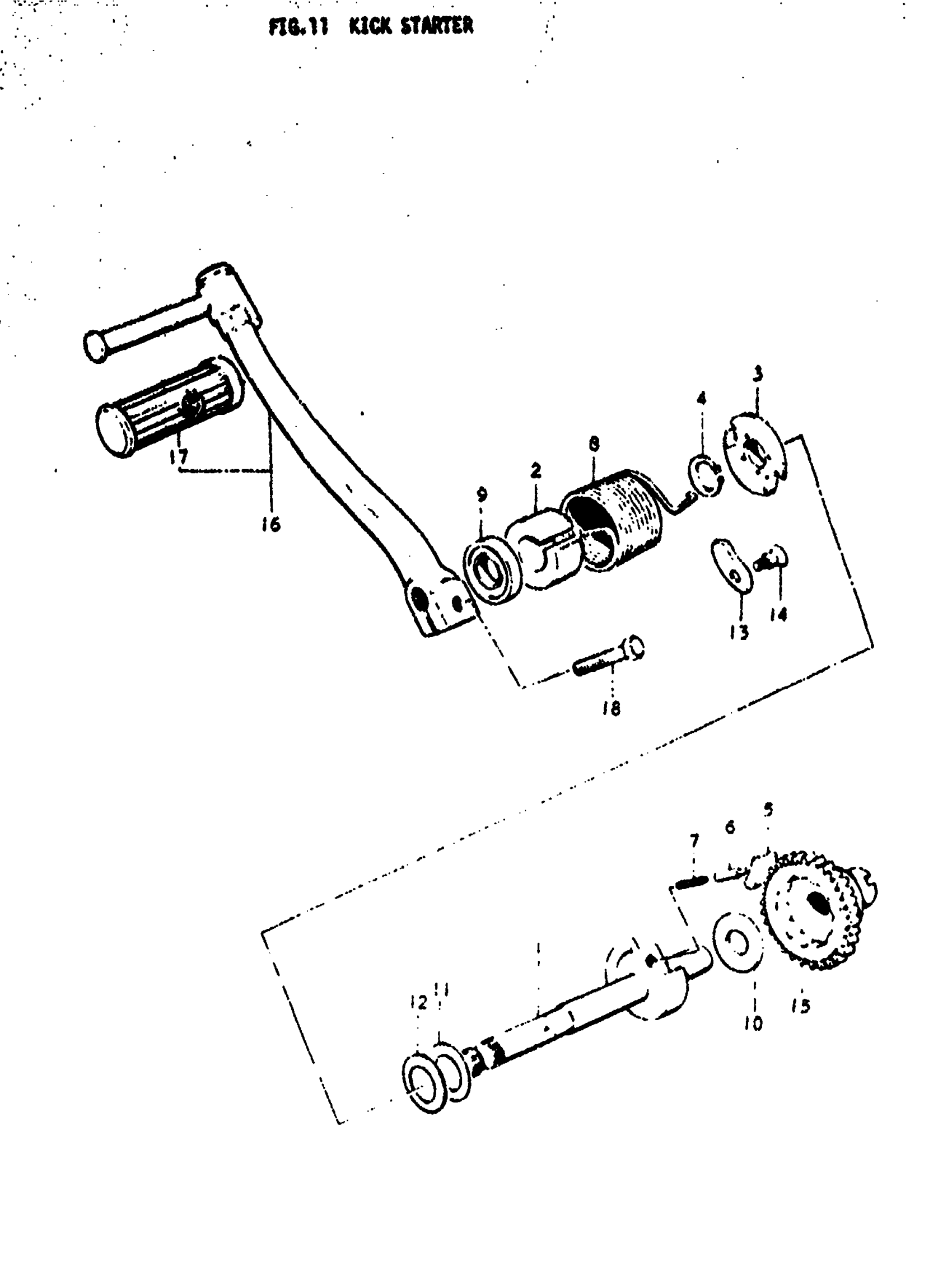

Suzuki TS75 (1977) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | TO 26211-35001

26211-35000

Unavailable

2

GUIDE, SPRING

26221-01030

Unavailable

3

HOLDER, SPRING

26222-01001

Unavailable

4

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

$1.91

5

PAWL, KICK STARTER

26231-01000

Unavailable

6

ROLLER | OD:5, L:8

09209-05012

Unavailable

7

SPRING | 3.4x4.5x12.4

09440-04010

$1.54

8

SPRING

09448-38002

Unavailable

9

OIL SEAL (14X24X6) | 14x24x6 This part replaces 09285-14001.

09285-14002

$16.88

10

THRUST WASHER | 12x30x1.5

08211-12302

$2.16

11

THRUST WASHER, RH OUTER

09160-14016

$1.93

12

WAVE WASHER, RH INNER

09164-14004

Unavailable

13

STOPPER

26232-01000

$6.38

14

SCREW

09139-06002

$2.38

15

GEAR, KICK STARTER DRIVE

26241-05001

Unavailable

16

LEVER ASSY,KICK | M,A This part replaces 26300-03002.

26300-35553

Unavailable

16

LEVER ASSY,KICK | B; Includes Item(s) 17 This part replaces 26300-13500.

26300-35553

Unavailable

17

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

18

BOLT This part replaces 01112-06208.

01500-06207

$2.28
