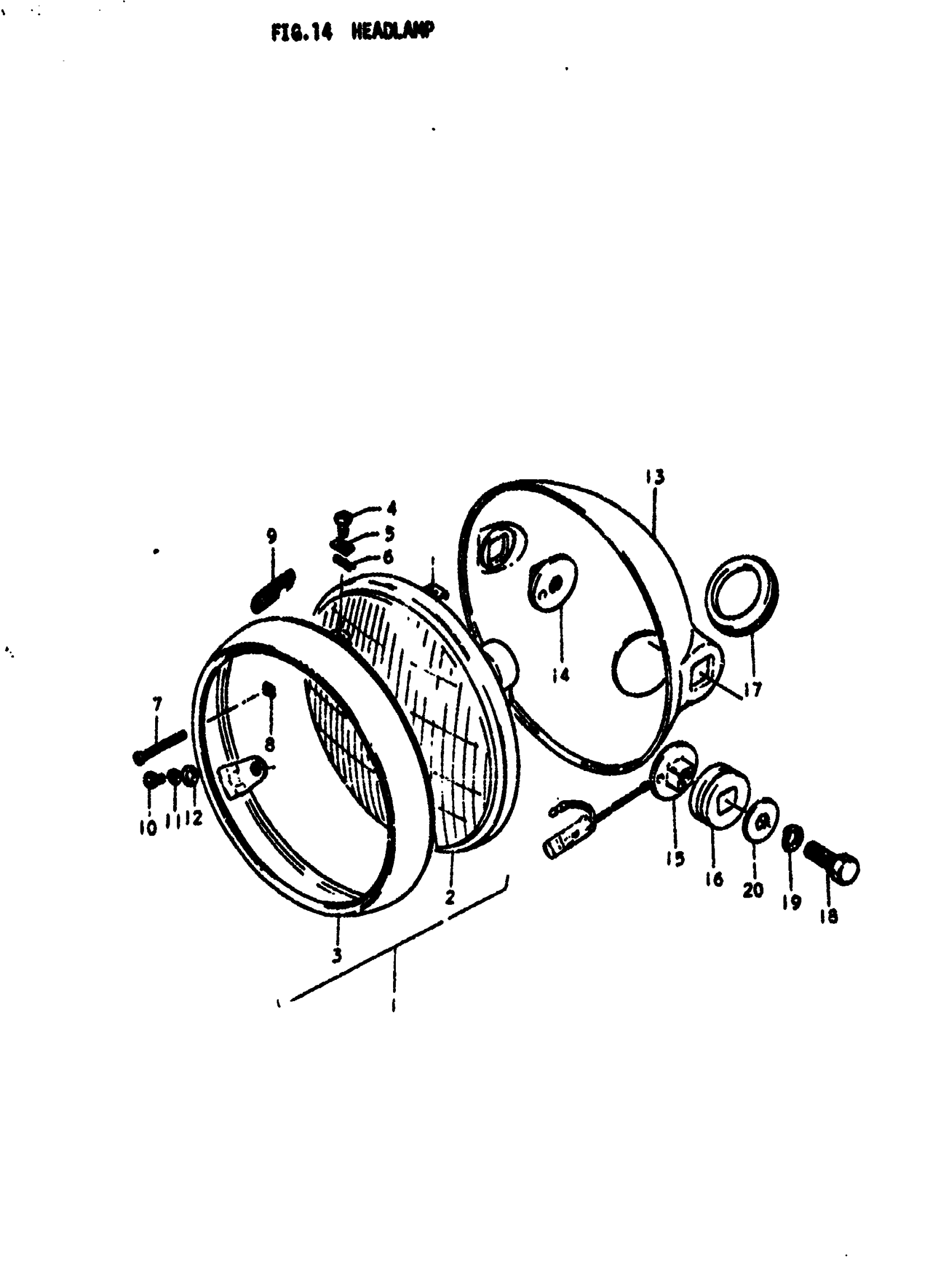

Suzuki TS75 (1977) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | M

35100-27620

Unavailable

1

HEADLAMP ASSY * | A,B; Includes Item(s) 2 - 9

35100-27621

Unavailable

2

UNIT | M; 6V, 15/15W

35121-27620

Unavailable

2

UNIT | A,B; 6V, 20/20W

35121-27621

Unavailable

3

RIM

35111-28610

Unavailable

4

SCREW | M

35136-19610

Unavailable

4

SCREW | A,B This part replaces 02111-05087.

02112-05087

$1.49

5

NUT This part replaces 35135-12610.

35155-48510

$2.28

6

SPRING | M

35137-27620

Unavailable

7

SCREW This part replaces 35151-27620.

35151-06020

Unavailable

8

NUT

35155-01321

Unavailable

9

SPRING

35154-12610

Unavailable

10

SCREW This part replaces 02211-04128.

02112-0412A

$1.49

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER This part replaces 08322-21048.

08322-01047

$1.86

13

NO DESCRIPTION AVAILABLE | M This part replaces 51810-26000-126.

51810-26000-13L

Unavailable

13

NO DESCRIPTION AVAILABLE | A,B This part replaces 51810-26000-291.

51810-26000-13L

Unavailable

14

SPACER,HEADLAMP This part replaces 51821-25300.

51821-36210

$6.07

15

SPACER, LH

51822-27301

Unavailable

16

CUSHION,HEADLAM This part replaces 51827-27301.

51827-27303

$3.66

17

GROMMET | M; FROM 51845-31030A,B; FROM 51845-31030

51845-31031

$4.52

18

BOLT This part replaces 01221-08207.

01204-08207

$2.30

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13
