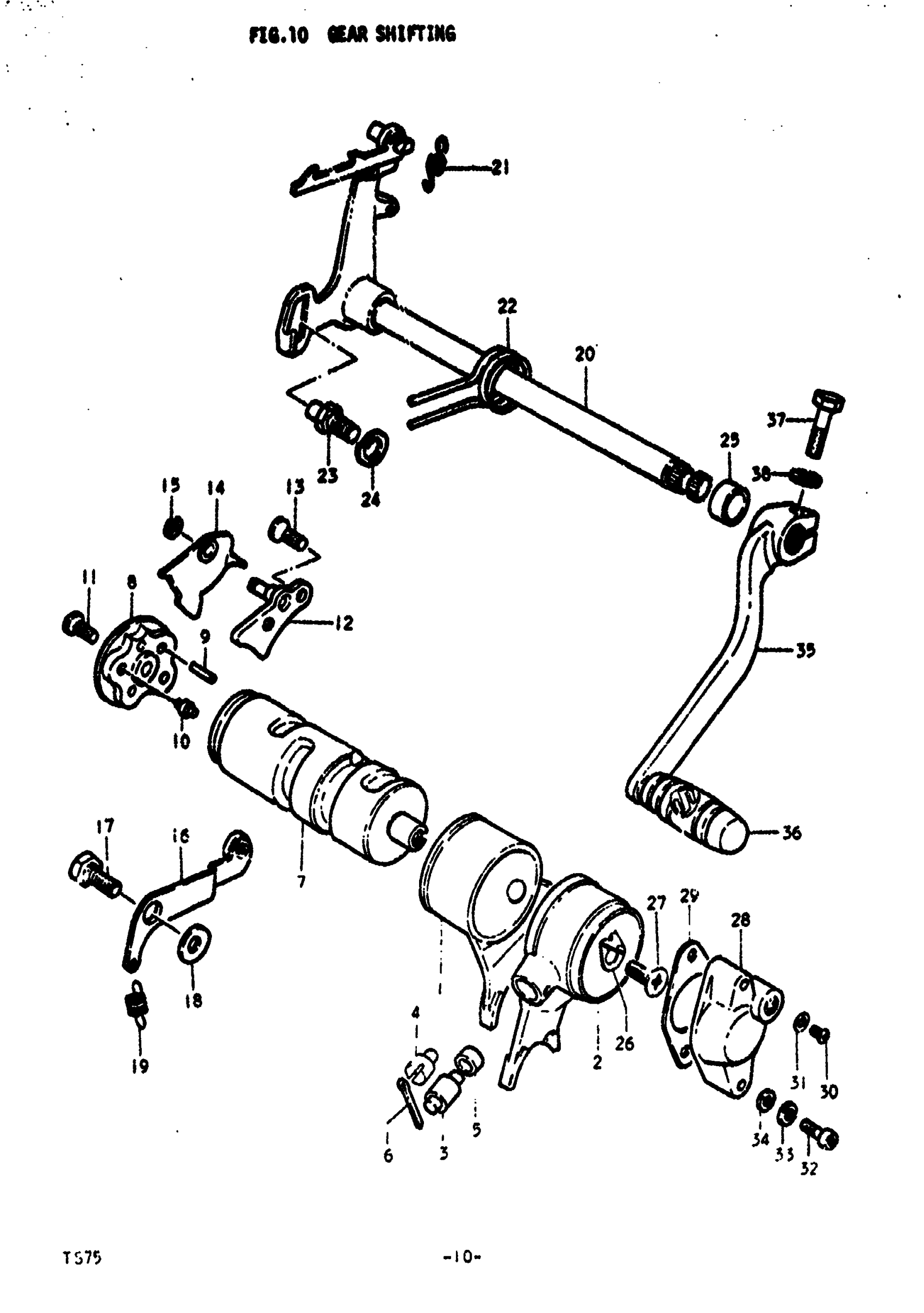

Suzuki TS75 (1977) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING (A) | M; ~F.NO.7575-17650 This part replaces 25211-26101.

25211-25101

Unavailable

1

FORK, GEAR SHIFTING (A)

25211-25101

Unavailable

2

FORK, GEAR SHIFTING (B)

25221-12100

Unavailable

3

PIN, FORK GUIDE | M; TO 09209-10002

09209-10003

Unavailable

4

PIN, FORK GUIDE | A,B

09209-10002

Unavailable

5

ROLLER This part replaces 09180-06004.

09180-06086

$2.50

6

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

7

CAM, GEAR SHIFTING

25311-12102

Unavailable

8

PLATE, CAM STOPPER

25380-26100

Unavailable

9

PIN, SHIFTING CAM | OD:4, L:12

09261-04001

$1.72

10

PIN, SHIFTING CAM

09209-04012

$2.53

11

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

12

GUIDE, SHIFTING CAM

25340-12101

Unavailable

13

SCREW This part replaces 02122-06168.

02122-06167

$1.49

14

PAWL, SHIFTING CAM STOPPER

25370-27100

Unavailable

15

E RING This part replaces 08332-11059.

08332-1105A

$1.78

16

STOPPER, SHIFTING CAM

25350-26100

Unavailable

17

BOLT

09111-06003

Unavailable

18

WASHER | 6.5x16x2.3

09160-06022

Unavailable

19

SPRING, PAUL RETURN

09443-07013

$2.07

20

SHAFT, GEAR SHIFTING

25510-26100

Unavailable

21

SPRING

09443-07013

$2.07

22

SPRING

09444-26008

$5.12

23

STOPPER

25671-19000

Unavailable

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

OIL SEAL (12X22X9) | 12X22X9 This part replaces 09285-12002.

09285-12006

$6.32

26

CONTACT, GEAR SHIFTING SWITCH | FROM 37711-05100

37711-05101

$4.21

27

SCREW This part replaces 02122-06128.

02122-06127

$1.84

28

SWITCH, NEWTRAL INDICATOR

37721-26000

Unavailable

29

GASKET

37712-26000

Unavailable

30

SCREW This part replaces 02111-03048.

02112-03047

$2.15

31

WASHER This part replaces 08322-21038.

08322-01037

$1.93

32

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

33

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

34

WASHER This part replaces 08322-21048.

08322-01047

$1.86

35

LEVER ASSY, GEAR SHIFTING | M,A

25600-05104

Unavailable

35

LEVER ASSY, GEAR SHIFTING | B; Includes Item(s) 36 This part replaces 25600-26100.

25600-05104

Unavailable

36

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

37

BOLT This part replaces 01112-06208.

01500-06207

$2.28

38

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13
