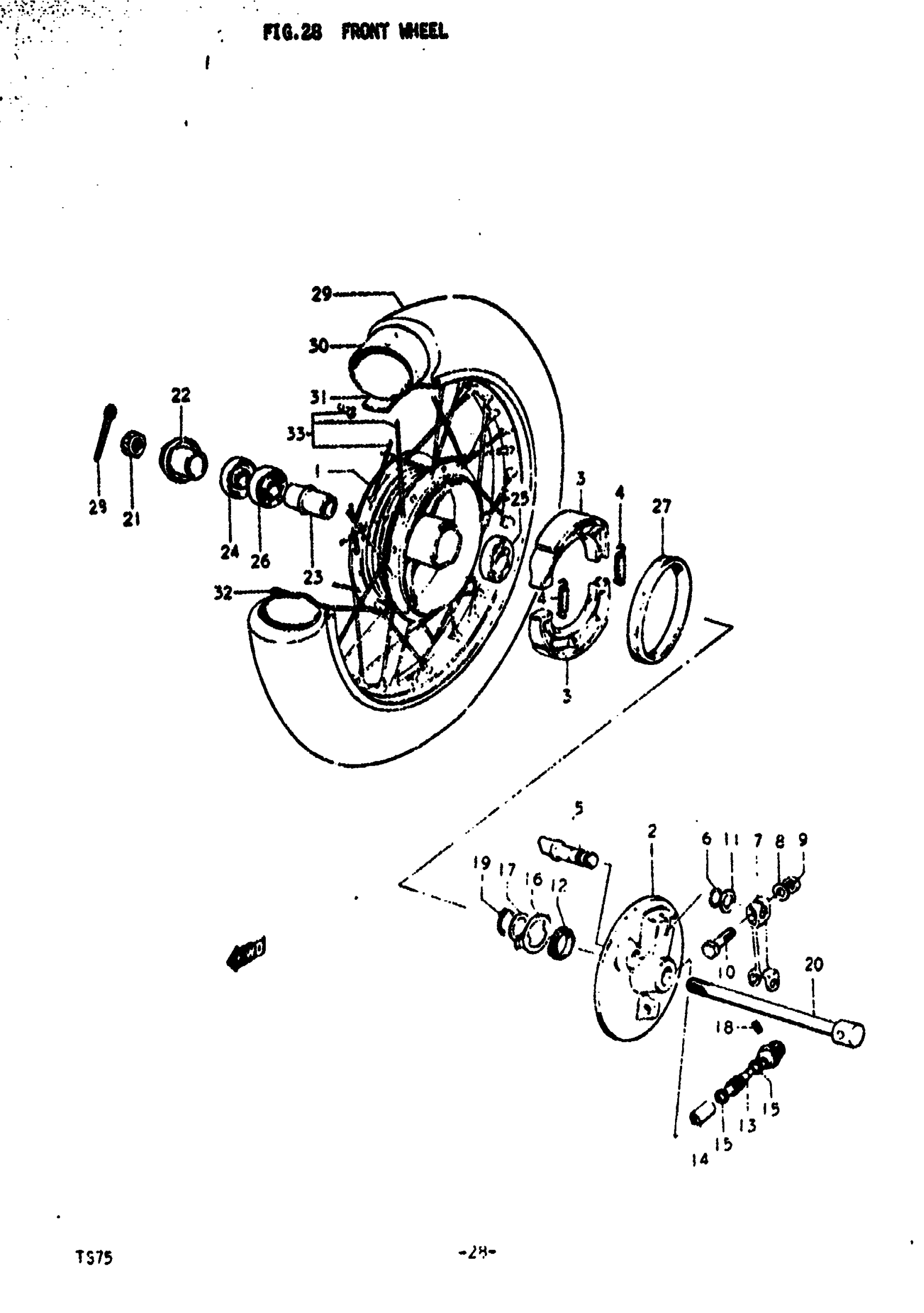

Suzuki TS75 (1977) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB | M,A

54110-01004

Unavailable

1

DRUM, FRONT HUB | B

54110-26100

Unavailable

2

PANEL, FRONT HUB | M,A

54210-03006

Unavailable

2

PANEL, FRONT HUB | B

54210-26101

Unavailable

3

SHOE/SPRING SET This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

2

SHAFT, BRAKE CAM

54441-01002

$18.80

6

DUST SEAL | 11.4x16x2x2.4

09280-12001

$2.90

7

LEVER, BRAKE CAM

54451-03002

$16.87

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER | 6x30 This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER, DUST SEAL | 12.5x20x1

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE | M,A This part replaces 54611-03000.

54611-03002

Unavailable

12

NO DESCRIPTION AVAILABLE | B This part replaces 54611-03600.

54611-03601

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 54621-03000.

54621-03001

Unavailable

14

BUSHING

54632-01001

$12.80

15

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER, DRIVE GEAR

54661-03000

Unavailable

17

THRUST WASHER

09160-16005

Unavailable

18

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

19

CIRCLIP This part replaces 08331-11159.

08331-3115A

$2.25

20

AXLE, FRONT This part replaces 54711-26100.

54711-04711

$33.12

21

NUT This part replaces 08314-11108.

08314-3110A

$1.99

22

SPACER, FR AXLE RH This part replaces 54740-26100.

54740-26101

$18.87

23

SPACER

54730-01000

Unavailable

24

OIL SEAL (15X31X5) | 15X31X9.5

09284-15001

$4.73

25

BEARING | SEALED BEAING This part replaces 08143-63000.

08143-6300B

$15.33

26

BEARING

08113-62000

$13.63

27

OIL SEAL | 43x58x7 This part replaces 09285-43001.

09283-43004

$14.03

28

PIN This part replaces 04111-20308.

04111-2030A

$1.50

29

TIRE | M,A; 2.50-16-4PR This part replaces 55100-26310.

55100-26610

Unavailable

29

TIRE | B; 2.50-16-4PR

55100-26610

Unavailable

30

TUBE, INNER | 2.50-16 This part replaces 55200-26110.

55200-08011

Unavailable

31

PROTECTOR This part replaces 55261-08010.

65261-37300

Unavailable

32

RIM, WHEEL | 1.40-16

55311-26120

Unavailable

33

NO DESCRIPTION AVAILABLE This part replaces 55300-26820.

55320-26120

Unavailable
