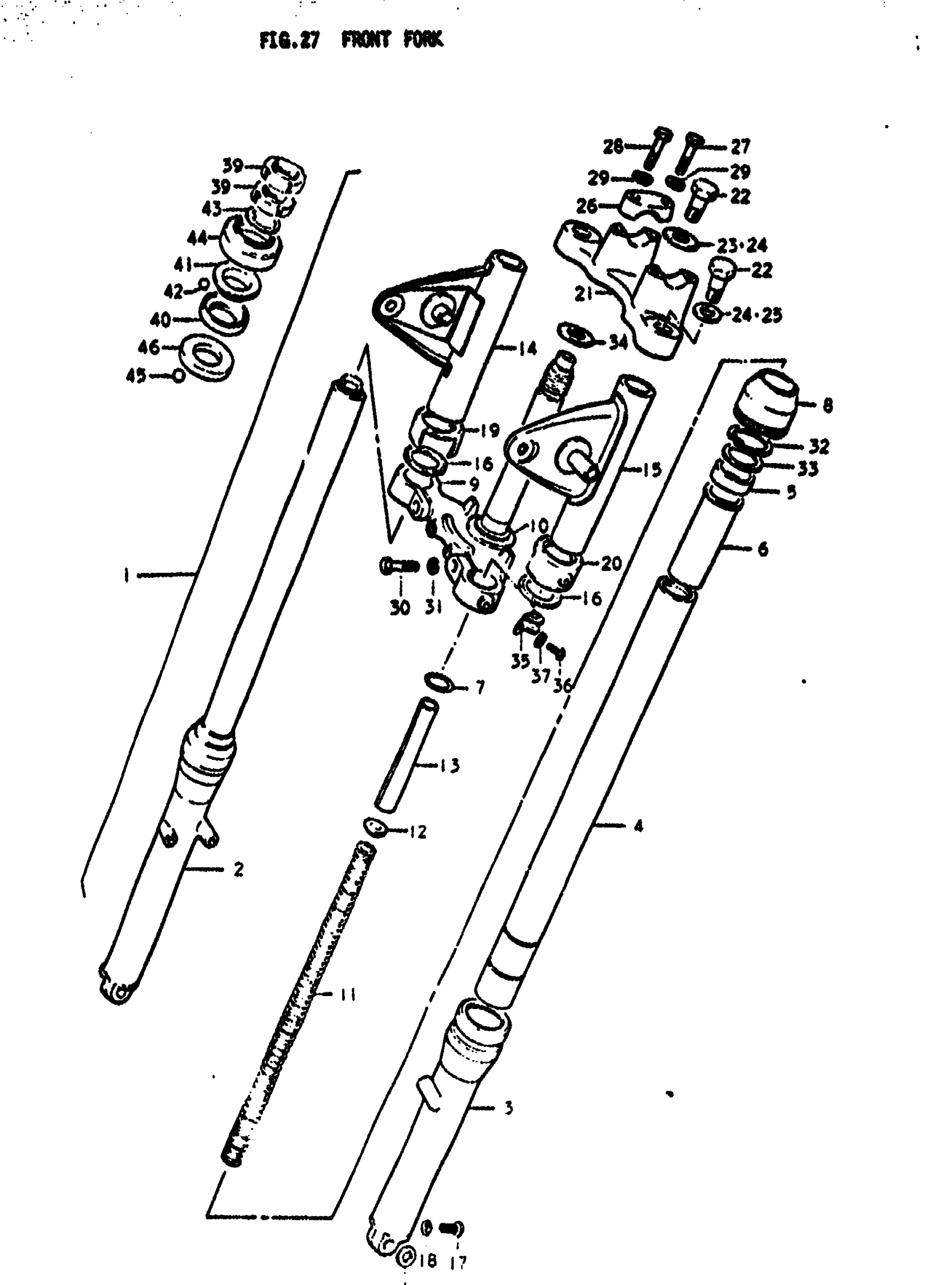

Suzuki TS75 (1977) FRONT FORK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M This part replaces 51100-26211-676.

51106-26211

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 22 This part replaces 51100-26211-291.

51106-26211

Unavailable

2

TUBE, OUTER RH

51130-26210

Unavailable

3

TUBE, OUTER LH

51140-26210

Unavailable

4

TUBE, INNER

51110-26210

Unavailable

5

OIL SEAL,FR FOR This part replaces 51153-27410.

51153-39140

$15.05

6

METAL, SLIDE

51152-27410

Unavailable

7

O RING | TO 51181-22011 This part replaces 51181-22010.

51181-22012

$3.73

8

DUST SEAL

51173-26210

Unavailable

9

STEM, STEERING

51410-26210

Unavailable

10

RACE, OUTER LOWER

51621-33001

$16.25

11

SPRING

51171-26210

Unavailable

12

GUIDE, SPRING UPPER

51172-26210

Unavailable

13

SPACER

51176-26210

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 51530-26210-126.

51500-26830-126

Unavailable

14

NO DESCRIPTION AVAILABLE | A,B This part replaces 51530-26210-291.

51500-26830-126

Unavailable

15

NO DESCRIPTION AVAILABLE | M This part replaces 51540-26210-126.

51500-26830-126

Unavailable

15

NO DESCRIPTION AVAILABLE | A,B This part replaces 51540-26210-291.

51500-26830-126

Unavailable

16

CUSHION

51553-26610

Unavailable

17

SCREW This part replaces 02111-04087.

02112-04087

$1.49

18

GASKET

51183-03010

$2.07

19

COVER, STEM RH

51554-26010

Unavailable

20

COVER, STEM LH

51557-26010

Unavailable

21

HEAD, STEERING HEAD

51311-26210-019

Unavailable

22

BOLT This part replaces 51351-20010.

51351-29400

$31.22

23

WASHER, STEERING | MB; Includes Item(s) 24 - 38

51356-22011

Unavailable

24

WASHER, STEERING | A

51356-22012

$6.80

25

WASHER, INNER TUBE | M; TO 51356-22011

51356-07011

Unavailable

26

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

$15.51

27

BOLT This part replaces 01221-08357.

01204-08357

$2.09

28

BOLT This part replaces 01221-08757.

01204-08757

Unavailable

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

BOLT | L:32

51451-08410

Unavailable

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

CIRCLIP This part replaces 08331-21409.

08331-41406

$2.10

33

WASHER, SUTER TUBE

51158-27410

Unavailable

34

WASHER, STTERING UPPER

51357-22010

Unavailable

35

CLIP

51453-05110

Unavailable

36

SCREW This part replaces 02112-06108.

02112-06107

$1.49

37

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

38

WASHER This part replaces 08322-21108.

08322-01107

$2.15

39

NUT, STEERING STEM

51631-05000

Unavailable

40

RACE,STEERING INNER UPPER

51611-20002

$11.95

41

RACE, UPPER

51621-25000

$12.40

42

STEEL BALL

06111-06003

$1.49

43

LOCK WASHER, STEERING | .5x34x2.3

09166-24001

Unavailable

44

DUST SEAL

51643-06001

Unavailable

45

STEEL BALL

06111-08003

$1.49

46

RACE, LOWER

51611-33002

$13.81
