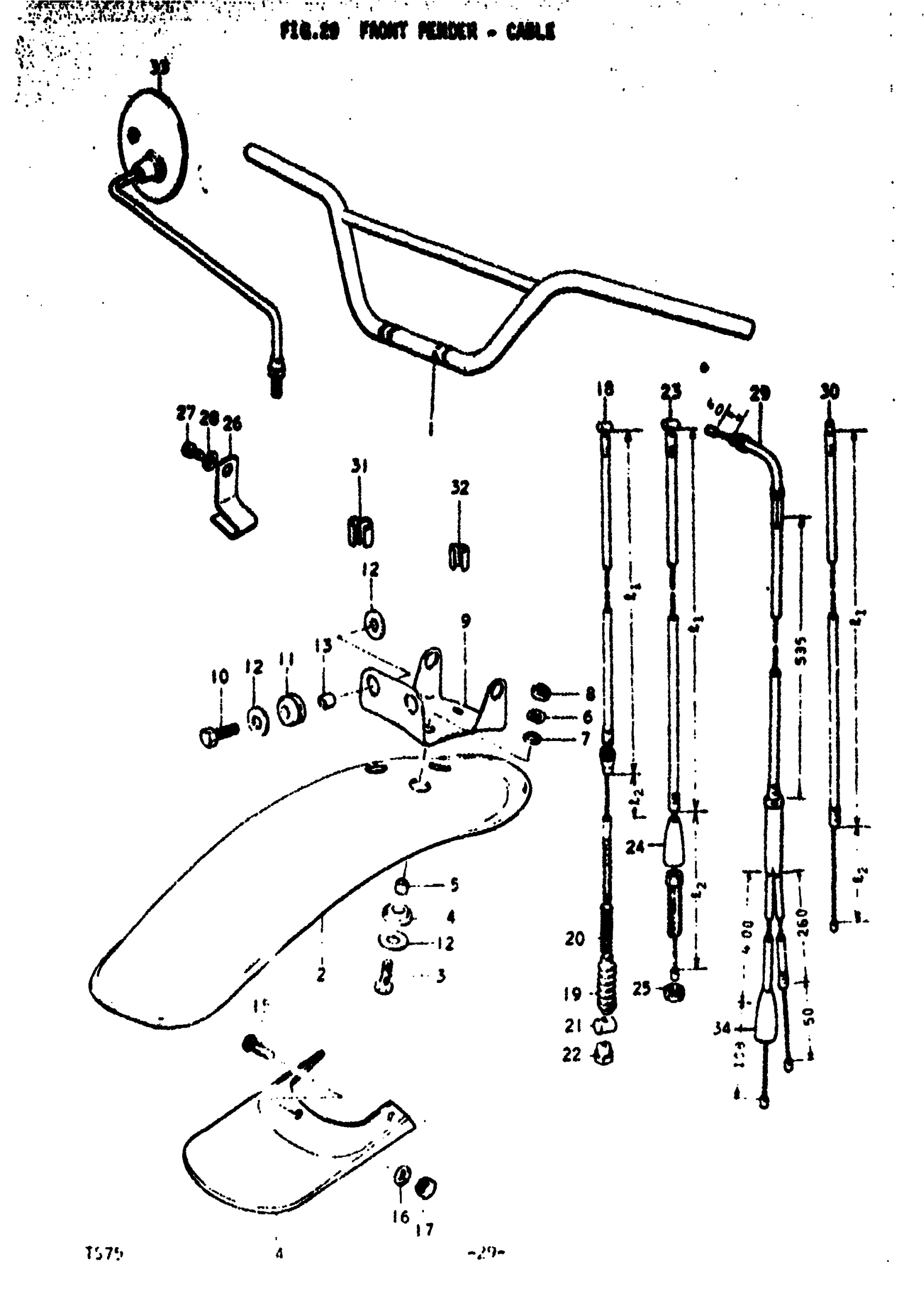

Suzuki TS75 (1977) FRONT FENDER - CABLE Diagram

#

Description
Price

1

HANDLEBAR | M,A; TO 56110-26101 This part replaces 56110-26100.

56110-26101

Unavailable

1

HANDLEBAR | B

56110-26101

Unavailable

2

NO DESCRIPTION AVAILABLE | M This part replaces 53111-26100-714.

53111-26100-737

Unavailable

2

NO DESCRIPTION AVAILABLE | A This part replaces 53111-26620-293.

53111-26620-737

Unavailable

2

NO DESCRIPTION AVAILABLE | B This part replaces 53111-26620-797.

53111-26620-737

Unavailable

3

BOLT

09100-06064

$1.61

4

CUSHION

09320-09006

Unavailable

5

SPACER

09180-07011

Unavailable

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

.NUT This part replaces 08311-11068.

08310-00067

$2.13

9

BRACE, FRONT FENDER

53211-26610

Unavailable

10

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

11

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

12

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

13

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

14

MUD FLAP | A,B

53411-26300

Unavailable

15

SCREW | A,B This part replaces 02141-04107.

02142-04107

$1.49

16

WASHER | A,B This part replaces 08322-21048.

08322-01047

$1.86

17

NUT | A,B This part replaces 08311-11048.

08310-00047

$2.23

18

NO DESCRIPTION AVAILABLE | L1:1000, L2:66; Includes Item(s) 19 - 22 This part replaces 58100-26100.

58100-39331

Unavailable

19

DUST SEAL

09287-07001

$2.00

20

SPRING

09440-06003

$2.44

21

LEVER PIN

09209-10001

$1.49

22

NUT

09150-05101

$3.04

23

CABLE ASSY, CLUTCH | L1:1000, L2: 108; Includes Item(s) 24 - 25

58200-26100

Unavailable

24

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

25

NUT This part replaces 08312-11088.

08310-00087

$2.13

26

CLAMP

09403-13301

Unavailable

27

BOLT This part replaces 01112-06108.

01500-06107

$2.06

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

NO DESCRIPTION AVAILABLE | FROM 58300-26300 This part replaces 58300-26301.

58300-26302

Unavailable

30

CABLE,STARTER | L1:930, L2:66 This part replaces 58410-08710.

58410-07500

$10.75

31

CLIP, CABLE B | L:10

09408-00002

$2.30

32

CLIP, CABLE C | L:10 TO 09408-00014

09408-00003

Unavailable

33

MIRROR ASSY,RR This part replaces 56500-31011.

56500-31014

$48.02

33

MIRROR ASSY,RR This part replaces 56600-31011.

56600-31014

$48.02

34

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30
