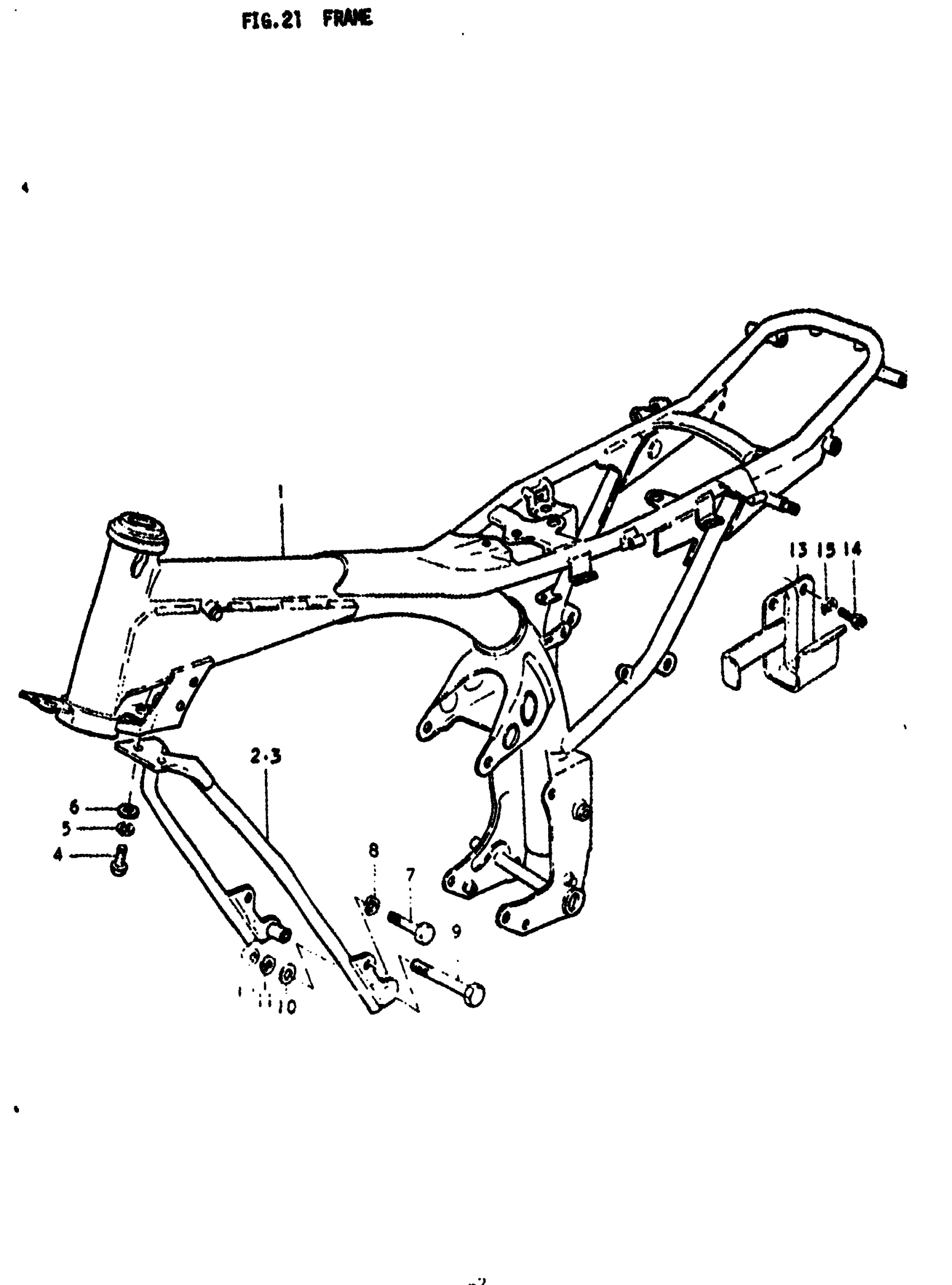

Suzuki TS75 (1977) FRAME Diagram

#

Description
Price

1

FRAME

41100-26001-019

Unavailable

2

DOWN TUBE, FRAME | M; TO 41300-26001

41300-26000

Unavailable

3

DOWN TUBE, FRAME | A,B

41300-26001

Unavailable

4

BOLT This part replaces 01112-06128.

01500-06127

$1.97

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

7

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

BOLT This part replaces 01122-08508.

01500-08507

$3.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

NUT This part replaces 08312-12088.

08310-00087

$2.13

13

HOLDER, TOOL

41550-26000

Unavailable

14

SCREW (6X10) | M This part replaces 09128-06004.

09128-06044

$1.49

14

BOLT | A,B This part replaces 01112-06108.

01500-06107

$2.06

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
