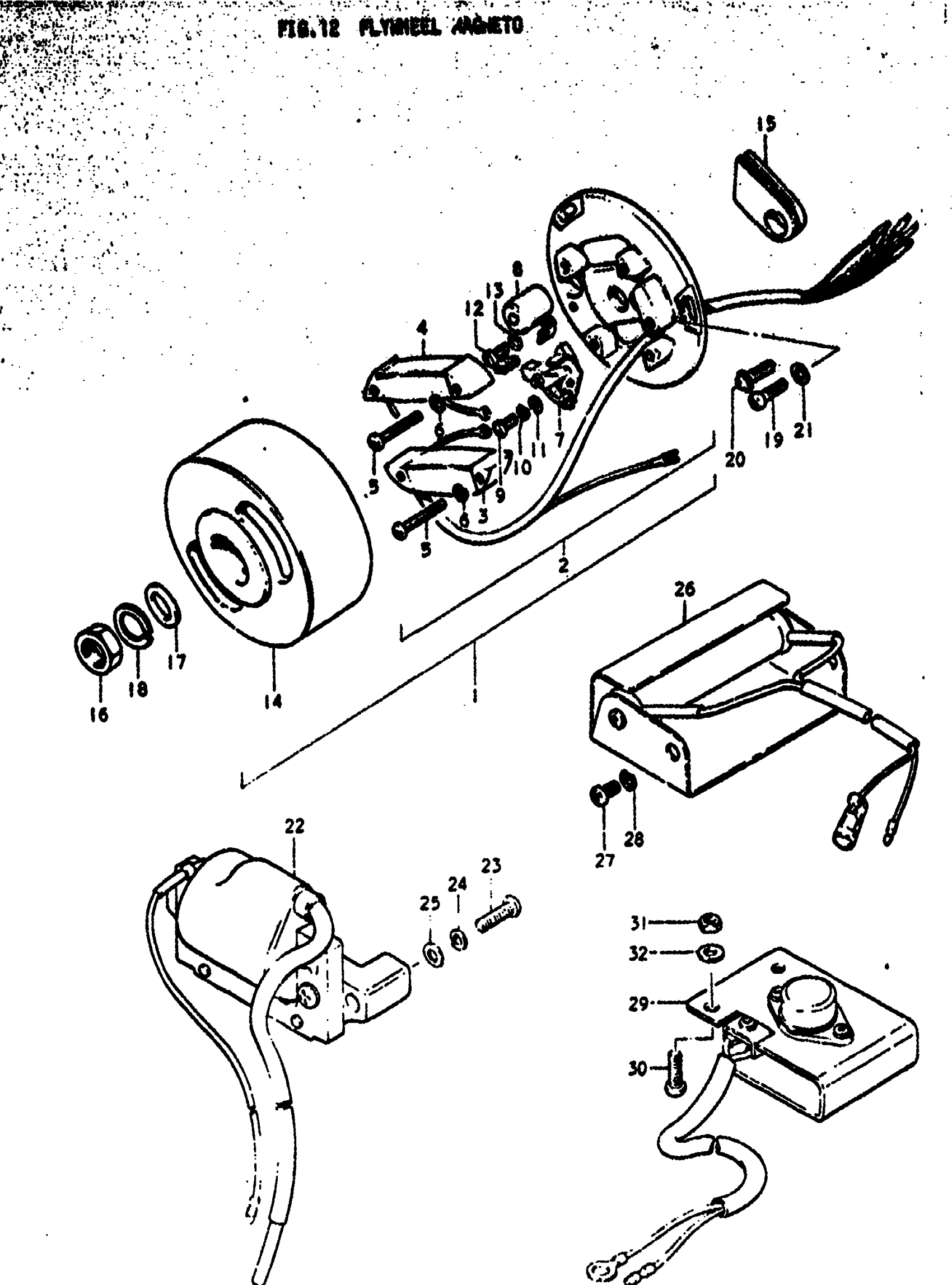

Suzuki TS75 (1977) FLYWHEEL MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | M This part replaces 32100-28614.

32101-28613

Unavailable

1

MAGNETO ASSY, FLYWHEEL | A,B; Includes Item(s) 2 - 14

32100-26615

Unavailable

2

STATOR ASSY | M

32101-26612

Unavailable

2

STATOR ASSY | A,B

32101-26613

Unavailable

3

COIL, LIGHTING | M

32120-28612

Unavailable

3

COIL, LIGHTING | A,B

32120-26613

Unavailable

4

COIL, PRIMARY | M,A This part replaces 32140-26611.

32140-26612

Unavailable

4

COIL, PRIMARY | B

32140-26612

Unavailable

5

SCREW

02111-04258

Unavailable

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

CONTACT POINT This part replaces 32240-28010.

32240-43012

$38.45

8

CONDENSER

32341-03110

Unavailable

9

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

WASHER This part replaces 08322-21048.

08322-01047

$1.86

12

SCREW This part replaces 02111-04107.

02112-04107

$1.55

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

ROTOR, FLYWHEEL | M

32102-26613

Unavailable

14

ROTOR, FLYWHEEL | A,B

32102-26614

Unavailable

15

GROMMET, MAGNETO READ WIRE

09309-09003

Unavailable

16

NUT This part replaces 08311-11108.

08310-00107

$2.19

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

SCREW | M This part replaces 02112-05168.

02112-05167

$1.97

20

SCREW | A,B

09139-05011

$2.38

21

WASHER | M This part replaces 08322-21058.

08322-01057

$2.13

22

IGNITION COIL A This part replaces 33410-22220.

33410-22221

Unavailable

23

SCREW This part replaces 02111-05127.

02112-05127

$1.97

24

LOCK WASHER | M This part replaces 08321-21058.

08321-0105A

$1.84

25

WASHER | M This part replaces 08322-21058.

08322-01057

$2.13

26

RESISTOR ASSY, MAGNETO | M

36500-26611

Unavailable

27

SCREW | M This part replaces 02111-06087.

02112-06087

$1.49

28

LOCK WASHER | M This part replaces 08321-21068.

08321-01067

$2.13

29

REGULATOR, VOLTAGE | B This part replaces 32500-27600.

32500-25600

Unavailable

30

SCREW | B This part replaces 02112-06128.

02112-06127

$1.84

31

.NUT | B This part replaces 08311-11068.

08310-00067

$2.13

32

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13
