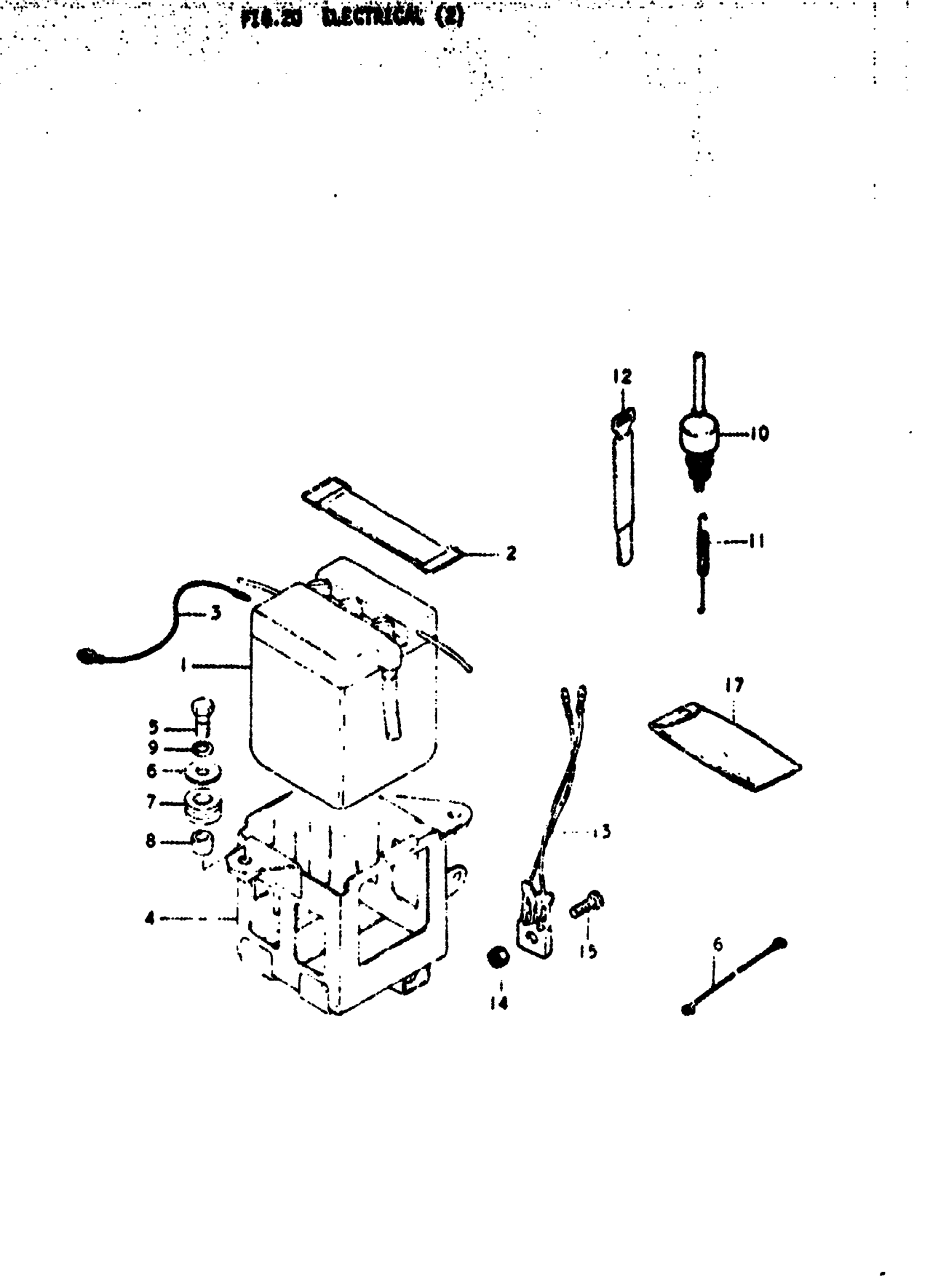

Suzuki TS75 (1977) ELECTRICAL (2) Diagram

#

Description
Price

1

BATTERY ASSY | 6V, 4AH

33610-03010

Unavailable

2

BAND, BETTERY

09462-00001

$4.56

3

LEAD WIRE, BETTERY (-)

36862-27690

$5.20

4

HOLDER, BATTERY | M,A This part replaces 41540-26002.

41540-26003

Unavailable

4

HOLDER, BATTERY | B

41540-26003

Unavailable

5

BOLT This part replaces 01112-06208.

01500-06207

$2.28

6

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

7

CUSHION (8.5X20X8) | 6.5x20x1.2 This part replaces 09320-08007.

09320-08510

$1.97

8

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

SWITCH ASSY, BRAKE LAMP

37740-20010

$24.43

11

SPRING

09443-06019

$3.42

12

CLAMP | L:90 FROM 09407-09301 This part replaces 09407-11302.

09407-18302

$2.28

13

DIODE | TO 32800-19062 This part replaces 32800-19061.

32800-16A00

$23.07

14

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

SCREW | A,B This part replaces 02111-05207.

02112-05207

$1.97

16

LEAD WIRE, ENGINE (-) This part replaces 36852-26600.

36851-02331

Unavailable

17

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02
