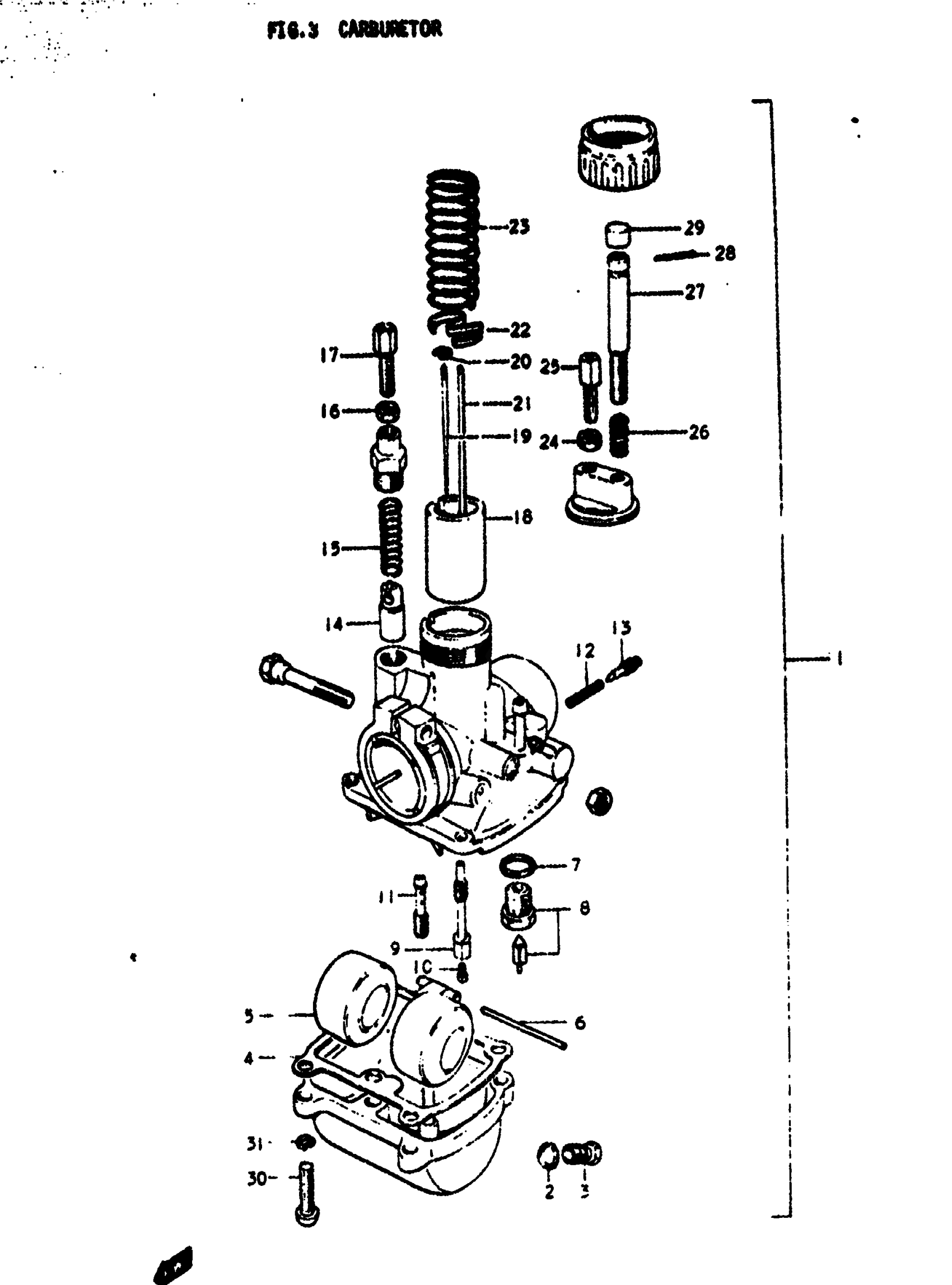

Suzuki TS75 (1977) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 2 - 31

13200-26110

Unavailable

2

GASKET, DRAIN PLUG

13249-05010

$1.98

3

PLUG, DRAIN

13247-05010

$5.11

4

GASKET, FLOAT CHAMBER This part replaces 13251-01010.

13251-01011

$5.45

5

FLOAT.

13252-02010

Unavailable

6

PIN, FLOAT | TO 13254-35013

13254-11010

Unavailable

7

GASKET, VALVE SEET

13392-01010

$2.15

8

VALVE, NEEDLE This part replaces 13370-26010.

13370-23010

$57.83

9

JET, NEEDLE | E-3

09494-00133

Unavailable

10

JET, MAIN | #77.5 TO 09491-77003

09491-77001

Unavailable

11

JET, PILOT (22.5) | #22.5 This part replaces 09492-22002.

09492-22006

$11.38

12

SPRING, PILOT AIR SCREW

13268-01010

$5.28

13

SCREW, PILOT AIR ADJUSTING

13269-01010

$14.20

14

PLUNGER, STARTER

13411-01010

$18.43

15

SPRING, PLUNGER

13417-01010

$4.62

16

NUT

13661-03010

$5.67

17

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

18

VALVE, THROTTLE | CA:2.0

13551-26110

Unavailable

19

NOZZLE, NEEDLE | 3E3

13383-19010

$16.00

20

E RING This part replaces 13394-12110.

13394-40D00

$5.43

21

ROD, THROTTLE VALVE STOP

13296-05010

$7.95

22

PLATE This part replaces 13581-01010.

13581-07910

Unavailable

23

SPRING, THROTTLE VALVE

13573-05010

Unavailable

24

NUT

13661-03010

$5.67

25

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

26

SPRING, STOP THROTTLE VAIVE

13268-03010

Unavailable

27

STOP SCREW, THROTTLE VAIVE

13267-05010

$14.20

28

PIN This part replaces 04111-12108.

04111-1210A

$1.50

29

CAP

13688-08010

$4.43

30

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

31

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84
