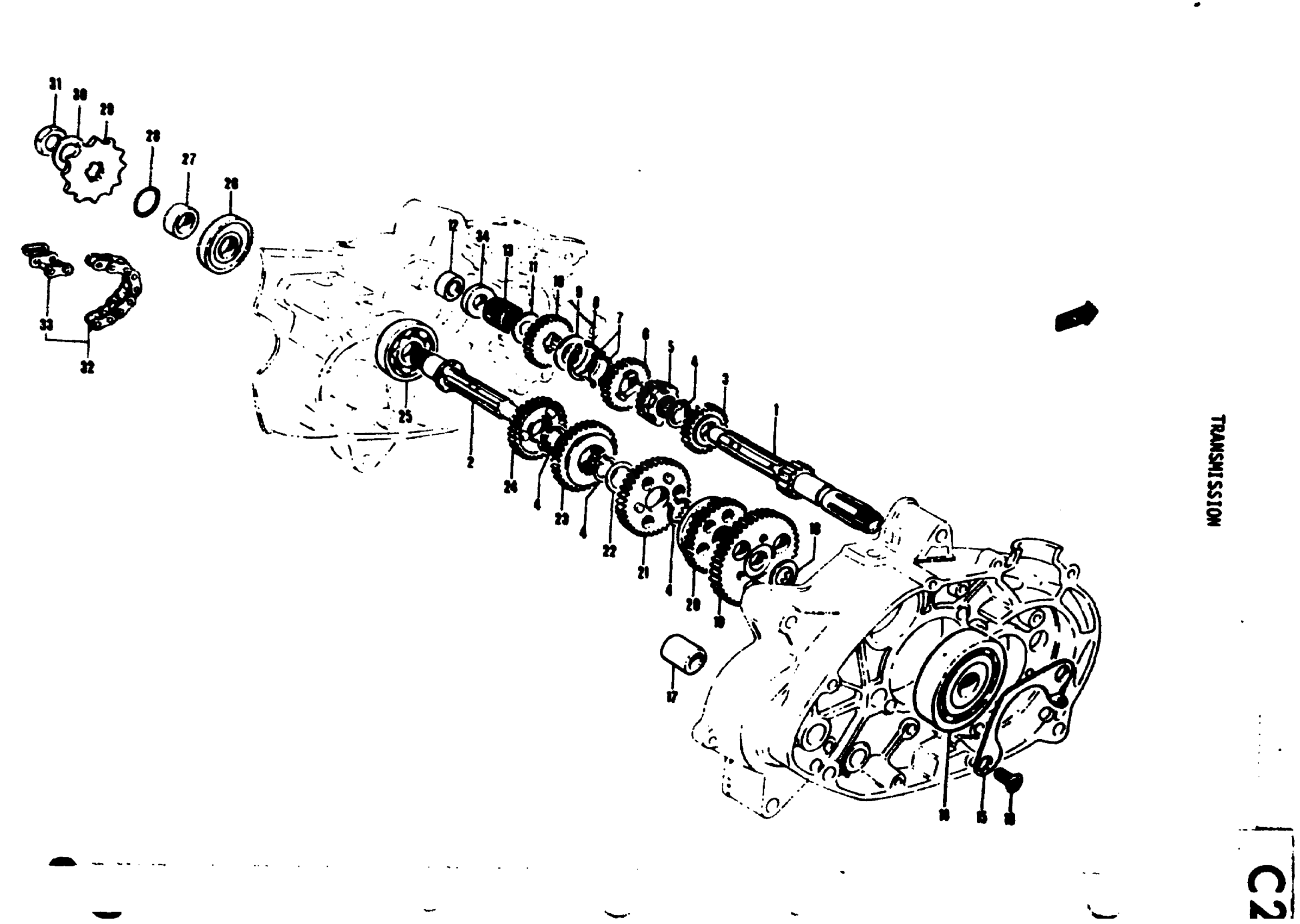

Suzuki TS50 (1974) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER | NT:12

24121-05100

Unavailable

2

SHAFT, DRIVE

24131-05100

Unavailable

3

GEAR, 3RD DRIVE | NT:19, F.NO. 38585~

24231-05101

Unavailable

4

CIRCLIP

09380-17001

$1.98

5

GEAR, 2ND DRIVE | NT:15, F.NO. 38385~

24221-05101

Unavailable

6

GEAR, 4TH DRIVE | NT:25

24241-05100

Unavailable

7

RING, KNOCK

09399-14001

Unavailable

8

CIRCLIP

09380-26001

Unavailable

9

THRUST WASHER | 17x29x1.5

08211-17282

$2.70

10

GEAR, 5TH DRIVE | NT:28

24251-05100

Unavailable

11

THRUST WASHER | 12x24x1

08211-12261

$2.50

12

BUSH | 12x19x11

09300-12008

Unavailable

13

BEARING | 12x19x12

09263-12001

Unavailable

14

BEARING | 17x62x10

09262-17012

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 24741-05000.

24741-35000

Unavailable

16

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

17

BUSHING, DRIVE SHAFT | 12x19x11

09300-12008

Unavailable

18

THRUST WASHER | 12x24x1.5

09160-12015

Unavailable

19

GEAR, 1ST DRIVEN | NT:44

24310-05102

Unavailable

20

GEAR, 3RD DRIVEN | NT:30, F.NO. 38585~

24331-05102

Unavailable

21

GEAR, 2ND DRIVEN | NT:32, F.NO. 38585~

24321-05103

Unavailable

22

THRUST WASHER

09167-17003

Unavailable

23

GEAR, 4TH DRIVEN | NT:32

24341-05100

Unavailable

24

GEAR, 5TH DRIVEN | NT:30

24351-05100

Unavailable

25

BALL BEARING

08113-63030

$23.65

26

OIL SEAL | 21x40x7

09283-21001

$12.70

27

SPACER | 17x21x13

09180-17008

$8.58

28

O RING | ID:17, D:1

09280-17001

$1.49

29

SPROCKET, ENGINE | NT:15

27511-26000

Unavailable

29

SPROCKET, ENGIN | NT:11, OPT This part replaces 27511-01700.

27511-01701

$18.20

29

SPROCKET, ENGINE | NT:13, OPT

27511-19000

$14.98

29

SPROCKET, ENGINE | NT:14, OPT

27511-19700

Unavailable

30

WASHER | 13x33x1

09167-16001

$1.87

31

NUT

09140-16002

$3.16

32

CHAIN ASSY,DRIV | Includes Item(s) 33 This part replaces 27600-05011.

27600-01012-130

Unavailable

33

JOINT (DID) This part replaces 27620-01011.

27620-01012

$6.87

34

SEAL OIL(5.5X16 This part replaces 09285-05004.

09285-05007

$4.47
