1974 Suzuki TS50 Throttle Grip - Handle Switch Diagram

← All diagrams

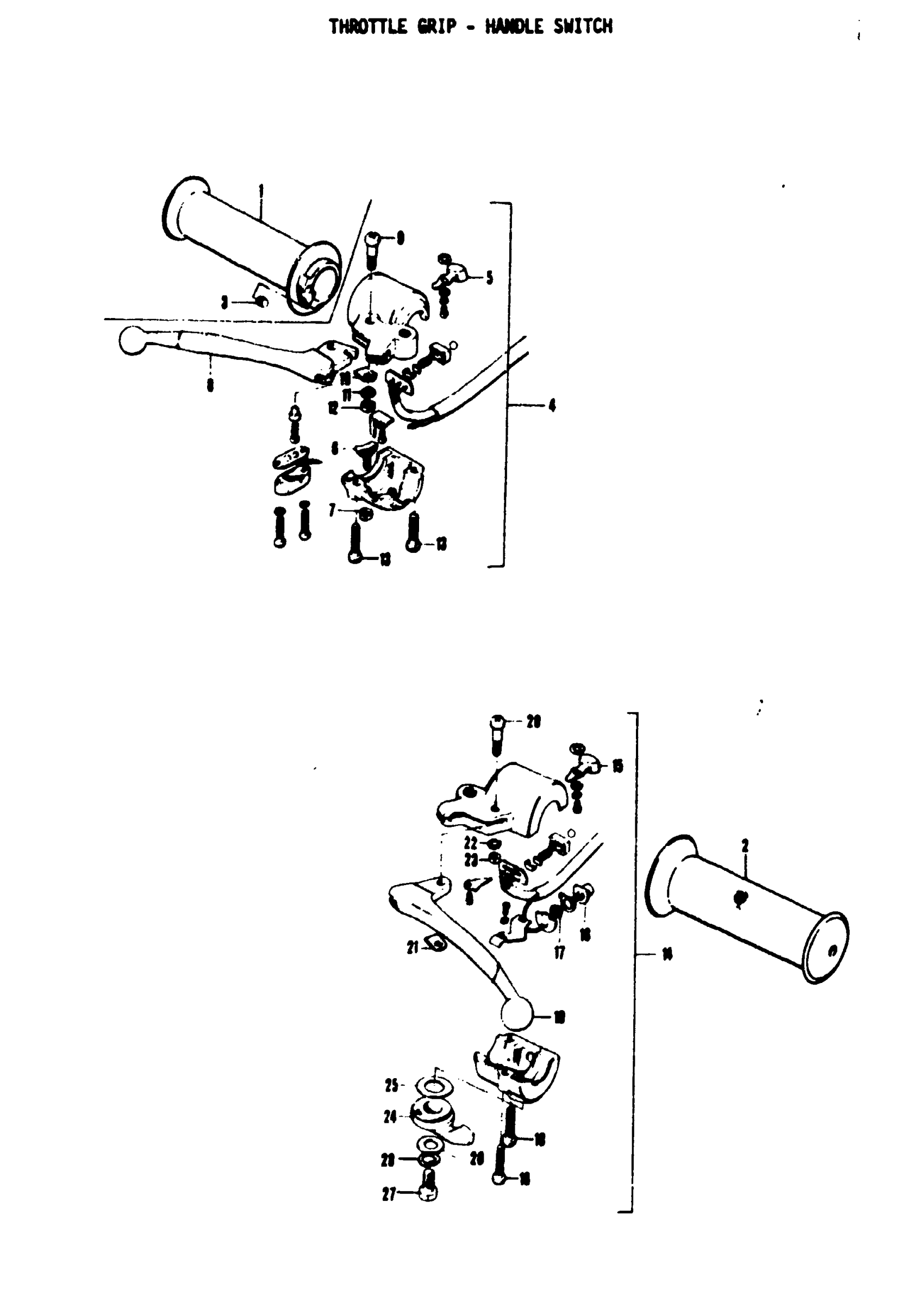

Find the part on the Throttle Grip - Handle Switch diagram for your 1974 Suzuki TS50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Suzuki TS50 Throttle Grip - Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-20601

1
Out of stock

2

GRIP, LH

57211-20601

1
Out of stock

3

PIECE, END

58631-07010

1
Out of stock

4

NO DESCRIPTION AVAILABLE | TS50,TS50,TS50 This part replaces 57300-22210.

57300-22212

1
Out of stock

4

SWITCH ASSY, RH | TS50; Includes Item(s) 5 - 13

57300-20622

—
Out of stock

5

KNOB, SWITCH

57320-01011

1
Out of stock

6

ADJUSTER, THROTTLE GRIP

57390-07011

1
Out of stock

7

NUT This part replaces 08311-11058.

08310-00057

1
Out of stock

8

BRAKE LEVER This part replaces 57421-27210.

57421-27212

1
Out of stock

9

SCREW This part replaces 57431-01011.

57431-01012

1
Out of stock

10

SPACER, LEVER

57435-20010

1
Out of stock

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

12

NUT This part replaces 08311-11058.

08310-00057

1
Out of stock

13

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

2
Out of stock

14

SWITCH ASSY, LH | TS50,TS50; TO 57500-27211

57500-27210

—
Out of stock

14

LEVER S/W ASSY | TS50 This part replaces 57500-27211.

57500-21014

1
Out of stock

14

LEVER S/W ASSY | TS50; Includes Item(s) 15 - 28 This part replaces 57500-21012.

57500-21014

1
Out of stock

15

KNOB, SWITCH | TS50,TS50,TS50

57320-01011

1
Out of stock

16

BUTTON, HORN

57370-01311

1
Out of stock

17

SPRING, HORN BUTTON

57382-01311

1
Out of stock

18

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

2
Out of stock

19

LEVER, CLUTCH

57621-27210

1
Out of stock

20

SCREW This part replaces 57431-01011.

57431-01012

1
Out of stock

21

SPACER, LEVER

57435-20010

1
Out of stock

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

23

NUT This part replaces 08311-11058.

08310-00057

1
Out of stock

24

LEVER, STARTER | TS50,TS50,TS50 This part replaces 58721-03011.

58721-25611

1
Out of stock

24

LEVER, STARTER | TS50

58721-25611

1
Out of stock

25

WASHER

58722-03010

1
Out of stock

26

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

1
Out of stock

27

BOLT This part replaces 01112-06128.

01500-06127

1
Out of stock

28

1

$2.28

In stock
