1974 Suzuki TS50 Flywheel Magneto Diagram

← All diagrams

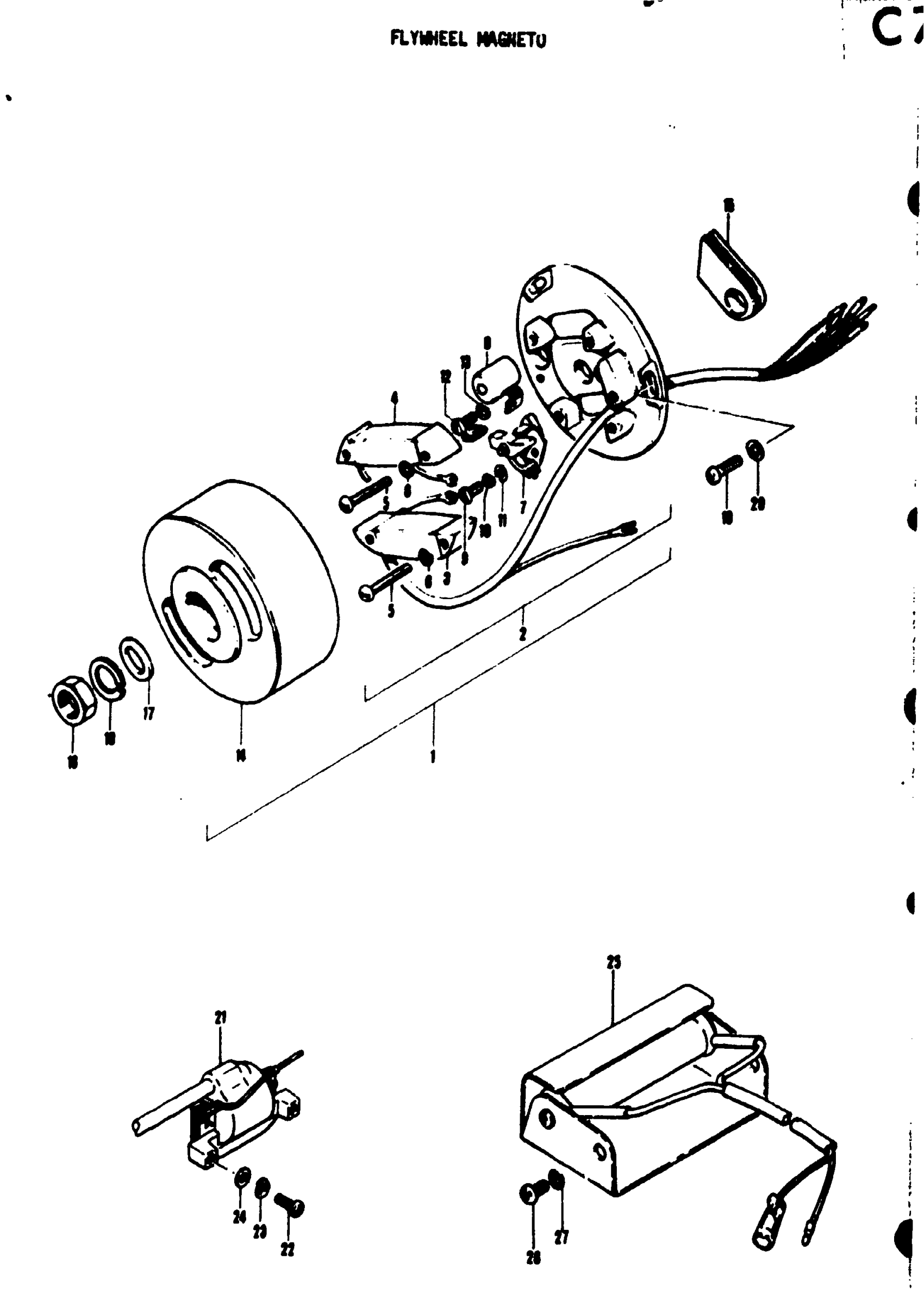

Find the part on the Flywheel Magneto diagram for your 1974 Suzuki TS50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Suzuki TS50 Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSY, FLYWHEEL | TO 32100-26612

32100-26610

—
Out of stock

1

MAGNETO ASSY, FLYWHEEL

32100-26612

—
Out of stock

1

NO DESCRIPTION AVAILABLE | ~F. NO. 19166 This part replaces 32100-22011.

32100-43010

1
Out of stock

1

MAGNETO ASSY, FLYWHEEL | Includes Item(s) 2 - 14

32100-26613

—
Out of stock

2

STATOR ASSY

32101-26610

—
Out of stock

2

NO DESCRIPTION AVAILABLE | ~F. NO. 19166 This part replaces 32101-22010.

32101-22011

1
Out of stock

2

STATOR ASSY

32101-26611

—
Out of stock

3

COIL, LIGHTING

32120-26610

1
Out of stock

3

COIL, LIGHTING | ~F. NO. 19166

32120-03110

1
Out of stock

3

COIL, LIGHTING

32120-26611

—
Out of stock

4

COIL, PRIMARY This part replaces 32140-03110.

32140-26612

1
Out of stock

4

COIL, PRIMARY This part replaces 32140-26611.

32140-26612

1
Out of stock

5

SCREW

02111-04258

—
Out of stock

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

4
Out of stock

7

CONTACT POINT This part replaces 32240-28010.

32240-43012

1
Out of stock

8

CONDENSER

32341-03110

1
Out of stock

9

SCREW This part replaces 02311-04108.

02112-0410A

1
Out of stock

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

1
Out of stock

11

WASHER This part replaces 08322-21048.

08322-01047

1
Out of stock

12

SCREW This part replaces 02311-04108.

02112-0410A

1
Out of stock

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

1
Out of stock

14

ROTOR, FLYWHEEL

32102-26613

—
Out of stock

14

ROTOR, FLYWHEEL

32102-22011

1
Out of stock

15

GROMMET, MAGNETO READ WIRE

09309-09003

1
Out of stock

16

NUT This part replaces 08311-11108.

08310-00107

1
Out of stock

17

WASHER This part replaces 08322-11108.

08322-01107

1
Out of stock

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

19

SCREW This part replaces 02112-05168.

02112-05167

3
Out of stock

20

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

21

IGNITION COIL A This part replaces 33410-22220.

33410-22221

1
Out of stock

22

SCREW This part replaces 02111-05127.

02112-05127

2
Out of stock

23

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

24

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

25

RESISTOR ASSY, MAGNETO

36500-26611

1
Out of stock

26

SCREW This part replaces 02111-06087.

02112-06087

2
Out of stock

27

2

$2.28

In stock
