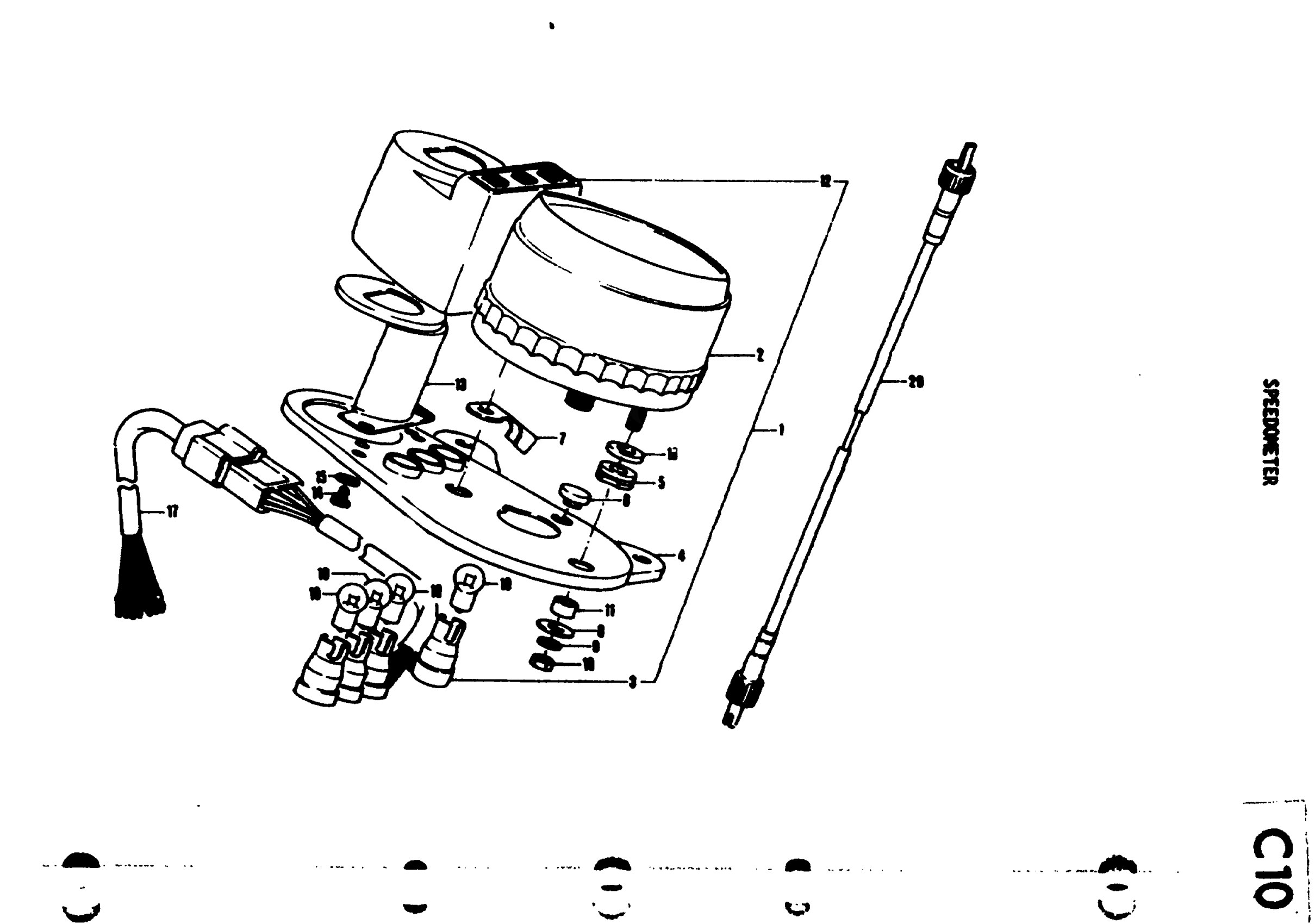

Suzuki TS50 (1974) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | TS50L; MILE; Includes Item(s) 2 - 17

34100-26612-999

Unavailable

2

SPEEDOMETER | TS50L

34101-26612

Unavailable

3

SOCKET ASSY | TS50L

34170-25612

Unavailable

4

NO DESCRIPTION AVAILABLE | TS50L This part replaces 34950-26610.

34950-26611

Unavailable

5

CUSHION | TS50L

34282-31000

Unavailable

6

CUSHION | TS50L

34956-28011

Unavailable

7

CLAMP | TS50L

34961-25710

Unavailable

8

WASHER (5.5X16X1.2) | TS50L; 5.5x16x1.2 This part replaces 09160-05017.

09160-05043

$2.30

9

LOCK WASHER | TS50L This part replaces 08321-21058.

08321-0105A

$1.84

10

NUT | TS50L This part replaces 08311-31058.

08310-00057

$1.84

11

SPACER | TS50L

34972-31012

Unavailable

12

CASE, PILOT BULB | TS50L

34980-25610

Unavailable

13

BRACKET, PILOT BULB CASE | TS50L

34981-25710

Unavailable

14

SCREW | TS50L This part replaces 02111-04087.

02112-04087

$1.49

15

LOCK WASHER | TS50L This part replaces 08321-21048.

08321-0104A

$1.84

16

WASHER | TS50L

34181-25710

Unavailable

17

LEAD WIRE | TS50L

34175-26210

Unavailable

18

BULB, PILOT & NEUTRAL | TS50L; 6V, 3W

09471-06002

$2.25

19

BULB, TURN SIGNAL & HIGH BEAM | TS50L; 6V, 1.7W

09471-06001

$2.18

20

CABLE ASSY, SPEEDOMETER | TS50L This part replaces 34910-26030.

34910-21230

Unavailable
