1974 Suzuki TS50 Rear Wheel Diagram

← All diagrams

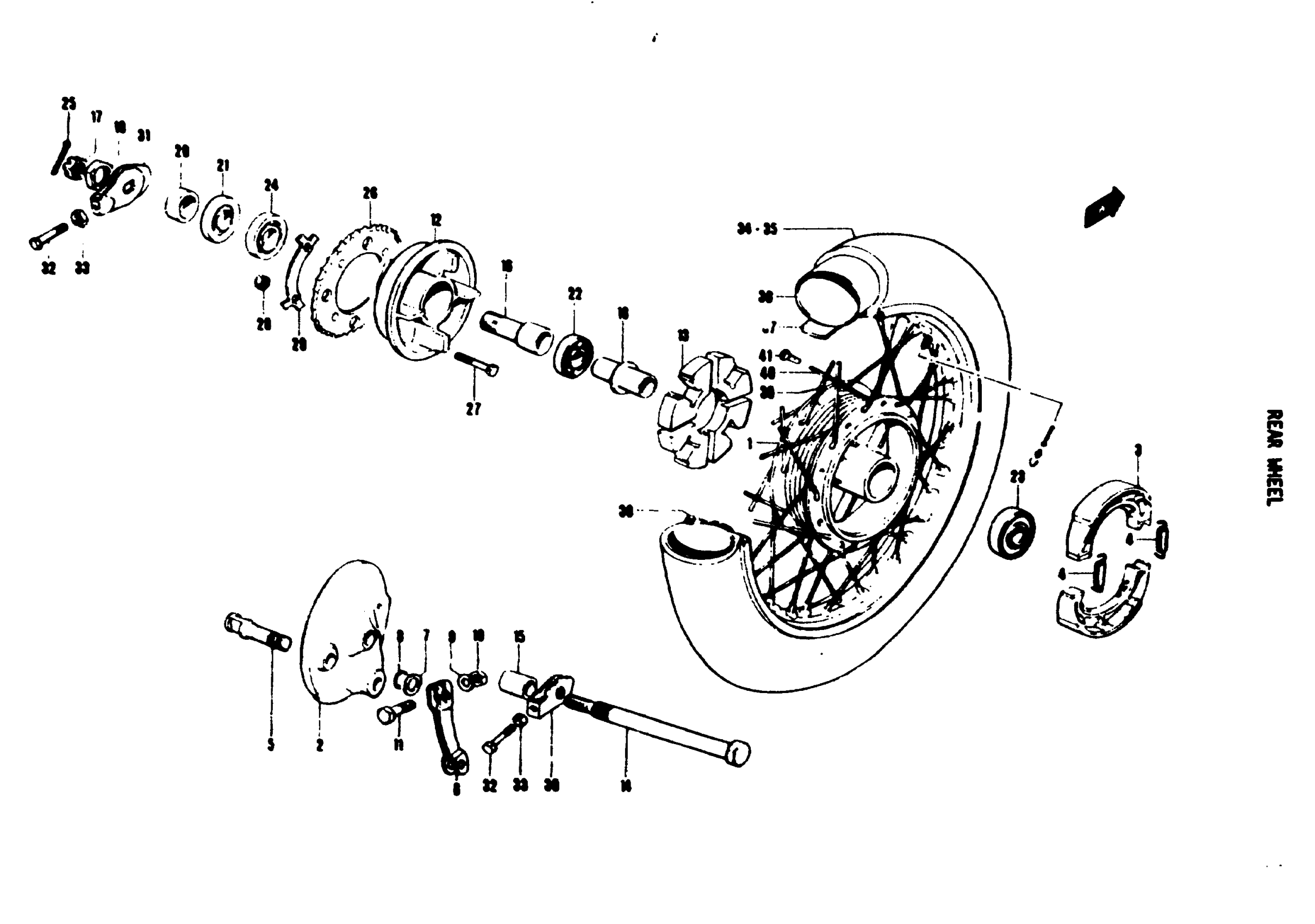

Find the part on the Rear Wheel diagram for your 1974 Suzuki TS50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Suzuki TS50 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 64110-01000.

64100-22820

1
Out of stock

2

PANEL, REAR HUB

64210-01004

1
Out of stock

3

SHOE/SPRING SET This part replaces 54410-01004.

54400-35860

2
Out of stock

4

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

5

SHAFT, BRAKE CAM

54441-28001

—
Out of stock

5

CAM, BRAKE This part replaces 54441-01001.

54441-01002

1
Out of stock

6

RR BRAKE LEVER This part replaces 64451-20000.

64451-20001

1
Out of stock

7

WASHER, DUST SEAL | 12.5x20x1

09160-12011

1
Out of stock

8

1

$3.25

In stock

9

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

10

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

11

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

1
Out of stock

12

DRUM, SPROCKET MOUNTING

64611-01000

—
Out of stock

13

ABSORBER,RR WHL This part replaces 64651-01000.

64651-010B1

1
Out of stock

14

AXLE,REAR This part replaces 64711-01603.

64711-35400

1
Out of stock

15

SPACER | 12.2x22x30.5

09180-12005

1
Out of stock

16

SHAFT, SPROCKET DRUM

64761-01000

1
Out of stock

17

NUT This part replaces 08314-11108.

08314-3110A

1
Out of stock

18

SPACER

64730-01000

1
Out of stock

19

NUT

09140-16005

1
Out of stock

20

SPACER | 17x25x10.5

09180-17004

1
Out of stock

21

SEAL,OIL | 25x40x6 This part replaces 09285-25001.

09285-25007

1
Out of stock

22

1

$10.66

In stock

23

1

$18.96

In stock

24

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

1
Out of stock

25

PIN This part replaces 04111-20308.

04111-2030A

1
Out of stock

26

SPROCKET,REAR,N | NT:39, OPT This part replaces 64511-01759.

64511-09402

1
Out of stock

26

SPROCKET, REAR | NT:42

64511-01789

1
Out of stock

26

SPROCKET, REAR | NT:34, OPT

64511-01751

1
Out of stock

26

SPROCKET,REAR,N | NT:35, OPT This part replaces 64511-01761.

64511-17201

1
Out of stock

26

SPROCKET, REAR | NT:40, OPT

64511-01799

1
Out of stock

26

SPROCKET,REAR,N | NT:37, OPT This part replaces 64511-01739.

64511-01800

1
Out of stock

27

BOLT

09105-08001

4
Out of stock

28

NUT

09140-08010

—
Out of stock

29

WASHER

09169-08011

2
Out of stock

30

ADJUSTER, CHAIN RH This part replaces 61410-27100.

61410-26000

1
Out of stock

31

ADJUSTER, CHAIN LH This part replaces 61420-27100.

61420-26000

1
Out of stock

32

BOLT

09104-06002

2
Out of stock

33

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

34

TIRE | @

65100-03011

—
Out of stock

35

TIRE | @,@,@

55100-26600

1
Out of stock

36

TUBE, INNER | 2.50-17

55200-03600

1
Out of stock

37

PROTECTOR, INNER TUBE This part replaces 55261-01010.

55261-02B40

1
Out of stock

38

RIM, WHEEL | 2.50-17

55311-07020

1
Out of stock

38

SPOKE ASSY REAR | @,@,@; Includes Item(s) 39 - 41 This part replaces 65300-03817.

65320-46730

1
Out of stock

39

SPOKE, INNER

65321-03020

—
Out of stock

40

SPOKE, OUTER

65322-03020

—
Out of stock

41

NIPPLE, SPOKE

65325-03020

—
Out of stock
