1974 Suzuki TS50 Front Fender - Cable Diagram

← All diagrams

Find the part on the Front Fender - Cable diagram for your 1974 Suzuki TS50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

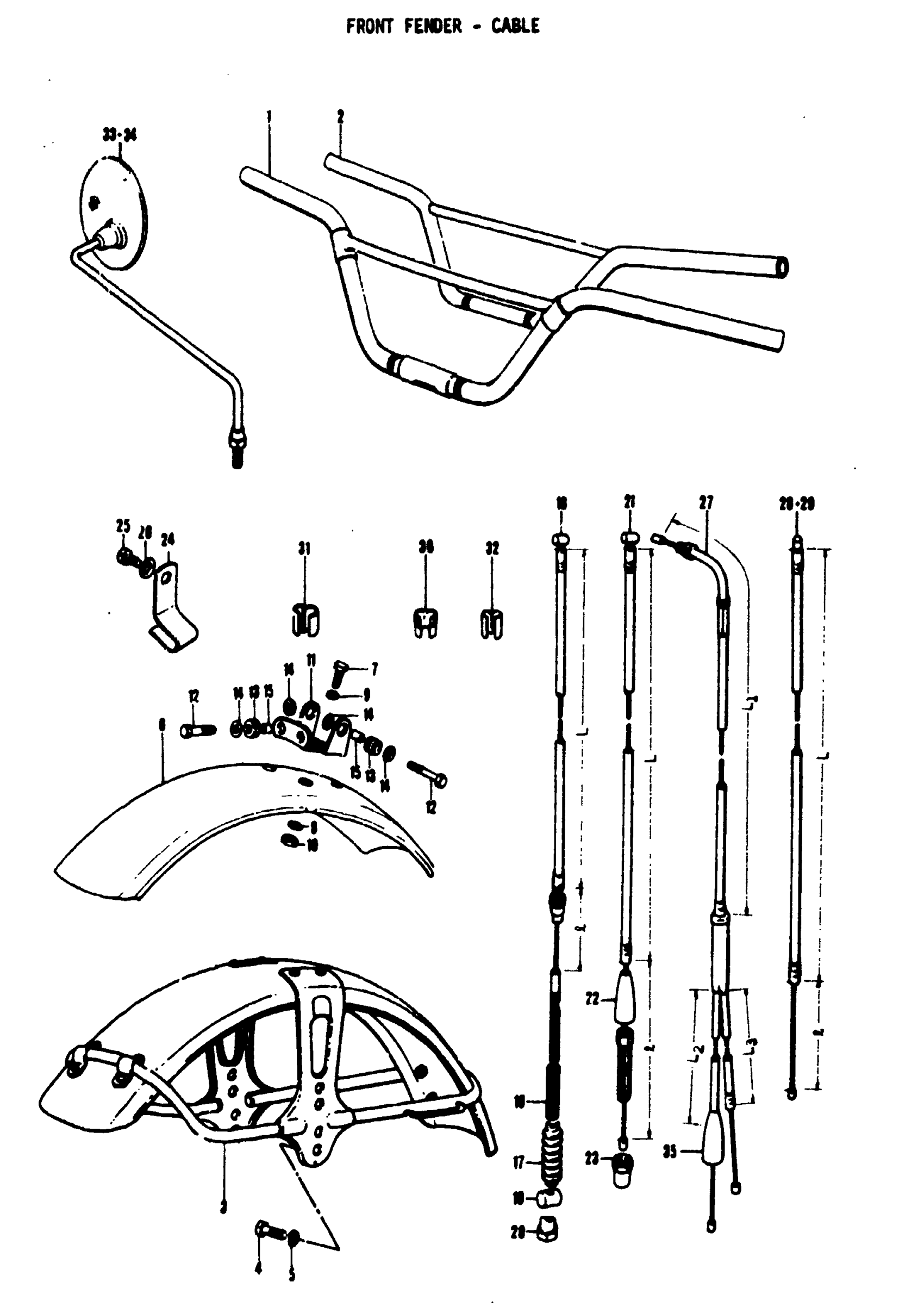

1974 Suzuki TS50 Front Fender - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | TS50,TS50,TS50 This part replaces 56110-25001.

56110-25003

1
Out of stock

2

NO DESCRIPTION AVAILABLE | TS50 This part replaces 56110-20202.

56110-20203

1
Out of stock

3

FENDER, FRONT | TS50; TO 53110-05601 This part replaces 53110-05600.

53110-05601

1
Out of stock

3

FENDER, FRONT | TS50

53110-05601

1
Out of stock

4

BOLT | TS50 This part replaces 01112-06108.

01500-06107

4
Out of stock

6

FENDER, FRONT | TS50

53110-26610-184

—
Out of stock

6

FENDER, FRONT | TS50

53110-26610-711

1
Out of stock

6

FENDER, FRONT | TS50

53110-26610-712

—
Out of stock

7

BOLT | TS50,TS50,TS50 This part replaces 01112-06128.

01500-06127

3
Out of stock

9

WASHER | TS50,TS50,TS50 This part replaces 08322-21068.

08322-01067

3
Out of stock

10

.NUT | TS50,TS50,TS50 This part replaces 08311-11068.

08310-00067

3
Out of stock

11

BRACE, FRONT FENDER | TS50,TS50,TS50

53211-26610

1
Out of stock

13

CUSHION (8.5X20X8) | TS50,TS50,TS50 This part replaces 09320-08007.

09320-08510

4
Out of stock

14

WASHER (6.5X20X1.2) | TS50,TS50,TS50; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

8
Out of stock

15

SPACER (6.5X9X7) | TS50,TS50,TS50; 7x9x7 This part replaces 09180-07005.

09180-06259

4
Out of stock

16

CABLE ASSY, BRAKE | L:1070, TS50:40; Includes Item(s) 17 - 20

58100-26000

1
Out of stock

17

DUST SEAL

09287-07001

1
Out of stock

18

SPRING

09440-06003

1
Out of stock

19

LEVER PIN

09209-10001

1
Out of stock

20

NUT

09150-05101

1
Out of stock

21

CABLE ASSY,CLUT | L:800, L:79; Includes Item(s) 22 - 23 This part replaces 58200-26000.

58200-26X00

1
Out of stock

22

SEAL,DUST This part replaces 09287-07002.

09287-07006

1
Out of stock

23

1

$1.93

In stock

24

CLAMP

09403-09304

1
Out of stock

25

BOLT | TS50,TS50 This part replaces 01112-06108.

01500-06107

1
Out of stock

27

CABLE, THROTTLE | TS50; L1:500, L2:320, L3:200 This part replaces 58300-26000.

58300-26X02

1
Out of stock

28

CABLE,STARTER | TS50,TS50,TS50; L:990, L:63 This part replaces 58410-19900.

58410-19X01

1
Out of stock

29

CABLE,STARTER | TS50; L:890, TS50:63 This part replaces 58410-01751.

58410-01X01

1
Out of stock

30

CLIP, CABLE A | TS50,TS50; L:25

09408-00001

2
Out of stock

30

CLIP, CABLE B | L:10

09408-00002

1
Out of stock

31

CLIP, CABLE C | L:10

09408-00003

—
Out of stock

32

CLIP, CABLE | TS50,TS50

09408-00005

1
Out of stock

33

MIRROR ASSY,RR | TS50,TS50,TS50 This part replaces 56500-31010.

56500-23412

1
Out of stock

33

MIRROR ASSY,RR | TS50,TS50,TS50 This part replaces 56600-31010.

56600-23412

1
Out of stock

34

MIRROR ASSY,REA | TS50 This part replaces 56500-35010.

56500-35611

2
Out of stock

35

SEAL,DUST This part replaces 09287-07002.

09287-07006

1
Out of stock
