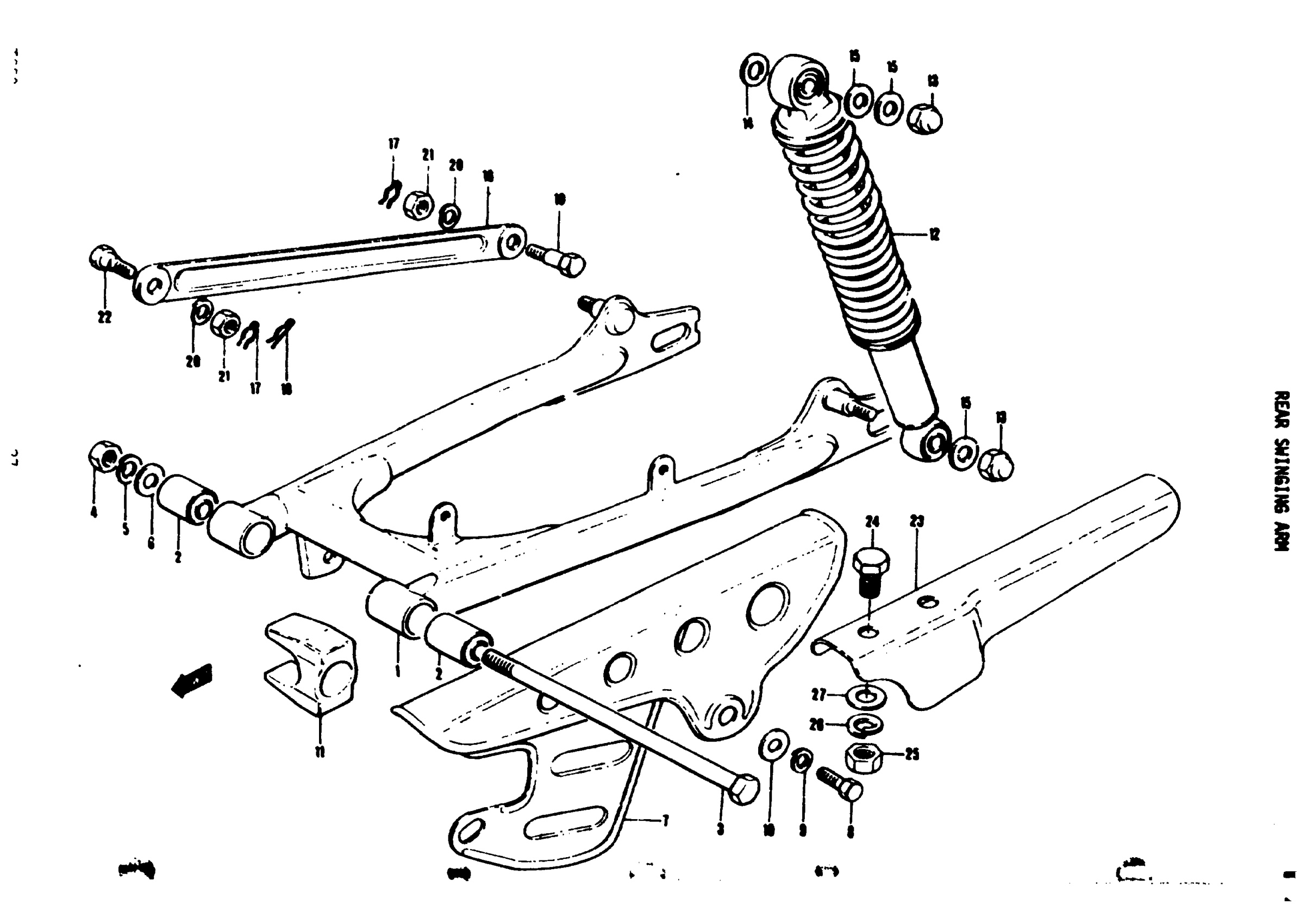

Suzuki TS50 (1974) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR | Includes Item(s) 2

61100-26820-019

Unavailable

2

BUSHING

09319-10009

$7.62

3

SHAFT, PIVOT

61211-25001

Unavailable

4

NUT This part replaces 08311-11108.

08310-00107

$2.19

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

WASHER This part replaces 08322-21108.

08322-01107

$2.15

7

CASE, CHAIN

61311-26000-126

Unavailable

8

BOLT | 6x8

09100-06011

$1.67

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

BUFFER

61273-26000

Unavailable

12

SHOCK ABSORBER, REAR | TS50,TS50,TS50

62100-26010

Unavailable

12

SHOCK ABSORBER, REAR | TS50

62100-26011-126

Unavailable

13

NUT This part replaces 08313-11107.

08313-10107

$2.50

14

WASHER This part replaces 08322-11128.

08322-01127

$1.84

15

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

16

TORQUE LINK, REAR | TS50,TS50,TS50; TO 64310-27200

64310-21200

Unavailable

16

TORQUE LINK, REAR | TS50

64310-27200

Unavailable

17

CLIP, TORQUE LINK | TS50,TS50

09384-06001

$1.49

18

CLIP This part replaces 09385-10001.

09385-10005

$1.56

19

BOLT, REAR BRAKE PANEL

09111-08013

$3.04

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT, TORQUE LINK

09140-08008

$1.49

22

BOLT, TORQUE LINK FRONT

09111-08012

$3.78

23

END, CHAIN CASE | OPT

61331-30000

Unavailable

24

BOLT | OPT This part replaces 01112-06108.

01500-06107

$2.06

25

.NUT | OPT This part replaces 08311-11068.

08310-00067

$2.13

26

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

27

WASHER | OPT This part replaces 08322-21068.

08322-01067

$2.13
